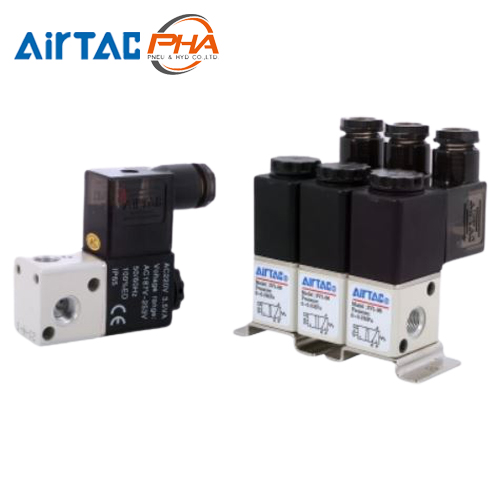

AirTAC - Solenoid Valve วาล์วควบคุมทิศทางหรือโซลินอยด์วาล์ว รุ่น 3V1 Series

วาล์วควบคุมทิศทาง รุ่น 3V1 Series / โซลินอยด์วาล์ว รุ่น 3V1 Series

Download PDF: 3V1 Series

Features | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series

วาล์วควบคุมทิศทางหรือ โซลินอยด์วาล์ว รุ่น 3V1 (3V1 Series) แบบลูกเต๋า ชนิด 3/2 ทาง Solenoid Valve (3/2 Way)

• Direct acting type and normally closed mode, flexible in direction change
• No need to add oil for lubrication
• Several valves can be installed integrately to save installation space
• Affiliated manual devices are quipped to facilitate installation and debugging
• Several standard voltage grades are optional

---

สัญลักษณ์ (Symbol) | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series

---

Specifications | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series

Model	3V1-M5	3V1-06
Fluid	Air (to be filtered by 40µm filter element)
Acting	Direct acting
Port size (1)	M5	1/8"
Valve type	3 port 2 position
Lubrication	Not required
Operating pressure	0~0.8 MPa (0~114 psi)
Proof pressure	1.5 MPa (215 psi)
Temperature	-20~70 °C
Orifica size	ϕ 1.2 mm
Material of body	Aluminum alloy

(1): PT thread and G thread are available.

---

Coil Specifications | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series

Item	Specifications
Standard Voltage	AC220V, AC110V, AC24V, DC24V, DC12V
Scope of Voltage	AC: ±15% DC: ±10%
Power Consumption	AC: 3.5VA DC: 3.0W
Protection	IP65 (DIN40050)
Temperature classification	B Class
Electrical entry	Terminal, Grommet
Activating time	0.05 sec and below
Max. frequency (1)	10 Cycle/sec

(1) The maximum actuation frequency is in the no-load state.

---

Ordering code | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series

Example : 3V1-M5 / 3V1-06

How to Select: 3V₍₁₎ 1₍₂₎ 06₍₃₎ A₍₄₎ [ ]₍₅₎ P₍₆₎

(1) Model	(2) Code	(3) Port Size	(4) Voltage	(5) Electrical entry	(6) Thread type
3V: Solenoid (3/2 way)	1: 1 series	M5: M5 06: 1/8"	A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V	Blank: Terminal I: Grommet	P: PT T: NPT G: G

---

Inner structure | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series

NO.	Item
1	Connector
2	Gasket
3	Coil nut
4	Coil
5	Armature
6	O-ring
7	Return spring
8	Body

---

Flow chart | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series

---

Dimensions | AirTAC Solenoid Valve โซลินอยด์วาล์ว 3V1 Series
