AirTAC - วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Download PDF: GZ Series

Features | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

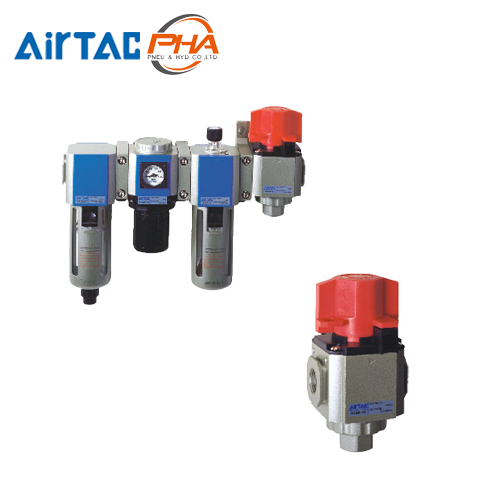

1. It's module design and can be used with G series F.R.L. combination by bracket
2. This valve can be used as manual 3/2 way valve.
3. Visual indication marked EXH/SUP.
4. This valve meets the standard on installation conducted by operator specified by OSHA (Occupational Safety & Health Administration). When the machinery is maintained and serviced, the purge valve (Safe on-off valve) for remaining pressure shall be used to eliminate the remaining pressure when the air source is cut off. Valve must be locked to prevent accidental operation by a third party during maintenance. This prevents accidental system pressurization & cylinder actuation which can result in injuries to the machine operator.

---

สัญลักษณ์ (Symbol) | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

---

Specifications | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Model	GZ200-06	GZ200-08	GZ300-08	GZ300-10	GZ300-15	GZ400-10	GZ400-15
Fluid	Air
Port size	1/8"	1/4"	1/4"	3/8"	1/2"	3/8"	1/2"
Exhaust port size	1/4"		3/8"			1/2"
Acting type	Manual
Valve type	3 port 2 way
Pressure range	0~0.9 MPa (0~130 psi)
Proof pressure	1.5 MPa (215 psi)
Temperature range	-20~70 °C
Operation angle	90°
Suitable F.R.L type	GC200-06	GC200-08	GC300-08	GC300-10	GC300-15	GC400-10	GC400-15

---

Ordering code | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Ordering code for manifold

Example : GZ200-10 / GZ200-10 / GZ300-10

How to Select: GZ300₍₁₎ 10₍₂₎ [ ]₍₃₎

(1) Model	(2) Port size	(3) Thread type
GZ200: 200 Series soft on-off valve	06: 1/8"	Blank: PT T: NPT G: G
	08: 1/4"
GZ300: 300 Series soft on-off valve	08: 1/4"
	10: 3/8"
	15: 1/2"
GZ400: 400 Series soft on-off valve	10: 3/8"
	15: 1/2"

Note: When it is used with F.R.L. combination, extra mounting bracket needed. Please refer to P148 for order detail.

---

Inner structures | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

No.	Item	No.	Item
1	Valve cap	8	O-ring
2	Body	9	Cover
3	Screw	10	Spool
4	Operating screw	11	Plug
5	Adjisting screw	12	Spring
6	Special csrew	13	O-ring
7	Fixing plate	14	Cover

---

Dimensions | AirTAC วาล์วระบายลม (On-Off Valve) รุ่น GZ Series

Item\Model	GZ200		GZ300			GZ400
	06	08	08	10	15	10	15
A	47		60			75
AB	42		55			65
B	52.6		70.7			83.9
BA	30		41			50
BC	40		53.5			64
BD	42.5		56.5			66
C	89		112.5			134
K	5.5		6.5			8.5
KA	27		40			55
KB	8.5		8			11
KC	23		27			33.5
P	1/8"	1/4"	1/4"	3/8"	1/2"	3/8"	1/2"
PA	36.5		46			58.5
Q	1/4"		3/8"			1/2"
