แมคคานิควาล์ว Mechanical Valve แบบต่างๆ CM3 Series

วาล์วเท้าเหยียบ ชนิด 3/2 ทาง Foot Valve (3/2 Way) อุปกรณ์นิวเมติกส์ Pneumatics สินค้าแบรน AirTAC ของแท้จากประเทศไต้หวัน

Direct acting and normally closed type
The 3F series has aluminum foot pedal and 3FM series has plastic foot pedal, in direct acting type, horizontal and compact structure
If the duration of direction-change is long, the valves with lock may be selected
The clamping framework is stready and reliable that it is easy and quick to unlock. However

Model	CM3[ ]-05	CM3[ ]-06	CM3[ ]-08
Operating	External Control
Fluid	Air (to be filled by 40µm filter element)
Pressure range	0~10.0 bar)
Proof pressure	1.5 MPa (215 psi) (15.0 bar)
Temperature	-20~70 °C
Valve type	3 port 2 position
Orifice size	2.0 mm²	2.5 mm²	15.0 mm²
Cv value	0.11	0.14	0.84
Port size (1)	M5x0.8	1/8"	1/4"
Material of body	Aluminium

Example: CM3PP06BP

How to select: CM3₍₁₎ PP₍₂₎ 06₍₃₎ B₍₄₎ P₍₅₎

(1) Valve's type	(2) Model	(3) Port size	(4) Button color	(5) Thread type
CM3: CM type 3/2 way	B: Basic type	05: M5 06: 1/8" 08: 1/4"	No option for bottom color	P: PT T: NPT G: G
	R: Roller type
	L: Roller with free return type
	V: vertical roller type
	Y: Lever type
	PL: Latching type (only red)		R: Red
	PP: Protruding type		R: Red G: Green B: Black Y: Yellow
	PF: Flat type
	PM: Mushroom type
	HS: Selector type
	HD: Double-selector type

(1) When the thread is M5 type, the code is blank.

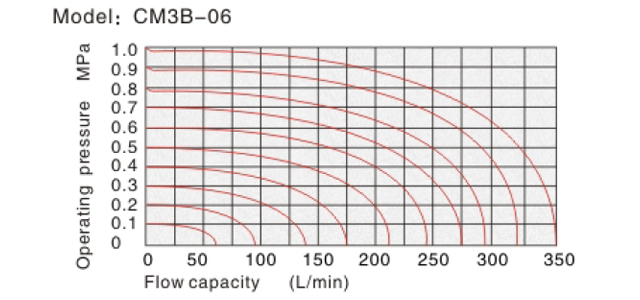

Inner AirTAC Mechanical Valve CM3 Series
