SMC - Standard Air Cylinders (Square Cove)
SMC - Standard Air Cylinders (Square Cover)
มีทั้งหมด 13 รุ่น คือ

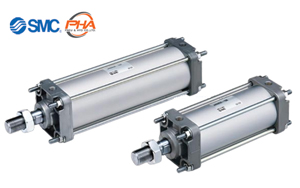

1) Air Cylinder JMB / JMDB
Features | Air Cylinder JMB / JMDB
- Intermediary bore sizes: ø45, ø56, ø67, ø85 Air saving, Space saving
- Overall length shortened by 27 mm
- Weight reduced by up to 36% (1.56 kg→1.00 kg)
- Air saving: Reduced by up to 29%
Air consumption can be reduced by optimal size selection. - Reduces labor time
Air cushion adjustment is not required due to the non-adjustable air cushion. - With auto switch (JMDB series: JMDB)
- A foot type and a flange type have been added. (ø32, ø40, ø50, ø63, ø80, ø100)
Specifications | Air Cylinder JMB / JMDB
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | JMDB | Double acting, Single rod | 32, 40, 45, 50, 56, 63, 67, 80, 85, 100 |

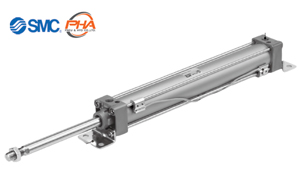

2) Air Cylinder MB / MDB
Features | Air Cylinder MB / MDB
- Weight has been reduced by changing the shape of the rod cover and head cover. Max. 10% lighter
- Part numbers with a rod end bracket and/or pivot bracket are available.
- (It is not necessary to order a bracket for the applicable cylinder separately.)
- With auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDB□Q)
Specifications | Air Cylinder MB / MDB
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | MB-Z | Double acting, Single rod | 32, 40, 50, 63, 80, 100, 125 |
| Standard | MBW-Z | Double acting, Double rod | 32, 40, 50, 63, 80, 100, 125 |
| Non-rotating rod | MBK-Z | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
| Non-rotating rod | MBKW-Z | Double acting, Double rod | 32, 40, 50, 63, 80, 100 |
| With end lock | MBB | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
| Low friction | MB□Q | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
3) Air Cylinder/Compact Type MB-X3155
Features | Air Cylinder/Compact Type MB-X3155
- Now, more compact and lightweight due to the adoption of a octagonal piston!
- Weight: 35% reduction (750 g→487 g)
- Overall length: 16% reduction (189 mm→158 mm)
- Height Width: 10% reduction (52 mm→47 mm)
- Air cushion adjustment is not required due to the non-adjustable air cushion. The built-in rubber bumper reduces the metal noise that occurs when the piston stops.
- Small auto switches can be mounted on 4 surfaces. (Tie-rod mounting) Applicable auto switch: D-M9m
Specifications | Air Cylinder/Compact Type MB-X3155
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | MB-X3155 | Double acting single rod | 40, 63 |
4) Compact Cylinder/Double Force Type MB-X3157
Features | Compact Cylinder/Double Force Type MB-X3157
- This product is capable of providing double the force of the MB series, without changing the width, due to the adoption of a rectangular piston.
- Overall length: 47% reduction* (335 mm→179 mm)
- Weight: 20% reduction* (1500 g→1200 g)
- * Compared with the existing tandem type cylinder -XC12 (double force), ø 40, 50 mm stroke
- Small auto switches can be mounted on 4 surfaces. (Tie-rod mounting)
- Air cushion adjustment is not required due to the nonadjustable air cushion.
- Cover shape that prevents foreign matter accumulation
Specifications | Compact Cylinder/Double Force Type MB-X3157
| Type | Series | Action | Size |
|---|---|---|---|
| Standard | MB-X3157 | Double acting single rod | 57 (Equiv. ø40 x 2 piston area) |

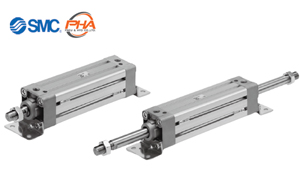

5) Air Cylinder MB1 / MDB1
Features | Air Cylinder MB1 / MDB1
- Weight: 10% lighter (ø50-100 stroke) Weight has been reduced by changing the shape of the rod cover and head cover.
- Small auto switches can be mounted on 4 surfaces.
- Fastener on auto switch mounting groove for dust-prevention (Option)
- With auto switch (MDB1 series: MDB1, MDB1W, MDB1K)
Specifications | Air Cylinder MB1 / MDB1
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | MB1-Z | Double acting, Single rod | 32, 40, 50, 63, 80, 100, 125 |
| Standard | MB1W-Z | Double acting, Double rod | 32, 40, 50, 63, 80, 100, 125 |
| Non-rotating rod | MB1K-Z | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |

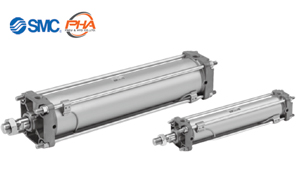

6) Air Cylinder CA2 / CDA2
Features | Air Cylinder CA2 / CDA2
- Weight reduced by up to 15%
- Easy air cushion control
- Various switches, such as compact auto switches and magnetic field resistant auto switches, can be mounted.
- Part numbers with a rod end bracket and/or pivot bracket are available.
- (It is not necessary to order a bracket for the applicable cylinder separately.)
- With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDBA2, CDA2□H, CDA2W□H, CDA2□Q)
Specifications | Air Cylinder CA2 / CDA2
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CA2-Z | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Standard | CA2W-Z | Double acting, Double rod | 40, 50, 63, 80, 100 |
| Non-rotating rod | CA2K | Double acting, Single rod | 40, 50, 63 |
| Non-rotating rod | CA2KW | Double acting, Double rod | 40, 50, 63 |
| With end lock | CBA2 | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2□H | Double acting, Single rod | 40, 50, 63, 80, 100 |
| Air-hydro | CA2W□H | Double acting, Double rod | 40, 50, 63, 80, 100 |
| Low friction | CA2□Q | Double acting, Single rod | 40, 50, 63, 80, 100 |

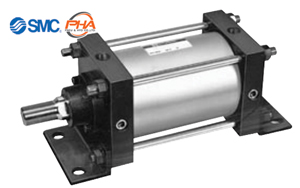

7) Air Cylinder CS1 / CDS1
Features | Air Cylinder CS1 / CDS1
- Weight reduced by up to 15%
- Easy air cushion control
- Various switches, such as compact auto switches and magnetic field resistant auto switches, can be mounted.
- Part numbers with a rod end bracket and/or pivot bracket are available.
- (It is not necessary to order a bracket for the applicable cylinder separately.)
- With auto switch (CDA2 series: CDA2, CDA2W, CDA2K, CDA2KW, CDBA2, CDA2□H, CDA2W□H, CDA2□Q)
Specifications | Air Cylinder CS1 / CDS1
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CS1 | Double acting, Single rod | 125, 140, 160, 180, 200, 250, 300 |
| Standard | CS1W | Double acting, Double rod | 125, 140, 160, 180, 200, 250, 300 |
| Low friction | CS1□Q | Double acting, Single rod | 125, 140, 160 |

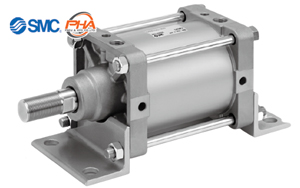

8) Air Cylinder CS2 / CDS2
Features | Air Cylinder CS2 / CDS2
- Weight has been reduced by a maximum of 58% compared to the CS1 series.
- With auto switch (CDS2 series: CDS2)
Specifications | Air Cylinder CS2 / CDS2
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CS2 | Double acting, Single rod | 125, 140, 160 |
| Standard | CS2W | Double acting, Double rod | 125, 140, 160 |

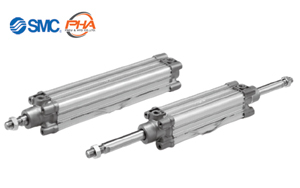

9) ISO Cylinder CP96 / CP96SD (Light Weight)
Features | ISO Cylinder CP96 / CP96SD
- Compliant with ISO Standards (15552)
- Lightweight: Max. 15% reduction
- Cycle time shortened by adopting a new cushion method (Air cushion + Bumper cushion)
- The bumper cushion reduces the metal noise that occurs when the piston stops.
Specifications | ISO Cylinder CP96 / CP96SD
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CP96 | Double acting, Single rod Double acting, Double rod |
32, 40, 50, 63, 80, 100 |
| Non-rotating rod | CP96K | Double acting, Single rod Double acting, Double rod |
32, 40, 50, 63, 80, 100 |

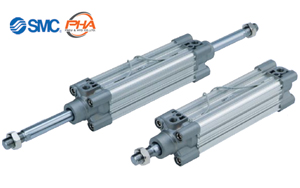

10) ISO Standard Air Cylinder CP96 / CP96SD
Features | ISO Standard Air Cylinder CP96 / CP96SD (Size 125)
- Compliant with ISO Standards (15552)
- Cushion valve can easily be adjusted.
- CNOMO, D-M9□, and A9□ grooves located on 4 surfaces
- With auto switch (CP96SD series: CP96SD, CP96KD)
- * The CP96 series (ø32 to ø100) has been remodeled. Please select the new CP96 series.
Specifications | ISO Standard Air Cylinder CP96 / CP96SD
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CP96 | Double acting, Single rod Double acting, Double rod |
125 |

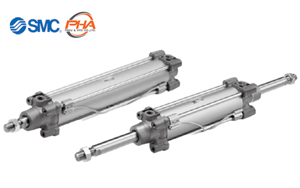

11) ISO Standard Air Cylinder C96 / C96SD (Light Weight 17)
Features | ISO Standard Air Cylinder C96 / C96SD
- Compliant with ISO Standards (15552)
- Lightweight: Max. 17% reduction
- Cycle time shortened by adopting a new cushion method (Air cushion + Bumper cushion)
- The bumper cushion reduces the metal noise that occurs when the piston stops.
Specifications | ISO Standard Air Cylinder C96 / C96SD
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | C96 | Double acting, Single rod Double acting, Double rod |
32, 40, 50, 63, 80, 100 |
| Non-rotating rod | C96K | Double acting, Single rod Double acting, Double rod |
32, 40, 50, 63, 80, 100 |
| Smooth cylinder | C96Y | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |

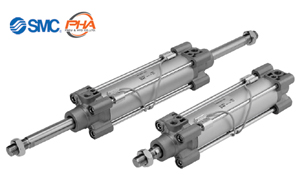

12) ISO Standard Air Cylinder C96 / C96SD (125)
Features | ISO Standard Air Cylinder C96 / C96SD
- Compliant with ISO Standards (15552)
- Cushion valve can easily be adjusted.
- With auto switch (C96SD series: C96SD, C96KD, C96YD)
- * The C96 series (ø32 to ø100) has been remodeled. Please select the new C96 series.
Specifications | ISO Standard Air Cylinder C96 / C96SD
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | C96 | Double acting, Single rod Double acting, Double rod |
125 |

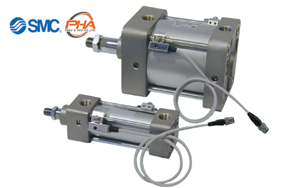

13) NFPA Cylinder NCA1
Features | NFPA Cylinder NCA1
- Replaceable Rod Gland
- A full range of NFPA interchangeable mounting configurations
- Available in three construction types: Aluminum, Steel, and Stainless Steel
- Composite fiber tube optional
- Fully adjustable cushion
Specifications | NFPA Cylinder NCA1
| Type | Series | Action | Bore size (in) |
|---|---|---|---|
| Standard | NCA1 | Double acting single rod | 1.5", 2", 2.5", 3.25", 4" |
| Standard | NCA1W | Double acting double rod | 1.5", 2", 2.5", 3.25", 4" |
| Non-rotating rod | NCA1K | Double acting single rod | 1.5", 2", 2.5" |
