มีทั้งหมด 4 รุ่น คือ
1) Mechanically Jointed Rodless Cylinder MY1
Features | Mechanically Jointed Rodless Cylinder MY1
- With 5 standardized guide types
- A variety of applications are available based on the load mass and required accuracy.
Specifications | Mechanically Jointed Rodless Cylinder MY1
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Basic | MY1B | Double acting | 10, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Slide bearing | MY1M | Double acting | 16, 20, 25, 32, 40, 50, 63 |
| Cam follower guide | MY1C | Double acting | 16, 20, 25, 32, 40, 50, 63 |
| Linear guide | MY1H | Double acting | 10, 16, 20, 25, 32, 40 |
| Linear guide | MY1HT | Double acting | 50, 63 |
2) Mechanically Jointed Rodless Cylinder with Protective Cover MY1□W
Features | Mechanically Jointed Rodless Cylinder with Protective Cover MY1□W
Improves dustproof and water resistance with a protective cover, Features a side seal that prevents dust and water from entering from the side
ดาวน์โหลดไฟล์ PDFSpecifications | Mechanically Jointed Rodless Cylinder with Protective Cover MY1□W
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Slide bearing | MY1MW | Double acting | 16, 20, 25, 32, 40, 50, 63 |
| Cam follower guide | MY1CW | Double acting | 16, 20, 25, 32, 40, 50, 63 |

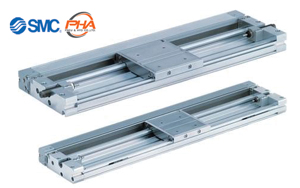

3) Mechanically Jointed Rodless Cylinder MY2
Features | Mechanically Jointed Rodless Cylinder MY2
Height has been reduced by a maximum of 30% compared to the mechanically jointed rodless cylinder, MY1H series. Furthermore, it is possible to replace the cylinder for the drive unit while the workpiece is mounted.
ดาวน์โหลดไฟล์ PDFSpecifications | Mechanically Jointed Rodless Cylinder MY2
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Cam follower guide | MY2C | Double acting | 16, 25, 40 |
| Linear guide | MY2H | Double acting | 16, 25, 40 |
| Linear guide | MY2HT | Double acting | 16, 25, 40 |
4) Mechanically Jointed Rodless Cylinder MY3
Features | Mechanically Jointed Rodless Cylinder MY3
Space saving: Height has been reduced by a maximum of 36% and length by a maximum of 140 mm (Compared to the mechanically jointed rodless cylinder, MY1B series)
ดาวน์โหลดไฟล์ PDFSpecifications | Mechanically Jointed Rodless Cylinder MY3
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Basic / Short (Rubber bumper) |
MY3A | Double acting | 16, 20, 25, 32, 40, 50, 63 |
| Basic / Standard (Air cushion) |
MY3B | Double acting | 16, 20, 25, 32, 40, 50, 63 |
| Side bearing guide (Air cushion) |
MY3M | Double acting | 16, 25, 40, 63 |
