SMC - Auto Switches
SMC - Auto Switches
มีทั้งหมด 4 รุ่น คือ

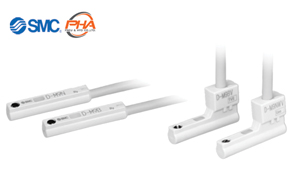

1) Auto Switches D
Features | Auto Switches D
- 2-wire load current is reduced (2.5 to 40 mA).
- Using flexible cable as standard spec.
Specifications | Auto Switches D
| Series | Type | Features |
|---|---|---|
| D Series | Solid state auto switch | General purpose type 2-color indicator 2-color indicator with diagnostic output Water resistant 2-color indicator Hygienic With timer Magnetic field resistant 2-color indicator Heat resistant 2-color indicator Wide range detection type |
| D Series | Reed auto switch | General purpose type 2-color indicator Magnetic field resistant 2-color indicator Heat resistant |
2) Solid State Auto Switch / Short Type D-M9□-5
Features | Solid State Auto Switch / Short Type D-M9□-5
- Overall length reduced by 32% (22 mm→15 mm)
- Protrusion from the actuator end surface has been reduced.
- Specifications are the same as those of the standard product (D-M9□).
Specifications | Solid State Auto Switch / Short Type D-M9□-5
| Series | Type | Features |
|---|---|---|
| D-M9□-5 | Solid state auto switch | General purpose type |

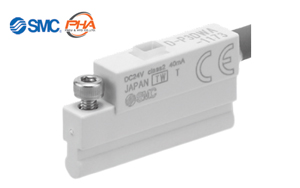

3) Arc Welding Spatter-resistant Lead Wire Type Magnetic Field-resistant Solid State Auto Switch D-P3DWA□-1173□
Features | Arc Welding Spatter-resistant Lead Wire Type Magnetic Field-resistant Solid State Auto Switch D-P3DWA□-1173□
- Improved lead wire spatter resistance Special fluorine compounds are used for the sheath, insulation, and insulator. A shield is provided between the sheath and the insulation to prevent spatter from entering the insulation.
- A type with a spatter cover is available. The metal cover (Material: Stainless steel) covers the body to prevent spatter adhesion.
Specifications | Arc Welding Spatter-resistant Lead Wire Type Magnetic Field-resistant Solid State Auto Switch D-P3DWA□-1173□
| Series | Type | Features |
|---|---|---|
| D-P3DWA□-1173□ | Solid state auto switch | Magnetic field resistant |

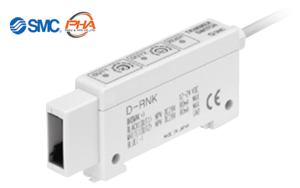

4) Trimmer Auto Switch D
Features | Trimmer Auto Switch D
- Easily distinguish workpieces with a single auto switch
- Minimum detectable adjustment width: 0.5 mm
- Applicable to the short stroke cylinder The detection of the extended and retracted end positions can be made by a single auto switch. This switch can be used when two auto switches cannot be mounted due to a short stroke.
Specifications | Trimmer Auto Switch D
| Series | Type | Mounting |
|---|---|---|
| D-M9K | Sensor unit | Direct mounting (Round groove) |
| D-Y7K | Sensor unit | Direct mounting (Square groove) |
| D-F7K | Sensor unit | Rail mounting |
| D-R□K | Amplifier unit | - |
