มีทั้งหมด 7 รุ่น คือ

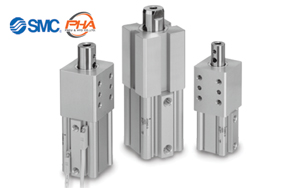

1) For High Precision Positioning: Pin Shift Cylinder CKQG-X2370 / CKQP-X2371
Features | For High Precision Positioning: Pin Shift Cylinder CKQG-X2370 / CKQP-X2371
- High Precision: Rod end deflection of ±0.1 mm or less
- Position reproducibility
- Pins for positioning the workpiece provided by the customer can be directly mounted.
- Built-in coil scraper
- Reduces labor time by integrating the cylinder and guide
- Magnetic field resistant auto switches are mountable.
Specifications | For High Precision Positioning: Pin Shift Cylinder CKQG-X2370 / CKQP-X2371
| Type | Series | Bore size (mm) | Stroke (mm) |
|---|---|---|---|
| Built-in standard magnet | CKQG-X2370 | 32, 40, 50 | 25, 30, 40, 50 |
| Built-in strong magnet | CKQP-X2371 | 50 | 30, 50 |

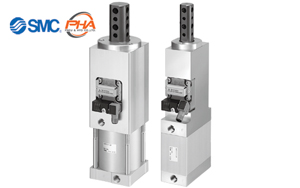

2) Shot Pin Cylinder CKZP
Features | Shot Pin Cylinder CKZP
- High precision With rod extended
- Deflection of ±0.1 mm or less
- Non-rotational accuracy: ±0.1 mm or less
- Positioning repeatability
- Positioning accuracy: ±0.05 mm
- Distance accuracy: ±0.1 mm
- High output
- Retract force: 1764 N
- Extending force: 2362 N
- Mounting Based on NAAMS Standard (71 mm bore)
Specifications | Shot Pin Cylinder CKZP
| Series | Bore size (mm) | Stroke (mm) |
|---|---|---|
| CKZP | 57, 71 | 25, 50 |

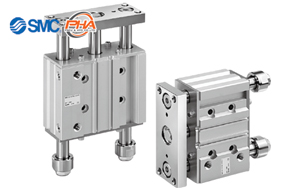

3) Locating Pin Cylinder MGPL50-X2616
Features | Locating Pin Cylinder MGPL50-X2616
- Ideal for pin positioning and locating workpieces
- Highly accurate mounting positions Highly accurate positioning is possible even after the cylinder is replaced.
- D-P3DWA magnetic field resistant auto switch is available.
- Coil scraper is equipped as standard.
Specifications | Locating Pin Cylinder MGPL50-X2616
| Type | Bearing | Series | Action | Bore size (mm) |
|---|---|---|---|---|
| Locating pin cylinder | Ball bushing | MGPL50-X2616 | Double acting | 25, 40, 65 |
4) Offset Pin Shift Cylinder CDQ2B-X2839
Features | Offset Pin Shift Cylinder CDQ2B-X2839
- With high rigidity offset load capacity
- High rigidity, High precision, With plate extended: Deflection of ±0.1 mm or less
- 3 different port location directions can be selected.
- Can be mounted from 2 directions
- Coil scrapers equipped as standard
- Auto switches are mountable.
Specifications | Offset Pin Shift Cylinder CDQ2B-X2839
| Type | Series | Bore size (mm) | Stroke (mm) |
|---|---|---|---|
| Offset pin shift cylinder | CDQ2B-X2839 | 32, 40, 50 | 25, 50, 75 |

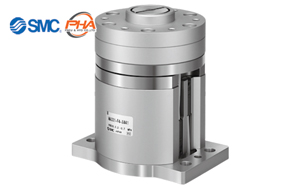

5) Center Lock Unit MA331-X441
Features | Center Lock Unit MA331-X441
- The workpiece contact portion of the locating pin can switch from center lock (for locating) to free (for releasing workpieces).
- Even if the workpiece is distorted after welding, if the locating pin is set to free, the workpiece can be removed easily from the locating pin.
- Locating pin swing angle and rotation angle: 3° ±1°
Specifications | Center Lock Unit MA331-X441
| Series | Action | Handling air pressure |
|---|---|---|
| MA331-X441 | Double acting | 0.2 to 0.7 MPa |

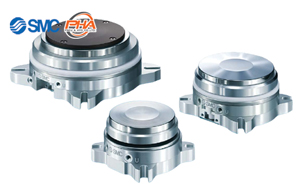

6) Centering Unit MACM
Features | Centering Unit MACM
- Alignment and positioning of transferred workpieces. Contributes to space saving on conveyor lines
- Table
- Max. allowable load weight: 1000 kg (MACM10)
- Workpieces can be moved in any direction: forward/backward, right/left, at an angle, and even rotated (360º).
- Ball bearings allow for smooth operation.
- Table centering accuracy ±1 mm or less (Workpiece not loaded)
- Table center movable range Max. ø100 mm (MACM10-50)
Specifications | Centering Unit MACM
| Series | Action | Max. allowable load weight kN | Stroke (mm) |
|---|---|---|---|
| MACM | Double acting | 2, 4, 6, 10 | 12, 20, 30, 50 |

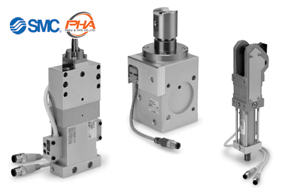

7) Other Pin Shift Cylinders
Series | Other Pin Shift Cylinders
- Pin Clamp Cylinder (Compact body type): Series CKU
- Pin-Shift Cylinder: Series CKQR
- Plate Clamp Cylinder: Series M(D)UKA
- Clamp Cylinder: Series CKGV
- Pin-Shift Cylinder: Series CKZP
Specifications | Other Pin Shift Cylinders
| Description | Series |
|---|---|
| Pin Shift Cylinder | CKQR |
| Pin Shift Cylinder | CKZP |
