SMC - Process Pumps
Process Pumps
มีทั้งหมด 5 รุ่น คือ

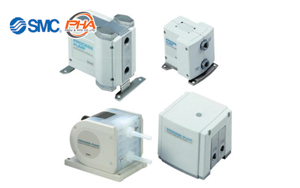

1) Process Pump/Double Acting Pump PA / PAP / PAX
Features | Process Pump/Double Acting Pump PA / PAP / PAX
- High abrasion resistance and low particle generation
- No sliding parts in wetted areas.
- Self-priming makes priming unnecessary
- Exhausts the air inside the suction pipe to suck up liquid.
Specifications | Process Pump/Double Acting Pump PA / PAP / PAX
| Series | Actuation | Discharge rate (L/min) | Wetted parts material |
|---|---|---|---|
| PA3☐☐0 | Automatically operated type | 1 to 20 | ADC12 (Aluminum) SCS14 (Stainless steel) |
| PA3☐13 | Air operated type | 0.1 to 12 | ADC12 (Aluminum) SCS14 (Stainless steel) |
| PA5☐☐0 | Automatically operated type | 5 to 45 | ADC12 (Aluminum) SCS14 (Stainless steel) |
| PA5☐13 | Air operated type | 1 to 24 | ADC12 (Aluminum) SCS14 (Stainless steel) |
| PAP3310 | Automatically operated type | 1 to 13 | New PFA (Fluororesin) |
| PAP3313 | Air operated type | 0.1 to 9 | New PFA (Fluororesin) |
| PAX1☐12 | Automatically operated type Built-in pulsation attenuator |
0.5 to 10 | ADC12 (Aluminum) SCS14(Stainless steel) |

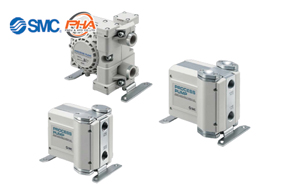

2) Process Pump PA5000
Features | Process Pump PA5000
- Now with compact / energy saving / high-dispense-volume body material polypropylene (PP)!
- Compact: 185 x 134 x 202 (H x W x D) (mm)
- Lightweight: 3.0 kg (Polypropylene)
- Fluid contact body material: Selectable from PP (polypropylene), aluminum or stainless steel
- Automatically operated type and air operated type are available.
- Self-priming makes priming unnecessary
Specifications | Process Pump PA5000
| Series | Actuation | Discharge rate (L/min) | Wetted parts material |
|---|---|---|---|
| PA50☐☐ | Automatically operated Air operated |
63 | Polypropylene (PP) |
| PA51☐☐ | Automatically operated Air operated |
60 | Aluminum (ADC12) |
| PA52☐☐ | Automatically operated Air operated |
60 | Stainless steel (SCS14) |

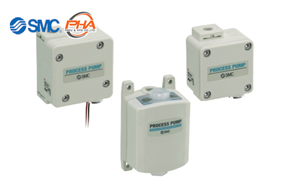

3) Process Pump/Single Acting Pump PB
Features | Process Pump/Single Acting Pump PB
Compact, large capacity diaphragm pump, suitable for transferring and collecting a wide range of fluids
ดาวน์โหลดไฟล์ PDFSpecifications | Process Pump/Single Acting Pump PB
| Series | Actuation | Discharge rate (L/min) | Wetted parts material |
|---|---|---|---|
| PB1011A | Built-in solenoid valve | 8 to 2000 | Polypropylene Stainless Steel 316 |
| PB1013A | Air operated type | 8 to 1000 | Polypropylene Stainless Steel 316 |
| PB1313A | Air operated type | 8 to 1000 | New PFA (Fluororesin) |

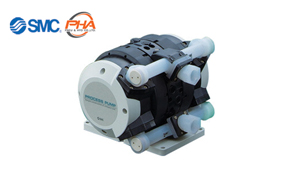

4) Non-Metallic Pump/Double Acting Pump PAF
Features | Non-Metallic Pump/Double Acting Pump PAF
* Tightening bolt, Air switching valve: Stainless steel Use the PAF series standard products when a metal-free pump is necessary for hydrofluoric acid, etc.
ดาวน์โหลดไฟล์ PDFSpecifications | Non-Metallic Pump/Double Acting Pump PAF
| Series | Actuation | Discharge rate (L/min) | Wetted parts material |
|---|---|---|---|
| PAF3410 | Automatically operated type | 1 to 20 | New PFA (Fluororesin) |
| PAF3413 | Air operated type | 1 to 15 | New PFA (Fluororesin) |
| PAF3410-X68 | Automatically operated type | 1 to 20 | New PFA (Fluororesin) |
| PAF5410 | Automatically operated type | 5 to 45 | New PFA (Fluororesin) |
| PAF5413 | Air operated type | 5 to 38 | New PFA (Fluororesin) |

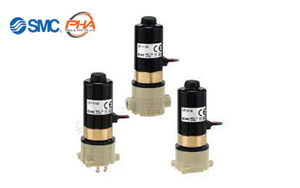

5) Liquid Dispense Pump (Solenoid Type) LSP
Features | Liquid Dispense Pump (Solenoid Type) LSP
- Compact solenoid type diaphragm pump, which dispenses stable and repeatable volumes of liquid measuring 5 μL or more per shot.
- Adjustment of dispense volume is possible.
- Stable dispense volume: Repeatability: ±1%*
- * ±2% at 5 to 15 μL, Under SMC’s measurement conditions
- Shut-off function
- Self-contained system does not need any priming.
Specifications | Liquid Dispense Pump (Solenoid Type) LSP
| Series | Connection | Fluid contact material Body | Fluid contact meterial Diaphragm, Check valve | Fluid |
|---|---|---|---|---|
| LSP | Body Ported Base Mounted |
PEEK PP |
EPDM FKM |
Water DI water (Pure water) Diluent Cleaning fluid |
