SMC - Specialty Cylinders

มีทั้งหมด 9 รุ่น คือ

Sine Rodless Cylinder REA
Sine Rodless Cylinder REB
Sine Cylinder REC
Smooth Cylinder CJ2Y / CM2Y / CG1Y / MBY / CA2Y / CS2Y / CQSY / CQ2Y
Low Speed Cylinder CJ2X / CM2X / CQSX / CQ2X / CUX

Low Friction Cylinder/Metal Seal MQQ / MQM / MQP
High Power Cylinder RHC
3 Position Cylinder RZQ
Air Servo Cylinder IN-777

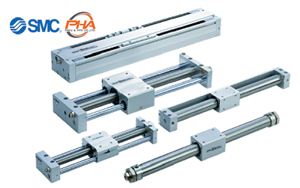

1) Sine Rodless Cylinder REA

Features | Sine Rodless Cylinder REA

Allows the high-speed transfer of a workpiece which must avoid shock/impact
Maximum speed: 300 mm/s

ดาวน์โหลดไฟล์ PDF

Specifications | Sine Rodless Cylinder REA

Type	Series	Action	Bore size (mm)
Basic	REA	Double acting	25, 32, 40, 50, 63
Direct mount	REAR	Double acting	10, 15, 20, 25, 32, 40
Slider (Slide bearing)	REAS	Double acting	10, 15, 20, 25, 32, 40
Slider (Ball bushing bearing)	REAL	Double acting	10, 15, 20, 25, 32, 40
Linear guide (Single axis)	REAH	Double acting	10, 15, 20, 25
Linear guide (Double axis)	REAHT	Double acting	25, 32

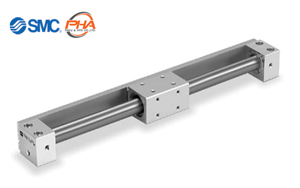

2) Sine Rodless Cylinder REB

Features | Sine Rodless Cylinder REB

Allows the high-speed transfer of a workpiece which must avoid shock/impact
Maximum speed: 600 mm/s

ดาวน์โหลดไฟล์ PDF

Specifications | Sine Rodless Cylinder REB

Type	Series	Action	Bore size (mm)
Direct mount	REBR	Double acting	15, 25, 32
Linear guide (Single axis)	REBH	Double acting	15, 25
Linear guide (Double axis)	REBHT	Double acting	25, 32

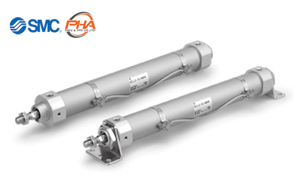

3) Sine Cylinder REC

Features | Sine Cylinder REC

Allows the high-speed transfer of a workpiece which must avoid shock/impact

ดาวน์โหลดไฟล์ PDF

Specifications | Sine Cylinder REC

Type	Series	Action	Bore size (mm)
Standard	REC	Double acting, Single rod	20, 25, 32, 40

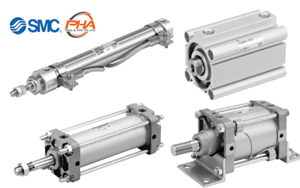

4) Smooth Cylinder CJ2Y / CM2Y / CG1Y / MBY / CA2Y / CS2Y / CQSY / CQ2Y

SMC - Smooth Cylinder CJ2Y / CM2Y / CG1Y / MBY / CA2Y / CS2Y / CQSY / CQ2Y

Features | Sine Cylinder REC

Reduces stick-slip in a low-speed range
Stable operation is possible even at a low speed of 5 mm/s.
- (Measurement based on JIS B 8377)
Low sliding is possible even in bi-directional operations.
Lightweight/Improved functions (The new structure is equivalent to the standard models.)
Interchangeable with the standard models
With auto switch (CDJ2Y-Z series: CDJ2Y, CDM2Y-Z series: CDM2Y-Z, CDG1Y-Z series: CDG1Y, MDBY-Z series: MDBY, CDA2Y-Z series: CDA2Y, CDS2Y series: CDS2Y, CDQSY series: CDQSY, CDQ2Y-Z series: CDQ2Y)

ดาวน์โหลดไฟล์ PDF

Specifications | Smooth Cylinder CJ2Y / CM2Y / CG1Y / MBY / CA2Y / CS2Y / CQSY / CQ2Y

Type	Series	Action	Bore size (mm)	Min. operating pressure (MPa)
Air cylinder	CJ2Y-Z	Double acting, Single rod	10, 16	0.03
Air cylinder	CM2Y-Z	Double acting, Single rod	20, 25, 32, 40	0.02
Air cylinder	CG1Y-Z	Double acting, Single rod	20, 25, 32, 40	0.02
Air cylinder	CG1Y-Z	Double acting, Single rod	50, 63, 80, 100	0.01
Air cylinder	MBY-Z	Double acting, Single rod	32, 40	0.02
Air cylinder	MBY-Z	Double acting, Single rod	50, 63, 80, 100	0.01
Air cylinder	CA2Y-Z	Double acting, Single rod	40	0.02
Air cylinder	CA2Y-Z	Double acting, Single rod	50, 63, 80, 100	0.01
Air cylinder	CS2Y	Double acting, Single rod	125, 140, 160	0.005
Compact cylinder	CQSY	Double acting, Single rod	12, 16	0.03
Compact cylinder	CQSY	Double acting, Single rod	20, 25	0.02
Compact cylinder	CQ2Y-Z	Double acting, Single rod	32, 40	0.02
Compact cylinder	CQ2Y-Z	Double acting, Single rod	50, 63, 80, 100	0.01

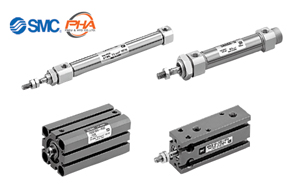

5) Low Speed Cylinder CJ2X / CM2X / CQSX / CQ2X / CUX

SMC - Low Speed Cylinder CJ2X / CM2X / CQSX / CQ2X / CUX

Features | Low Speed Cylinder CJ2X / CM2X / CQSX / CQ2X / CUX

Reduces adhesion/quick extension
Smooth operation is possible even at 0.5 mm/s.
- (1 mm/s for ø16 or smaller)
The minimum operating pressure has been reduced by half.
- (Compared to the previous version)
Improved functions
- (The new structure is equivalent to the standard models.)
Interchangeable with the standard models
With auto switch (CDJ2X-Z series: CDJ2X-Z, CDM2X-Z series: CDM2X, CDQSX series: CDQSX, CDQ2X series: CDQ2X, CDUX series: CDUX)

ดาวน์โหลดไฟล์ PDF

Specifications | Low Speed Cylinder CJ2X / CM2X / CQSX / CQ2X / CUX

Type	Series	Action	Bore size (mm)	Min. piston speed (mm/s)
Air cylinder	CJ2X-Z	Double acting, Single rod	10, 16	1
Air cylinder	CM2X-Z	Double acting, Single rod	20, 25, 32, 40	0.5
Compact cylinder	CQSX	Double acting, Single rod	12, 16	1
Compact cylinder	CQSX	Double acting, Single rod	20, 25	0.5
Compact cylinder	CQ2X	Double acting, Single rod	32, 40, 50, 63, 80, 100	0.5
Free mount cylinder	CUX	Double acting, Single rod	10, 16	1
Free mount cylinder	CUX	Double acting, Single rod	20, 25, 32	0.5

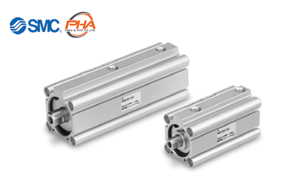

6) Low Friction Cylinder/Metal Seal MQQ / MQM / MQP

SMC - Low Friction Cylinder/Metal Seal MQQ / MQM / MQP

Features | Low Friction Cylinder/Metal Seal MQQ / MQM / MQP

Covers a range of driving speeds and output controls not possible with standard cylinders thanks to its metal seal structure with minimal sliding resistance

ดาวน์โหลดไฟล์ PDF

Specifications | Low Friction Cylinder/Metal Seal MQQ / MQM / MQP

Type	Series	Bore size (mm)	Operating Pressure range (MPa)	Driving speed (mm/s)
Standard	MQQT	10, 16, 20, 25, 30, 40	0.005 to 0.5	0.3 to 300
Anti-lateral load	MQQL	10, 16, 20, 25, 30, 40	0.005 to 0.7	0.5 to 500
Anti-lateral load	MQML	6	0.02 to 0.7	0.5 to 1000
Anti-lateral load	MQML	10, 16, 20, 25	0.005 to 0.7	0.5 to 1000
High speed/High frequency	MQML□□H	10, 16, 20, 25	0.01 to 0.7	5 to 3000
Single acting	MQP	4, 6, 10, 16, 20	0.001 to 0.7	-

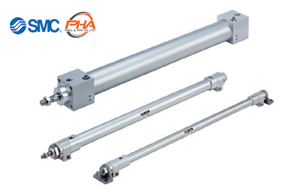

7) High Power Cylinder RHC

Features | High Power Cylinder RHC

Provides 10 to 20 times the energy absorption capacity of general purpose cylinders (CG1 series)
Smooth cushioning from high-speed operation (3000 mm/s) with light loads to low/medium-speed operation with heavy loads
XC93: With greater water resistance + a stable lubrication function 5 times stronger against water (liquids) than the standard model (RHC series)

ดาวน์โหลดไฟล์ PDF

Specifications | High Power Cylinder RHC

Type	Series	Action	Bore size (mm)
Standard	RHC	Double acting, Single rod	20, 25, 32, 40, 50, 63, 80, 100
Standard	RHC-XC93	Double acting, Single rod	32, 40

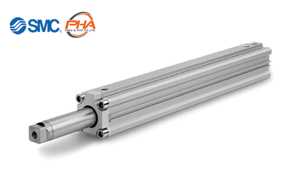

8) 3 Position Cylinder RZQ

Features | 3 Position Cylinder RZQ

Equipped with an intermediate stop mechanism
Two-stage strokes are possible with just a minute extension

ดาวน์โหลดไฟล์ PDF

Specifications | 3 Position Cylinder RZQ

Type	Series	Action	Bore size (mm)
Standard	RZQ	Double acting, Single rod	32, 40, 50, 63

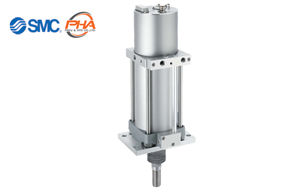

9) Air Servo Cylinder IN-777

Features | Air Servo Cylinder IN-777

Capable of air cylinder multipoint positioning and control
Fast response and high positioning repeatability Positioning repeatability: ±0.5 mm
Easier maintenance due to unitization
Built-in self-diagnosis function (LED lamp and signal output)
Emergency stop of the piston when the air or power supply is cut

ดาวน์โหลดไฟล์ PDF
