SMC - Lock Cylinders / Cylinder with An End Lock
SMC - Lock Cylinders / Cylinder with An End Lock
มีทั้งหมด 13 รุ่น คือ

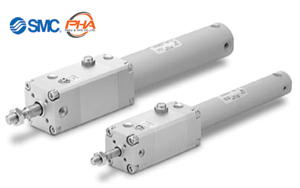

1) Cylinder with Lock CNG / CDNG
Features | Cylinder with Lock CNG / CDNG
- Locking cylinder ideal for intermediate stops, emergency stops, and drop prevention (Bi-directional lock)
- With auto switch (CDNG series: CDNG)
Specifications | Cylinder with Lock CNG / CDNG
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | CNG | Double acting, Single rod | 20, 25, 32, 40 | Spring lock |
2) Cylinder with Lock MWB / MDWB
Features | Cylinder with Lock MWB / MDWB
- Lock can be manually operated with a hexagon wrench. Can be easily mounted onto equipment
- Separate construction for improved ease of maintenance
- Holding force improved by 15%
- High stopping accuracy within ±1 mm
- Overall length reduced by 18 mm max.
- With lock status indication (-X3030)
Specifications | Cylinder with Lock MWB / MDWB
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | MWB | Double acting, Single rod | 32, 40, 50, 63, 80, 100 | Exhaust locking |
| Standard | MWBW | Double acting, Double rod | 32, 40, 50, 63, 80, 100 | Exhaust locking |
3) Lock Unit MWB-UT
Features | Lock Unit MWB-UT
- A safety mechanism can be designed if required.
- It can also be combined with a wide variety of actuators. Prevents the workpiece from falling Retains the workpiece position even when the air supply is shut off due to power failure, etc.
Specifications | Lock Unit MWB-UT
| Series | Applicable rod size (mm) | Lock holding force (Max. static load)(N) |
|---|---|---|
| MWB-UT | 12, 16, 20, 25, 30 | 630 to 6080 |
4) Cylinder with Lock MNB / MDNB
Features | Cylinder with Lock MNB / MDNB
- Locking cylinder ideal for intermediate stops, emergency stops, and drop prevention (Bi-directional lock)
- With auto switch (MDNB series: MDNB, MDNBW)
Specifications | Cylinder with Lock MNB / MDNB
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | MNB | Double acting, Single rod | 32, 40, 50, 63, 80, 100 | Spring lock |
| Standard | MNBW | Double acting, Double rod | 32, 40, 50, 63, 80, 100 | Spring lock |
5) Cylinder with Lock CNA2 / CDNA2
Features | Cylinder with Lock CNA2 / CDNA2
- Locking cylinder ideal for intermediate stops, emergency stops, and drop prevention (Bi-directional lock)
- Magnetic field resistant 2-color indicator solid state auto switch D-P3DW□ series mountable
- With auto switch (CDNA2 series: CDNA2, CDNA2W)
Specifications | Cylinder with Lock CNA2 / CDNA2
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | CNA2 | Double acting, Single rod | 40, 50, 63, 80, 100 | Spring lock |
| Standard | CNA2W | Double acting, Double rod | 40, 50, 63, 80, 100 | Spring lock |
6) Cylinder with Lock CNS / CDNS
Features | Cylinder with Lock CNS / CDNS
- Locking cylinder ideal for intermediate stops, emergency stops, and drop prevention (Bi-directional lock)
- With auto switch (CDNS series: CDNS)
Specifications | Cylinder with Lock CNS / CDNS
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | CNS | Double acting, Single rod | 125, 140, 160 | Spring lock |

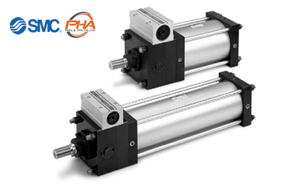

7) Cylinder with Lock CLS / CDLS
Features | Cylinder with Lock CLS / CDLS
- Locking cylinder ideal for intermediate stops, emergency stops, and drop prevention (Bi-directional lock)
- With auto switch (CDLS series: CDLS)
Specifications | Cylinder with Lock CLS / CDLS
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | CLS | Double acting, Single rod | 125, 140, 60, 180, 200, 250 | Spring lock |
8) Compact Cylinder with Lock CLQ / CDLQ
Features | Compact Cylinder with Lock CLQ / CDLQ
- Locking cylinder ideal for drop prevention when the air supply is shut off (Single-directional lock)
- With auto switch (CDLQ series: CDLQ)
Specifications | Compact Cylinder with Lock CLQ / CDLQ
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | CLQ | Double acting, Single rod | 20, 25, 32, 40, 50, 63, 80, 100 | Spring lock |
9) Compact Cylinder with Air Cushion and Lock RLQ / RDLQ
Features | Compact Cylinder with Air Cushion and Lock RLQ / RDLQ
- Locking cylinder ideal for drop prevention when the air supply is shut off
- Compact cylinder with a built-in air cushion and lock unit (Single-directional lock)
- With auto switch (RDLQ series: RDLQ)
Specifications | Compact Cylinder with Air Cushion and Lock RLQ / RDLQ
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | RLQ | Double acting, Single rod | 32, 40, 50, 63 | Spring lock |
10) Plate Cylinder with Lock MLU / MDLU
Features | Plate Cylinder with Lock MLU / MDLU
- Locking cylinder ideal for drop prevention when the air supply is shut off (Single-directional lock)
- With auto switch (MDLU series: MDLU)
Specifications | Plate Cylinder with Lock MLU / MDLU
| Type | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|
| Standard | MLU | Double acting, Single rod | 25, 32, 40, 50 | Spring lock |

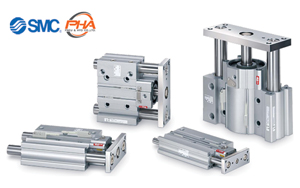

11) Compact Guide Cylinder with Lock MLGP
Features | Compact Guide Cylinder with Lock MLGP
- Stopping possible at any stroke position Drop prevention when the pressure is decreased or the residual pressure is released
- Weight reduced by up to 17% with a shorter guide rod and thinner plate Guide rod: Max. 22 mm shorter (Compared with the existing MLGPM)
- Small auto switches or magnetic field-resistant auto switches can be directly mounted on two surfaces.
Specifications | Compact Guide Cylinder with Lock MLGP
| Type | Bearing | Series | Action | Bore size (mm) | Lock mechanism |
|---|---|---|---|---|---|
| Standard | Slide bearing | MLGPM | Double acting | 20, 25, 32, 40, 50, 63, 80, 100 | Spring lock |
| Standard | Ball bushing bearing | MLGPL | Double acting | 20. 25. 32. 40, 50. 63. 80. 100 | Spring lock |

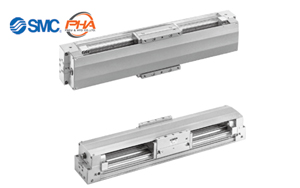

12) Mechanically Jointed Hy-rodless Cylinder with Brake ML1C
Features | Mechanically Jointed Hy-rodless Cylinder with Brake ML1C
- A brake mechanism has been compactly integrated into the slide table.
- Enables intermediate stops
Specifications | Mechanically Jointed Hy-rodless Cylinder with Brake ML1C
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Cam follower guide | ML1C | Double acting | 25, 32, 40 |
13) Cylinder with End Lock
Features | Cylinder with End Lock
- Drop prevention at stroke end position
- When air is discharged at the stroke end position, the lock is activated.
- No separate air piping is required for locking.
