SMC - Environment Resistant Cylinders

SMC -Environment Resistant Cylinders

มีทั้งหมด 7 รุ่น คือ

Stainless Steel Cylinder CJ5-S / CDJ5-S / CG5-S / CDG5-S
Material Stainless Steel / Foot Bracket / Flange Bracket / Single Knuckle Joint / Double Knuckle Joint CJ2 / CM2 / CG1 / CQ2
Hygienic Design Cylinder HY□ / HYD□

Water Resistant Cylinder (Pneumatic/Hydraulic)
Cylinder with Stable Lubrication Function (Lube-retainer)
Measures Against Dust XC4 / XC35 (Made to order)
Heat/Cold Resistant XB6 / XB7 / XB14 / XC5 (Made to order)

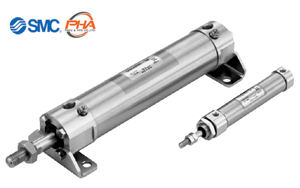

1) Stainless Steel Cylinder CJ5-S / CDJ5-S / CG5-S / CDG5-S

SMC - Stainless Steel Cylinder CJ5-S / CDJ5-S / CG5-S / CDG5-S

Features | Stainless Steel Cylinder CJ5-S / CDJ5-S / CG5-S / CDG5-S

Applicable for use in an environment with water splashing
With auto switch (CDJ5-S series: CDJ5-S, CDG5-S series: CDG5-S)

ดาวน์โหลดไฟล์ PDF

Specifications | Stainless Steel Cylinder CJ5-S / CDJ5-S / CG5-S / CDG5-S

Type	Series	Action	Bore size (mm)
Standard	CJ5-S	Double acting, Single rod	10, 16
Standard	CG5-S	Double acting, Single rod	20, 25, 32, 40, 50, 63, 80, 100
Standard	CG5-S	Double acting, Double rod	20, 25, 32, 40, 50, 63, 80, 100

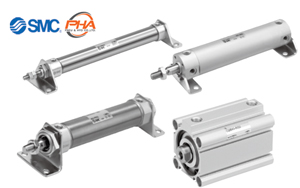

2) Material Stainless Steel / Foot Bracket / Flange Bracket / Single Knuckle Joint / Double Knuckle Joint CJ2 / CM2 / CG1 / CQ2

SMC - Material Stainless Steel / Foot Bracket / Flange Bracket / Single Knuckle Joint / Double Knuckle Joint CJ2 / CM2 / CG1 / CQ2

Features | Material Stainless Steel / Foot Bracket / Flange Bracket / Single Knuckle Joint / Double Knuckle Joint CJ2 / CM2 / CG1 / CQ2

External dimensions and mounting dimensions are interchangeable with the standard type.
Post-mounting is possible.
Bracket applicable cylinders: CJ2, CM2, CG1, CQ2

ดาวน์โหลดไฟล์ PDF

Specifications | Material Stainless Steel / Foot Bracket / Flange Bracket / Single Knuckle Joint / Double Knuckle Joint CJ2 / CM2 / CG1 / CQ2

Series	Bore size [mm]	Foot bracket	Flange bracket	Single knuckle joint	Double knuckle joint	Mounting nut	Rod end nut
CJ2	10, 16	•	•	•	•	•	•
CM2	20, 25, 32, 40	•	•	•	•	•	•
CG1	20, 25, 32, 40, 50, 63, 80, 100	•	-	•	•	-	•
CQ2	20, 25, 32, 40, 50, 63, 80, 100	-	-	•	•	-	•

3) Hygienic Design Cylinder HY□ / HYD□

SMC - Hygienic Design Cylinder HY□ / HYD□

Features | Hygienic Design Cylinder HY□ / HYD□

Improved water resistant air cylinder with an easily washable configuration
5 times the lifespan of the improved water resistant cylinder (SMC comparison)
With auto switch (HYDB series: HYDB, HYDQB series: HYDQB, HYDC series: HYDC, HYDG series: HYDG)

ดาวน์โหลดไฟล์ PDF

Specifications | Hygienic Design Cylinder HY□ / HYD□

Type	Series	Action	Bore size (mm)
Basic	HYB	Double acting, Single rod	20, 25, 32, 40, 50, 63, 80, 100
Basic	HYQ	Double acting, Single rod	20, 25, 32, 40, 50, 63
ISO Standard	HYC	Double acting, Single rod	32, 40, 50, 63
With guide	HYG	Double acting	20, 25, 32, 40, 50, 63

4) Water Resistant Cylinder (Pneumatic/Hydraulic)

SMC - Water Resistant Cylinder (Pneumatic/Hydraulic)

Features | Water Resistant Cylinder (Pneumatic/Hydraulic)

Can be used in environments where contact with water or coolant occurs
With water resistant 2-color indicator auto switch
Suitable for factory machinery, food manufacturing machinery, car washers, etc.

ดาวน์โหลดไฟล์ PDF

Specifications | Water Resistant Cylinder (Pneumatic/Hydraulic)

Type	Series	Action	Bore size (mm)
Air cylinder	CM2-Z	Double acting, Single rod	20, 25, 32, 40
Air cylinder	CG1-Z	Double acting, Single rod	32, 40, 50, 63, 80, 100
Air cylinder	MB-Z	Double acting, Single rod	32, 40, 50, 63, 80, 100
Square tube type air cylinder	MB1	Double acting, Single rod	32, 40, 50, 63, 80, 100
Compact cylinder	CQ2-Z	Double acting, Single rod	20, 25, 32, 40, 50, 63, 80, 100
Air cylinder	CA2-Z	Double acting, Single rod	40, 50, 63, 80, 100
Compact guide cylinder	MGP-Z	Double acting	20, 25, 32, 40, 50, 63, 80, 100
Guide cylinder	MGG	Double acting	32, 40, 50, 63, 80, 100
Rotary clamp cylinder	MK	Double acting	16, 20, 25, 32, 40, 50, 63
Air cylinder	RSQ	Double acting	32, 40, 50
Compact hydraulic cylinder compliant with JIS Standards (10 MPa)	CHKDB	Double acting, Single rod	20, 25, 32, 40, 50, 63, 80, 100
Hydraulic cylinder compliant with JIS Standards (7 MPa)	CH2F	Double acting, Single rod	32, 40, 50, 63, 80, 100
High power cylinder	RHC-XC93	Double acting	32, 40

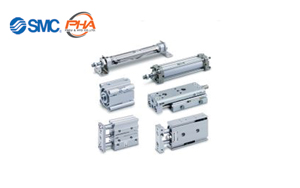

5) Cylinder with Stable Lubrication Function (Lube-retainer)

SMC - Cylinder with Stable Lubrication Function (Lube-retainer)

Features | Cylinder with Stable Lubrication Function (Lube-retainer)

Applicable to operation in micro-powder (10 to 100 μm) /general environments
Durability is 4 times stronger than the standard model in micro-powder environments.
The overall length and mounting are the same as those of the standard model. (Except for some models)
Grease film is formed on the piston rod surface to improve durability.
Prevents the entry of dust and foreign matter
The number of operating cycles can be improved even in general environments.

ดาวน์โหลดไฟล์ PDF

Specifications | Cylinder with Stable Lubrication Function (Lube-retainer)

Type	Series	Action	Bore size (mm)
Air cylinder	CM2-Z	Double acting, Single rod	20, 25, 32, 40
Air cylinder	CG1-Z	Double acting, Single rod	20, 25, 32, 40, 50, 63, 80, 100
Air cylinder	CA2-Z	Double acting, Single rod	40, 50, 63, 80, 100
Compact cylinder	CQS	Double acting, Single rod	20, 25
Compact cylinder	CQ2-Z	Double acting, Single rod	32, 40, 50, 63, 80, 100
Air slide table	MXQ□A	Double acting	6, 8, 12, 16, 20, 25
Compact guide cylinder	MGP-Z	Double acting	20, 25, 32, 40, 50, 63, 80, 100
Dual Rod Cylinder / Compact Type	CXSJ	Double acting	6, 10, 15, 20, 25, 32
Dual rod cylinder	CXS	Double acting	6, 8, 12, 16, 20, 25, 32
High power cylinder	RHC-XC93	Double acting	32, 40

6) Measures Against Dust XC4 / XC35 (Made to order)

Features | Measures Against Dust XC4 / XC35

Cylinders with a heavy duty scraper on the wiper ring are suitable for use in extremely dusty environments and those where they will be exposed to earth or sand, such as in die-casted equipment, construction machinery, and industrial vehicles.

Specifications | Measures Against Dust XC4 / XC35

Model	Description
XC4	With heavy duty scraper
XC35	With coil scraper

7) Heat/Cold Resistant XB6 / XB7 / XB14 / XC5 (Made to order)

Features | Heat/Cold Resistant XB6 / XB7 / XB14 / XC5

Air cylinder for use in low-temperature and high-temperature environments

Specifications | Heat/Cold Resistant XB6 / XB7 / XB14 / XC5

Model	Description
XB6	Heat resistant cylinder(-10 to 150℃)
XB7	Cold resistant cylinder (-40 to 70℃)
XB14	Cylinder with heat resistant auto switch
XC5	Heat resistant cylinder (-10 to 110℃)
