OMRON Photoelectric Sensor - E3ZR-C series
Photoelectric Sensor Built-in Amplifier - E3ZR-C series
Download PDF
Model Numbers | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
Sensors
| Sensing method | Appearance | Connection method | Sensing distance | Ope- ration mode | Model | |
|---|---|---|---|---|---|---|
| NPN output | PNP output | |||||
| Through- beam (Emitter + Receiver) *1 |
 |
Pre-wired (2 m)*4 |
[Red light] 30 m |
Light ON |
E3ZR-CT61L 2M Emitter E3ZR-CT61L-L 2M Receiver E3ZR-CT61L-D 2M |
E3ZR-CT81L 2M Emitter E3ZR-CT81L-L 2M Receiver E3ZR-CT81L-D 2M |
| M12 Smartclick pre-wired connector (0.3 m) |
E3ZR-CT61L-M1TJ 0.3M Emitter E3ZR-CT61L-L-M1TJ 0.3M Receiver E3ZR-CT61L-D-M1TJ 0.3M |
E3ZR-CT81L-M1TJ 0.3M Emitter E3ZR-CT81L-L-M1TJ 0.3M Receiver E3ZR-CT81L-D-M1TJ 0.3M |
||||
| Pre-wired (2 m)*4 |
Dark ON |
E3ZR-CT61D 2M Emitter E3ZR-CT61D-L 2M Receiver E3ZR-CT61D-D 2M |
E3ZR-CT81D 2M Emitter E3ZR-CT81D-L 2M Receiver E3ZR-CT81D-D 2M |
|||
| M12 Smartclick pre-wired connector (0.3 m) |
E3ZR-CT61D-M1TJ 0.3M Emitter E3ZR-CT61D-L-M1TJ 0.3M Receiver E3ZR-CT61D-D-M1TJ 0.3M |
E3ZR-CT81D-M1TJ 0.3M Emitter E3ZR-CT81D-L-M1TJ 0.3M Receiver E3ZR-CT81D-D-M1TJ 0.3M |
||||
| Retro- reflective with MSR function |
 ＊2 |
Pre-wired (2 m)*4 |
[Red light] 2.5 m *3 (100 mm) (When using E39-R1R Oil-resistant Reflector) |
Light ON |
E3ZR-CR61L 2M | E3ZR-CR81L 2M |
| M12 Smartclick pre-wired connector (0.3 m) |
E3ZR-CR61L-M1TJ 0.3M | E3ZR-CR81L-M1TJ 0.3M | ||||
| Pre-wired (2 m)*4 |
Dark ON |
E3ZR-CR61D 2M | E3ZR-CR81D 2M | |||
| M12 Smartclick pre-wired connector (0.3 m) |
E3ZR-CR61D-M1TJ 0.3M | E3ZR-CR81D-M1TJ 0.3M | ||||
| Diffuse- reflective |
 |
Pre-wired (2 m)*4 |
[Red light] 0.5 m |
Light ON |
E3ZR-CD61L 2M | E3ZR-CD81L 2M |
| M12 Smartclick pre-wired connector (0.3 m) |
E3ZR-CD61L-M1TJ 0.3M | E3ZR-CD81L-M1TJ 0.3M | ||||
| Pre-wired (2 m)*4 |
Dark ON |
E3ZR-CD61D 2M | E3ZR-CD81D 2M | |||
| M12 Smartclick pre-wired connector (0.3 m) |
E3ZR-CD61D-M1TJ 0.3M | E3ZR-CD81D-M1TJ 0.3M | ||||
*1. Through-beam Sensors are sold in sets that include both the Emitter and Receiver. An order for the Emitter or Receiver alone cannot be accepted.
*2. The Reflector is sold separately. Select the Reflector model most suited to the application.
*3. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*4. Models with 5-m cable length are also available with "5M" suffix. (Example: E3ZR-CT61L 5M)
Accessories (Sold Separately)
Sensor I/O Connectors (M12, Sockets on One Cable End)
(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
| Appearance | Cable diameter (mm) | Cable length | Sensor I/O Connector model number | Applicable Photoelectric Sensor model number |
|---|---|---|---|---|
| Straight, Smartclick Oil-resistant Connectors  |
4 dia. | 2 m | XS5FR-D423-D80-RB1 | E3ZR-C[][]1[]-M1TJ |
| 5 m | XS5FR-D423-G80-RB1 | |||
| 10 m | XS5FR-D423-J80-RB1 |
Note: Refer to the XS5[]R on catalog for connector details and for information on cables with connectors on both ends.
Slit (A Slit is not provided with Through-beam Sensors) Order a Slit separately if required.
| Slit width | Sensing distance (Reference value) | Model | Contents |
|---|---|---|---|
| E3ZR-CT[] | |||
| 1-mm dia. | 0.2 m | E39-S77A | One set (contains Slits for both the Emitter and Receiver) |
| 2-mm dia. | 0.8 m | E39-S77B |
Mounting Brackets
A Mounting Bracket is not provided with the Sensor. Order a Mounting Bracket separately if required.
| Appearance | Model (material) | Quantity | Remarks |
|---|---|---|---|
 |
E39-L153 (SUS304) | 1 | Mounting Brackets |
 |
E39-L104 (SUS304) | 1 | |
 |
E39-L196 (SUS304) | 1 | |
 |
E39-L197 (SUS304) | 1 | |
 |
E39-L98 (SUS304)) | 1 | Metal Protective Cover Bracket |
Note:
1. When using Through-beam models, order one bracket for the Receiver and one for the Emitter.
2. Refer to Mounting Brackets on E39-L/E39-S/E39-R on your OMRON website for details.
Reflecto
(A Reflector is required for each Retro-reflective Sensor: A Reflector is not provided with the Sensor. Be sure to order a Reflector.)
| Name | E3ZM-CR sensing distance | Model | Quantity | Remarks | |
|---|---|---|---|---|---|
| Rated value | Reference value | ||||
| Oil-resistant Reflector |
2.5 m (100 mm) * | - | E39-R1R | 1 | · Reflectors are not provided with Retro-reflective models. · The MSR function is enabled. |
Note: Refer to Reflectors on E39-L/E39-S/E39-R on your OMRON website for details.
*Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
Specifications | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
Sensors
| Sensing method | Through-beam | Retro-reflective with MSR function | Diffuse-reflective | |
|---|---|---|---|---|
| Model | NPN output | E3ZR-CT61[] (-M1TJ) | E3ZR-CR61[] (-M1TJ) | E3ZR-CD61[] (-M1TJ) |
| PNP output | E3ZR-CT81[] (-M1TJ) | E3ZR-CR81[] (-M1TJ) | E3ZR-CD81[] (-M1TJ) | |
| Sensing distance | 30 m | 2.5 m [100 mm] *1 (Using E39-R1R) |
0.5 m (White paper 300 × 300 mm) |
|
| Standard sensing object | Opaque: 12-mm dia. min. | Opaque: 75-mm dia. min. | - | |
| Differential travel | --- | 20% of sensing distance max. | ||
| Directional angle | Emitter, Receiver: 3° to 15° (Distance between emitter and receiver. Rated sensing distance) |
Sensor: 2° to 10° Reflector: 30° (Distance to Reflector. Rated sensing distance) |
-- | |
| Light source (wavelength) | Red LED (624 nm) | Red LED (660 nm) | Red LED (624 nm) | |
| Power supply voltage | 12 to 24 VDC ±10%, ripple (p-p) 10% max. | |||
| Current consumption | 35 mA max. (Emitter 15 mA max., Receiver 20 mA max.) |
30 mA max. | ||
| Control output | Output power supply voltage: 26.4 VDC max., Output current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) |
|||
| Protection circuits | Reversed power supply polarity protection, output short-circuit protection, and reversed output polarity protection | Reversed power supply polarity protection, output short-circuit protection, reversed output polarity protection, and mutual interference prevention function (with up to two Units) | ||
| Response time | Operate or reset: 1 ms max. | |||
| Sensitivity adjustment | None | |||
| Ambient illumination (Receiver side) | Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max. | |||
| Ambient temperature range | Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation) | |||
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | |||
| Insulation resistance | 20 MΩ min. at 500 VDC | |||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | |||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Shock resistance | Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions | |||
| Degree of protection | IP67 (IEC 60529) and IP67G *2 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *3 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) |
|||
| Connection method | Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 0.3 m) | |||
| Indicators | Operation indicator (orange) and stability indicator (green) (The Emitter has only a power indicator (green).) | |||
| Weight (packed state) | Pre-wired models |
Approx. 200 g | Approx. 100 g | |
| Pre-wired connector |
Approx. 140 g | Approx. 70 g | ||
| Housing material | SUS316L | |||
| Cable material | Fluororesin | |||
| Lens material | Methacrylate resin (Oil-resistant high molecular weight type) | |||
| Indicator material | Polyetherimide resin | |||
| Accessories | Instruction manual | |||
*1. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*2. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
The Pre-wired Connector Model meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered.
And as for the Pre-wired Models, the degree of protection is not satisfied with the part where cable wires are uncovered.
Accessories (Sold Separately)
Reflector
| Name | Oil-resistant Reflector |
|---|---|
| Model | E39-R1R |
| Directional angle | 30° min. |
| Ambient temperature range | Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Degree of protection | IP67 (IEC 60529) and IP67G *1 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *2 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35°C max.) |
*1. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*2. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
Dimensions | Photoelectric Sensor Built-in Amplifier - Dimension
Sensors
Through-beam Models*
Pre-wired Models
E3ZR-CT61[]
E3ZR-CT81[]
Retro-reflective Models
Pre-wired Models
E3ZR-CR61[]
E3ZR-CR81[]
Diffuse-reflective Models
Pre-wired Models
E3ZR-CD61[]
E3ZR-CD81[]
*Models numbers for Through-beam Sensors (E3ZR-CT[]1[](-M1TJ)) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3ZR-CT61L-L 2M), the model number of the Receiver, by adding "-D" (example: E3ZR-CT61L-D 2M.) Refer to Ordering Information to confirm model numbers for Emitters and Receivers.
Cable bend radius
Accessories (Sold Separately)

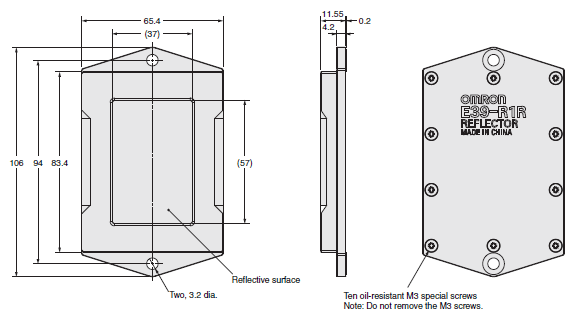

Oil-resistant Reflector
E39-R1R
Material
Reflective surface: Methacrylate resin (Oil-resistant high molecular weight type)
Rear surface: Aluminium
Oil-resistant M3 special screws: Stainless steel (SUS302)
Slits
E39-S77A
E39-S77B
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L153
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L104
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L98
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L196
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L197
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Features | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
- Fluororesin cables that strongly resist cutting oil.
- Sealing methods that prevent gaps at joints block the ingress of cutting oil.
- IP67G * degree of protection (JIS C 0920 Annex 1).
Properties | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
| Photoelectric Sensor Built-in Amplifier - E3ZR-C series | |
|---|---|
| Sensing method | Through-beam, Retro-reflective, Diffuse-reflective |
| Sensing distance | 0.5 m, 2.5 m, 30 m |
| Power supply voltage | 12 ถึง 24 VDC ± 10% |
| Current consumption | 30 mA max, 35 mA max |
| Response time | 1 ms max |
| Degree of protection | IP67, IP67G |
| Housing material | Fluororesin |
Photoelectric Sensor Built-in Amplifier - E3ZR-C series
ดาวน์โหลดไฟล์ PDF เลือกรุ่นสินค้า | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
| วิธีการตรวจจับ | ลักษณะ | วิธีการเชื่อมต่อ | ระยะการตรวจจับ | โหมดการทำงาน | รุ่นสินค้า | |
|---|---|---|---|---|---|---|
| เอาต์พุต NPN | เอาต์พุต PNP | |||||
| Through- beam (ตัวรับ + ตัวส่ง ) *1 |
|
มีสายในตัว (2 ม.)*4 |
[สีแดง] 30 ม. |
เปิดแสง | E3ZR-CT61L 2M Emitter E3ZR-CT61L-L 2M Receiver E3ZR-CT61L-D 2M |
E3ZR-CT81L 2M Emitter E3ZR-CT81L-L 2M Receiver E3ZR-CT81L-D 2M |
| M12 Smartclick คอนเนคเตอร์ มีสาย (0.3 ม.) |
E3ZR-CT61L-M1TJ 0.3M Emitter E3ZR-CT61L-L-M1TJ 0.3M Receiver E3ZR-CT61L-D-M1TJ 0.3M |
E3ZR-CT81L-M1TJ 0.3M Emitter E3ZR-CT81L-L-M1TJ 0.3M Receiver E3ZR-CT81L-D-M1TJ 0.3M |
||||
| มีสายในตัว (2 ม.) *4 |
Dark ON |
E3ZR-CT61D 2M Emitter E3ZR-CT61D-L 2M Receiver E3ZR-CT61D-D 2M |
E3ZR-CT81D 2M Emitter E3ZR-CT81D-L 2M Receiver E3ZR-CT81D-D 2M |
|||
| M12 Smartclick คอนเนคเตอร์ มีสาย (0.3 ม.) |
E3ZR-CT61D-M1TJ 0.3M Emitter E3ZR-CT61D-L-M1TJ 0.3M Receiver E3ZR-CT61D-D-M1TJ 0.3M |
E3ZR-CT81D-M1TJ 0.3M Emitter E3ZR-CT81D-L-M1TJ 0.3M Receiver E3ZR-CT81D-D-M1TJ 0.3M |
||||
| Retro-reflective พร้อมฟังก์ชัน MSR |
＊2 |
มีสายในตัว (2 ม.) *4 |
[แสงสีแดง] 2.5 ม. *3 (100 มม.) (เมื่อใช้ E39-R1R ทนต่อน้ำมันหล่อลื่น) |
เปิดแสง | E3ZR-CR61L 2M | E3ZR-CR81L 2M |
| M12 Smartclick คอนเนคเตอร์ แบบมีสาย (0.3 ม.) | E3ZR-CR61L-M1TJ 0.3M | E3ZR-CR81L-M1TJ 0.3M | ||||
| มีสายในตัว (2 ม.) *4 |
Dark ON |
E3ZR-CR61D 2M | E3ZR-CR81D 2M | |||
| M12 Smartclick คอนเนคเตอร์ แบบมีสาย (0.3 ม.) | E3ZR-CR61D-M1TJ 0.3M | E3ZR-CR81D-M1TJ 0.3M | ||||
| Diffuse-reflective | |
มีสายในตัว (2 ม.) *4 |
[แสงสีแดง] 0.5 ม. |
เปิดแสง | E3ZR-CD61L 2M | E3ZR-CD81L 2M |
| M12 Smartclick คอนเนคเตอร์ แบบมีสาย (0.3 ม.) | E3ZR-CD61L-M1TJ 0.3M | E3ZR-CD81L-M1TJ 0.3M | ||||
| มีสายในตัว (2 ม.) *4 |
Dark ON |
E3ZR-CD61D 2M | E3ZR-CD81D 2M | |||
| M12 Smartclick คอนเนคเตอร์ แบบมีสาย (0.3 ม.) | E3ZR-CD61D-M1TJ 0.3M | E3ZR-CD81D-M1TJ 0.3M | ||||
- * เซนเซอร์ลำแสงผ่านตลอดมีจำหน่ายเป็นชุดที่มีทั้งตัวส่งและตัวรับ ไม่สามารถยอมรับคำสั่งซื้อที่สั่งตัวส่งหรือผู้รับเพียงอย่างเดียว
- * แผ่นสะท้อนแสงแยกจำหน่าย เลือกรุ่นแผ่นสะท้อนแสงที่เหมาะกับการใช้งานมากที่สุด
- * ค่าในวงเล็บระบุระยะห่างขั้นต่ำที่ต้องการระหว่างเซนเซอร์และตัวสะท้อนแสง
- * นอกจากนี้ยังมีรุ่นที่มีความยาวสายเคเบิล 5 ม. พร้อมคำต่อท้าย "5M" (ตัวอย่าง: E3ZR-CT61L 5M)
อุปกรณ์เสริม (สั่งซื้อแยกต่างหาก)
คอนเนคเตอร์ I/O เซ็นเซอร์ (M12, ซ็อกเก็ตที่ปลายสายด้านหนึ่ง)
(รุ่นสำหรับคอนเนคเตอร์แบบมีสาย) ไม่มีคอนเนคเตอร์ I/O เซ็นเซอร์มาให้พร้อมกับเซ็นเซอร์ ต้องสั่งซื้อแยกต่างหากตามความต้องการ
| ลักษณะ | เส้นผ่านศูนย์กลางของสายเคเบิล (มม.) | ความยาวสายเคเบิล | หมายเลขรุ่นคอนเนคเตอร์ I/O เซ็นเซอร์ | หมายเลขรุ่นโฟโตอิเล็กทริคเซนเซอร์ที่ใช้งานได้ |
|---|---|---|---|---|
| แบบตรง, คอนเนคเตอร์ทนต่อน้ำมัน Smartclick |
4 dia. | 2 ม. | XS5FR-D423-D80-RB1 | E3ZR-C[][]1[]-M1TJ |
| 5 ม. | XS5FR-D423-G80-RB1 | |||
| 10 ม. | XS5FR-D423-J80-RB1 |
Note: Refer to the XS5[]R on catalog for connector details and for information on cables with connectors on both ends.
แผ่นยึด (Slit) (ไม่ได้ให้แผ่นยึดมาพร้อมกับเซนเซอร์ Through-beam) สั่งตัวยึดแยกต่างหากหากจำเป็น
| ความกว้างโครงยึด | ระยะการตรวจจับ (ค่าอ้างอิง) | รุ่นสินค้า | รายละเอียด |
|---|---|---|---|
| E3ZR-CT[] | |||
| Ø 1 มม. | 0.2 ม. | E39-S77A | หนึ่งชุด (มีโครงยึดสำหรับทั้งตัวส่งและตัวรับ) |
| 0.2 มม. | 0.8 ม. | E39-S77B |
ขายึด
ไม่มีขายึดมาพร้อมกับเซนเซอร์ สั่งซื้อขายึดแยกต่างหากหากจำเป็น
| ลักษณะ | รุ่นสินค้า (วัสดุ) | ปริมาณ | หมายเหตุ |
|---|---|---|---|
|
E39-L153 (SUS304) | 1 | ขายึด |
|
E39-L104 (SUS304) | 1 | |
|
E39-L196 (SUS304) | 1 | |
|
E39-L197 (SUS304) | 1 | |
|
E39-L98 (SUS304)) | 1 | ขายึดแบบฝาครอบโลหะ |
หมายเหตุ
- เมื่อใช้ รุ่น Through-beam ให้สั่งตัวยึดหนึ่งตัวสำหรับตัวรับและอีกอันสำหรับตัวส่ง
- อ้างอิงถึงขายึดบน E39-L / E39-S / E39-R บนเว็บไซต์ OMRON สำหรับรายละเอียด
ตัวสะท้อนแสง
(จำเป็นต้องมีตัวสะท้อนแสงสำหรับเซนเซอร์แบบ Retro-reflective แต่ละตัว: เซนเซอร์ไม่มีตัวสะท้อนแสงโปรดสั่งซื้อแผ่นสะท้อนแสง)
| รายการ | E3ZM-CR ระยะการตรวจจับ | รุ่นสินค้า | ปริมาณ | หมายเหตุ | |
|---|---|---|---|---|---|
| ระยะทั่วไป | ระยะอ้างอิง | ||||
| ตัวสะท้อนแสงทนทานต่อน้ำมัน | 2.5 ม. (100 มม.) * | - | E39-R1R | 1 |
|
Note: Refer to Reflectors on E39-L/E39-S/E39-R on your OMRON website for details.
* ค่าในวงเล็บระบุระยะห่างขั้นต่ำที่ต้องการระหว่างเซนเซอร์และตัวสะท้อนแสง
ข้อมูลทางเทคนิค | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
Sensors
| Sensing method | Through-beam | Retro-reflective with MSR function | Diffuse-reflective | |
|---|---|---|---|---|
| Model | NPN output | E3ZR-CT61[] (-M1TJ) | E3ZR-CR61[] (-M1TJ) | E3ZR-CD61[] (-M1TJ) |
| PNP output | E3ZR-CT81[] (-M1TJ) | E3ZR-CR81[] (-M1TJ) | E3ZR-CD81[] (-M1TJ) | |
| Sensing distance | 30 m | 2.5 m [100 mm] *1 (Using E39-R1R) |
0.5 m (White paper 300 × 300 mm) |
|
| Standard sensing object | Opaque: 12-mm dia. min. | Opaque: 75-mm dia. min. | - | |
| Differential travel | --- | 20% of sensing distance max. | ||
| Directional angle | Emitter, Receiver: 3° to 15° (Distance between emitter and receiver. Rated sensing distance) |
Sensor: 2° to 10° Reflector: 30° (Distance to Reflector. Rated sensing distance) |
-- | |
| Light source (wavelength) | Red LED (624 nm) | Red LED (660 nm) | Red LED (624 nm) | |
| Power supply voltage | 12 to 24 VDC ±10%, ripple (p-p) 10% max. | |||
| Current consumption | 35 mA max. (Emitter 15 mA max., Receiver 20 mA max.) |
30 mA max. | ||
| Control output | Output power supply voltage: 26.4 VDC max., Output current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) |
|||
| Protection circuits | Reversed power supply polarity protection, output short-circuit protection, and reversed output polarity protection | Reversed power supply polarity protection, output short-circuit protection, reversed output polarity protection, and mutual interference prevention function (with up to two Units) | ||
| Response time | Operate or reset: 1 ms max. | |||
| Sensitivity adjustment | None | |||
| Ambient illumination (Receiver side) | Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max. | |||
| Ambient temperature range | Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation) | |||
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | |||
| Insulation resistance | 20 MΩ min. at 500 VDC | |||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | |||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Shock resistance | Destruction: 1,000 m/s2 3 times each in X, Y, and Z directions | |||
| Degree of protection | IP67 (IEC 60529) and IP67G *2 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *3 (Cutting oil type: specified in JIS K 2241:2000; Temperature: 35°C max.) |
|||
| Connection method | Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 0.3 m) | |||
| Indicators | Operation indicator (orange) and stability indicator (green) (The Emitter has only a power indicator (green).) | |||
| Weight (packed state) | Pre-wired models |
Approx. 200 g | Approx. 100 g | |
| Pre-wired connector |
Approx. 140 g | Approx. 70 g | ||
| Housing material | SUS316L | |||
| Cable material | Fluororesin | |||
| Lens material | Methacrylate resin (Oil-resistant high molecular weight type) | |||
| Indicator material | Polyetherimide resin | |||
| Accessories | Instruction manual | |||
*1. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
*2. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*3. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
The Pre-wired Connector Model meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered.
And as for the Pre-wired Models, the degree of protection is not satisfied with the part where cable wires are uncovered.
Accessories (Sold Separately)
Reflector
| Name | Oil-resistant Reflector |
|---|---|
| Model | E39-R1R |
| Directional angle | 30° min. |
| Ambient temperature range | Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Degree of protection | IP67 (IEC 60529) and IP67G *1 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *2 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35°C max.) |
*1. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*2. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
ขนาด | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
Sensors
Through-beam Models*
Pre-wired Models
E3ZR-CT61[]
E3ZR-CT81[]
Retro-reflective Models
Pre-wired Models
E3ZR-CR61[]
E3ZR-CR81[]
Diffuse-reflective Models
Pre-wired Models
E3ZR-CD61[]
E3ZR-CD81[]
*Models numbers for Through-beam Sensors (E3ZR-CT[]1[](-M1TJ)) are for sets that include both the Emitter and Receiver.
The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3ZR-CT61L-L 2M), the model number of the Receiver, by adding "-D" (example: E3ZR-CT61L-D 2M.) Refer to Ordering Information to confirm model numbers for Emitters and Receivers.
Cable bend radius
Accessories (Sold Separately)
Oil-resistant Reflector
E39-R1R
Material
Reflective surface: Methacrylate resin (Oil-resistant high molecular weight type)
Rear surface: Aluminium
Oil-resistant M3 special screws: Stainless steel (SUS302)
Slits
E39-S77A
E39-S77B
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L153
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L104
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L98
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L196
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
Mounting Bracket
E39-L197
Note: Material Stainless (SUS304)
Photoelectric Sensor Accessory are installed (Example of E3ZR-CT61L)
คุณสมบัติ | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
- สายพลาสติกที่ทนทายต่อน้ำมันหล่อลื่นอย่างมาก
- วิธีการปิดผนึกที่ป้องกันไม่ให้มีช่องว่างที่ข้อต่อ ปิดกั้นน้ำมันหล่อลื่น
- ระดับการป้องกัน IP67G * (JIS C 0920)
ข้อมูลจำเพาะ | Photoelectric Sensor Built-in Amplifier - E3ZR-C series
| Photoelectric Sensor Built-in Amplifier - E3ZR-C series | |
|---|---|
| วิธีการตรวจจับ | Through-beam, Retro-reflective, Diffuse-reflective |
| ระยะตรวจจับ | 0.5 ม., 2.5 ม., 30 ม. |
| แรงดันไฟฟ้า | 12 ถึง 24 VDC ± 10% |
| การใช้กระแส | สูงสุด 30 มิลลิแอมป์, สูงสุด 35 มิลลิแอมป์ |
| เวลาตอบสนองสูงสุด | 1 มิลลิวินาที |
| ระดับการป้องกัน | IP67, IP67G |
| วัสดุโครงสร้าง | พลาสติกฟลูออเรซิ่น |
Technology Instrument
T.U Pack
Your Lift
