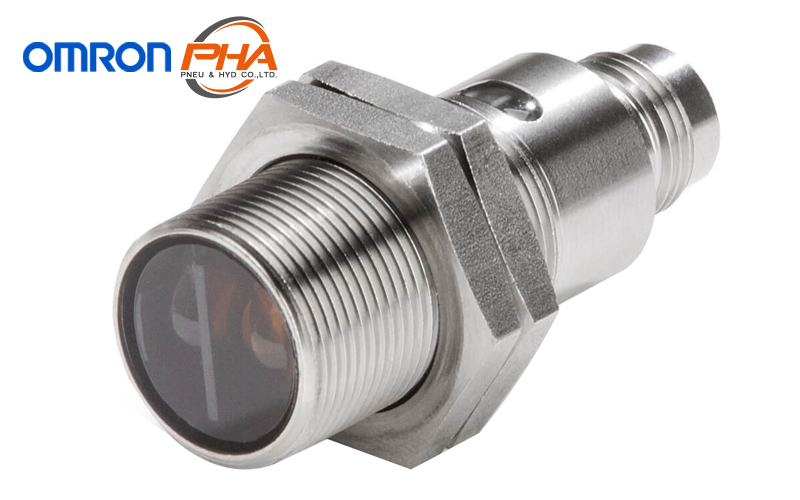

Photoelectric Sensor Built-in Amplifier - E3FC series

Download PDF

Model Numbers

Specifications

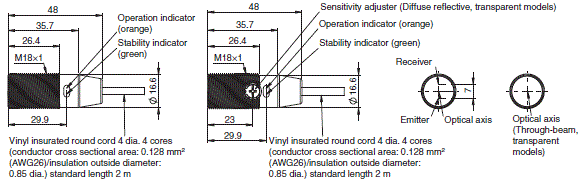

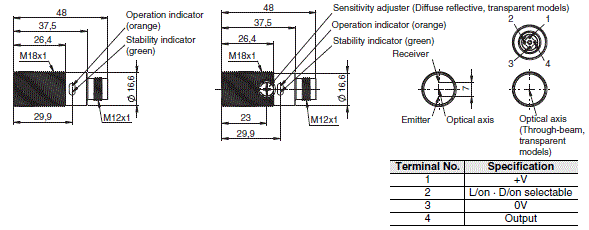

Dimensions

Features

Model Numbers | Photoelectric Sensor Built-in Amplifier - E3FC series

Sensor type	Sensing distance	Connection method	Model
Sensor type	Sensing distance	Connection method	NPN output	PNP output
Through-beam	Red light 20 m	pre-wired	*E3FC-TN11 2M ^1**	*E3FC-TP11 2M ^1**
Through-beam	Red light 20 m	M12 connector	*E3FC-TN21 ^1**	*E3FC-TP21 ^1**
Retro-reflective with MSR function ^*2	Red light 0.1 to 4m with E3P R1S	pre-wired	E3FC-RN11 2M	E3FC-RP11 2M
Retro-reflective with MSR function ^*2	Red light 0.1 to 4m with E3P R1S	M12 connector	E3FC-RN21	E3FC-RP21
Diffusive-reflective^*3	Red light 300 mm	pre-wired	E3FC-DN12 2M	E3FC-DP12 2M
	Red light 300 mm	M12 connector	E3FC-DN22	E3FC-DP22
	Red light 1 m	pre-wired	E3FC-DN13 2M	E3FC-DP13 2M
	Red light 1 m	M12 connector	E3FC-DN23	E3FC-DP23
	Infrared light 300 mm	pre-wired	E3FC-DN15 2M	E3FC-DP15 2M
	Infrared light 300 mm	M12 connector	E3FC-DN25	E3FC-DP25
	Infrared light 1 m	pre-wired	E3FC-DN16 2M	E3FC-DP16 2M
	Infrared light 1 m	M12 connector	E3FC-DN26	E3FC-DP26
BGS^*2(background suppression)	Red light 100 mm	pre-wired	E3FC-LN11 2M	E3FC-LP11 2M
	Red light 100 mm	M12 connector	E3FC-LN21	E3FC-LP21
	Red light 200 mm	pre-wired	E3FC-LN12 2M	E3FC-LP12 2M
	Red light 200 mm	M12 connector	E3FC-LN22	E3FC-LP22
Transparent object detection (co-axial retro-reflective with MSR^*2)	Red light 100 to 500 mm with E39-RP1	pre-wired	E3FC-BN11 2M	E3FC-BP11 2M
	Red light 100 to 500 mm with E39-RP1	M12 connector	E3FC-BN21	E3FC-BP21

^*1 The set type includes the emitter and receiver.
^*2 The Reflector is sold separately. Select the Reflector model most suited to the application.
^*3 L-On fixed output available for Diffuse reflective and BGS models. Please add "A" in order code (e.g. E3FC-DP11A 2M)

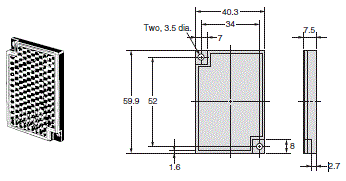

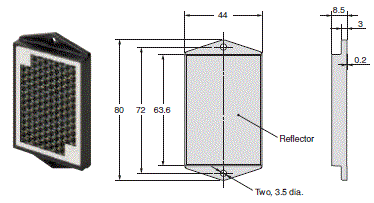

Reflectors

Reflectors required for Retro-reflective Sensors: A Reflector is not provided with the Sensor. Be sure to order a Reflector separately.

Sensing distance	Model	Material	Remarks
0.1 to 4 m	E39-R1S	ABS, PMMA	IP67
0.1 to 4 m	E39-R50	PET	IP67, IP69K Ecolab tested plastic material
0 to 500 mm	E39-RP1	ABS, PMMA	for E3FC-B, enhanced PET detection, IP67

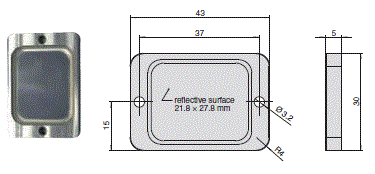

0.1 to 2 m	E39-R16	SUS316L, glass (window)	enchanced chemical resistance for pharma industry IP67, IP68, IP69K

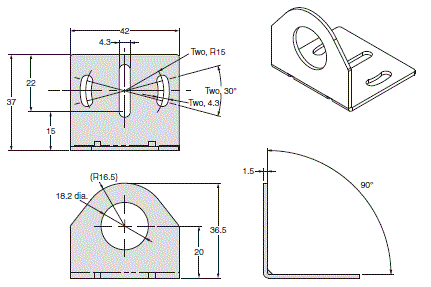

Mounting brackets

A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.

Sensors	Appearance	Model(Material)	Material	Remarks
all types		E39-L183	SUS304	Mounting bracket

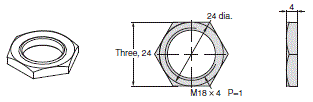

all types		E39-EL16	SUS316L	M18 Flush mounting nut

Sensor I/O connectors

Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.

Sensor	Model	Material	Appearance	Cable type		Model
M12 connector types	Detergent resistant connector cable	Cable: Detergent resistant PVC Connector: SUS316L	Straight	2 m	4-wire	Y92E-S12PVC4S2M-L
			Straight	5 m		Y92E-S12PVC4S5M-L
			Angle	2 m		Y92E-S12PVC4A2M-L
			Angle	5 m		Y92E-S12PVC4A5M-L

Specifications | Photoelectric Sensor Built-in Amplifier - E3ZM series

Sensing method: Through-beam and Retro-reflective with MSR function

Model Item	Sensing Method		Through-beam	Retro-Reflective with MSR function
	NPN output	Pre-wired	E3FC-TN11 2M	E3FC-RN11 2M
	NPN output	M12 Connector	E3FC-TN21	E3FC-RN21
	PNP output	Pre-wired	E3FC-TP11 2M	E3FC-RP11 2M
	PNP output	M12 Connector	E3FC-TP21	E3FC-RP21
Sensing distance			20m	0.1 to 4 m (with E39-R1S)
Spot diameter			-
Standard sensing object			Opaque: 7 mm dia.min.	Opaque: 75 mm dia.min.
Differential travel			-
Directional angle			2? min.
Light source (wavelength)			Red LED (624 nm)	Red LED (624 nm)
Power supply voltage			10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption			40 mA max. (Emitter 25 mA max. Receiver 15 mA max.)	25 mA max.
Control output</tdth			NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode			Light-ON/Dark-ON selectable by wiring *1.
Indicator			Operation indicator (orange) Stability indicator (green) Power indicator (green): only Emitter of Through-beam
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			0.5 ms
Sensitivity adjustment			Fixed
Ambient Illumination (Reciever side)			Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -25 to 55?C/ Storage: -30 to 70?C (with no icing or condensation)
Ambient humidity range			Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance			20 M? min. at 500 VDC
Dielectric strength			1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance			Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection			IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.
Weight	Pre-wired cable (2M)		152 g	76 g
Weight	Connector		44 g	22 g
Material	Case		SUS 316L (1.4404)
	Lens and Display		PMMA
	Adjuster		-
	Nut		SUS 316L (1.4404)
Accessories			Instruction sheet M18 nuts (4 pcs)	Instruction sheet M18 nuts (2 pcs)

Sensing method: Diffuse-reflective

Model Item	Sensing Method		Diffuse-reflective
	NPN output	Pre-wired	E3FC-DN12 2M	E3FC-DN13 2M	E3FC-DN15 2M	E3FC-DN16 2M
	NPN output	M12 Connector	E3FC-DN22	E3FC-DN23	E3FC-DN25	E3FC-DN26
	PNP output	Pre-wired	E3FC-DP12 2M	E3FC-DP13 2M	E3FC-DP15 2M	E3FC-DP16 2M
	PNP output	M12 Connector	E3FC-DP22	E3FC-DP23	E3FC-DP25	E3FC-DP26
Sensing distance			300 mm (white paper:300 x 300 mm)	1 m (white paper: 300 x 300 mm)	300 mm (white paper: 300 x 300 mm)	1 m (white paper: 300 x 300 mm)
Spot diameter (reference value)			40 x 50 mm Sensing distance of 300 mm	120 x 150 mm Sensing distance of 1 m	40 x 50 mm Sensing distance of 300 mm	120 x 150 mm Sensing distance of 1 m
Standard sensing object			-
Differential travel			20% max.
Directional angle			-
Light source (wavelength)			Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage			10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption			25 mA max.
Control output			NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode			Light-ON/Dark-ON selectable by wiring *3.
Indicator			Operation indicator (orange) Stability indicator (green)
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			0.5 ms
Sensitivity adjustment			One-turn adjuster
Ambient Illumination			Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -25 to 55?C/ Storage: -30 to 70?C (with no icing or condensation)
Ambient humidity range			Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance			20 M? min. at 500 VDC
Dielectric strength			1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance			Destruction: 500 m/s^*2 3 times each in X, Y and Z directions
Degree of protection			IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.
Weight	Pre-wired cable (2M)		76 g
Weight	Connector		22 g
Material	Case		SUS 316L (1.4404)
	Lens and Display		PMMA
	Adjuster		POM
	Nut		SUS 316L (1.4404)
Accessories			Instruction sheet M18 nuts (2 pcs)

Sensing method: BGS and Transparent detected with p-opaquing function

Model Item	Sensing Method		BGS (Background suppression )		Transparent detected with P-opaquing function
	NPN output	Pre-wired	E3FC-LN11 2M	E3FC-LN12 2M	E3FC-BN11 2M
	NPN output	M12 Connector	E3FC-LN21	E3FC-LN22	E3FC-BN21
	PNP output	Pre-wired	E3FC-LP11 2M	E3FC-LP12 2M	E3FC-BP11 2M
	PNP output	M12 Connector	E3FC-LP21	E3FC-LP22	E3FC-BP21
Sensing distance			100 mm (white paper: 300 x 300 mm)	200 mm (white paper: 300 x 300 mm)	100 to 500 mm (with E39-RP1)
Spot diameter (reference value)			10 x 10 mm Sensing distance of 100 mm	10 x 15 mm Sensing distance of 200 mm	-
Standard sensing object			-		glass (t = 1.0 mm): 150 ? 150 mm
Differential travel			20% max.		-
Directional angle			-
Light source (wavelength)			Red LED (624 nm)
Power supply voltage			10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption			25 mA max.
Control output			NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode			Light-ON/Dark-ON selectable by wiring *1.
Indicator			Operation indicator (orange) Stability indicator (green)
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			0.5 ms
Sensitivity adjustment			Fixed		One-turn adjuster
Ambient Illumination			Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -25 to 55?C/ Storage: -30 to 70?C(with no icing or condensation)
Ambient humidity range			Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance			20 M? min. at 500 VDC
Dielectric strength			1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance			Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection			IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.		IEC: IP67, DIN 40050-9: IP69K *3
Weight	Pre-wired cable (2M)		76 g		Approx. 95 g/Approx. 65 g
Weight	Connector		22 g		Approx. 50 g/Approx. 20 g
Material	Case		SUS 316L (1.4404)
	Lens and Display		PMMA
	Adjuster		-		POM
	Nut		SUS 316L (1.4404)
Accessories			Instruction sheet M18 nuts (2 pcs)

L-On fixed output available for Diffuse reflective and BGS models. Please add "A" in order code (e.g. E3FC-DP11A 2M)
IP68 Degree of Protection Specifications IP68 is defined by heat shock resistance with 20 test cycles of 30 min. changing between 3? and 60? surface tensioned water.
IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80?C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0?, 30?, 60?, and 90? from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Engineering Data (Reference Value)

Parallel Operating Range

Through-beam Models

E3FC-T[]

Retro-reflective Models (with MSR function)

E3FC-R[]

Operating Range

Diffuse-reflective Models

E3FC-D[]2

E3FC-D[]3

E3FC-D[]5

E3FC-D[]6

BGS Models

E3FC-L[]1, E3FC-L[]2

Transparent object detection models

E3FC-B[]1

Excess Gain vs. Distance

Through-beam Models

E3FC-T[]

Retro-reflective Models (with MSR function)

E3FC-R[]

Diffuse-reflective Models

E3FC-D[]2

E3FC-D[]3

E3FC-D[]5

E3FC-D[]6

Transparent object detection models

E3FC-B[]1

Sensing Distance vs. Sensing Object Material

BGS Models

E3FC-L[]1

E3FC-L[]2

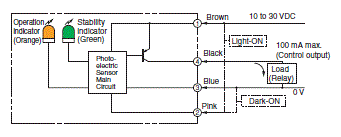

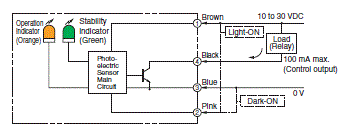

Output circuit diagram

PNP Output

MODEL: E3FC-TP[], E3FC-RP[], E3FC-DP[], E3FC-BP[]

Operation mode	Operation selector	Output circuit
Light-ON	Connect the pink wire Pin(2)) to the brown (Pin(1))	Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON	Connect the pink wire (Pin(2)) to the blue (Pin(3)) or open the pink wire (Pin(2))

MODEL: E3FC-LP[]

Operation mode	Timing charts	Operation selector	Output circuit
Light-ON		Connect the pink wire (Pin(2)) to the brown (Pin(1))	Background suppression
Dark-ON		Connect the pink wire (Pin(2)) to the blue (Pin(3)) or open the pink wire (Pin(2))	Background suppression

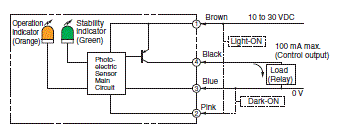

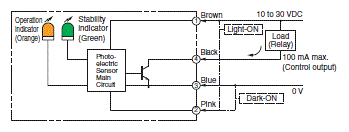

NPN Output

MODEL: E3FC-TN[], E3FC-RN[], E3FC-DN[], E3FC-BN[]

Operation mode	Operation selector	Output circuit
Light-ON	Connect the pink wire (Pin(2)) to the brown (Pin(1)) or open the pink wire (Pin(2))	Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON	Connect the pink wire (Pin(2)) to the blue (Pin(3))

MODEL: E3FC-LN[]

Operation mode	Timing charts	Operation selector	Output circuit
Light-ON		Connect the pink wire (Pin(2)) to the brown (Pin(1)) or open the pink wire (Pin(2))	Background suppression
Dark-ON		Connect the pink wire (Pin(2)) to the blue (Pin(3))	Background suppression

Connector Pin Arrangement

M12 Connector Pin Arrangement

Connectors (Sensor I/O connectors)

M12 4-wire Connectors

Classification	Wire color	Connector pin No.	Application
DC	Brown	1	Power supply (+V)
	White	2	L/on • D/on selectable
	Blue	3	Power supply (0 V)
	Black	4	Output

Precautions for Safe Use

Be sure to follow the safety precautions below for added safety.

Do not use the sensor under the environment with explosive, flammable or corrosive gas.
Do not use the sensor under the oil or chemical environment exceeding specifications. Performance is assured for typical detergents and disinfectants used in Food & Beverage industry.

Refer to the following table when using these agents:

Manufacturer	Product name	Concen- tration	Testtime
Diversey	Diverfoam SMS HD	5%	720 h
	Oxofoam	5%	720 h
	Acifoam	5%	720 h
	Divosan Hypochlorit	1%	720 h
	Divosan Forte	1%	720 h
Ecolab	P3-topactive? 200	5%	720 h
	P3-topax? 56	5%	720 h
	P3-topactive? OKTO	3%	720 h
	P3-topax? 990	3%	720 h
	P3-topax? 66	3%	720 h
General	H₂O₂	6,5%	240 h

Do not use the sensor under the environment under the other conditions in excess of rated.
Do not use the sensor in place that is exposed by direct sunlight.
Do not use the sensor in place where the sensor may receive direct vibration or shock.
Do not use the thinner, alcohol, or other organic solvents.
Never disassemble, repair nor tamper with the sensor.
Please process it as industrial waste.

Dimensions | Photoelectric Sensor Built-in Amplifier - E3FC series

Sensors

(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Pre-wired Models

E3FC-T[]1[]
E3FC-R[]1[]
E3FC-D[]1[]
E3FC-L[]1[]
E3FC-B[]1[]

M12 Connector Models

E3FC-T[]2[]
E3FC-R[]2[]
E3FC-D[]2[]
E3FC-L[]2[]
E3FC-B[]2[]

Attached nut

Accessories (Order Separately)

Reflectors

E39-R1S

E39-R50

E39-RP1

E39-R16

Mounting brackets

E39-L183

Flush mounting nut

E39-EL16

Features | Photoelectric Sensor Built-in Amplifier - E3FC series

High grade steel housing (SUS316L)
Withstands heat shock conditions
Epoxy resin preventing water ingress if connector is not fixed properly
Proven with various industrial detergents of Ecolab and Diversey (Details see page 10)
Bright visible red LED enabling easy alignment

Properties | Photoelectric Sensor Built-in Amplifier - E3FC series

Photoelectric Sensor Built-in Amplifier	E3FC
Sensing Method	Throuh-beam, Retro-Reflective, Diffuse-reflective, BGS, Transparent detected
Sensing distance	100 mm
	200 mm
	300 mm
	100 - 500 mm
	1m
	0.1 - 4 m
	20 m
Power supply voltage	10 - 30 VDC
Current consumption	25 mA max, 40 mA max
Response time	0.5 ms
Degree of protection	IP67, IP68, IP69K
MaterialCase	SUS 316L

Photoelectric Sensor Built-in Amplifier - E3FC series

ดาวน์โหลดไฟล์ PDF

เลือกรุ่นสินค้า

ข้อมูลทางเทคนิค

ขนาด

คุณสมบัติ

เลือกรุ่นสินค้า | Photoelectric Sensor Built-in Amplifier - E3FC series

เซ็นเซอร์

ชนิดเซ็นเซอร์	ระยะการตรวจจับ	วิธีการเชื่อมต่อ	รุ่นสินค้า
ชนิดเซ็นเซอร์	ระยะการตรวจจับ	วิธีการเชื่อมต่อ	เอาต์พุต NPN	เอาต์พุต PNP
Through-beam	แสงสีแดง 20 ม.	มีสายใน	*E3FC-TN11 2M ^1**	*E3FC-TP11 2M ^1**
Through-beam	แสงสีแดง 20 ม.	คอนเนคเตอร์ M12	*E3FC-TN21 ^1**	*E3FC-TP21 ^1**
Retro-reflective with MSR function ^*2	แสงสีแดง 0.1 ถึง 4ม.กับ E3P R1S	มีสายในตัว	E3FC-RN11 2M	E3FC-RP11 2M
Retro-reflective with MSR function ^*2	แสงสีแดง 0.1 ถึง 4ม.กับ E3P R1S	คอนเนคเตอร์ M12	E3FC-RN21	E3FC-RP21
Diffusive-reflective^*3	แสงสีแดง 300 มม.	มีสายในตัว	E3FC-DN12 2M	E3FC-DP12 2M
	แสงสีแดง 300 มม.	คอนเนคเตอร์ M12	E3FC-DN22	E3FC-DP22
	แสงสีแดง 1 ม.	แสงอินฟราเรด 300 มม.	E3FC-DN13 2M	E3FC-DP13 2M
	แสงสีแดง 1 ม.	คอนเนคเตอร์ M12	E3FC-DN23	E3FC-DP23
	แสงอินฟราเรด 1 ม.	มีสายในตัว	E3FC-DN15 2M	E3FC-DP15 2M
	แสงอินฟราเรด 1 ม.	คอนเนคเตอร์ M12	E3FC-DN25	E3FC-DP25
	แสงอินฟราเรด 1 ม.	มีสายในตัว	E3FC-DN16 2M	E3FC-DP16 2M
	แสงอินฟราเรด 1 ม.	คอนเนคเตอร์ M12	E3FC-DN26	E3FC-DP26
BGS^*2(background suppression)	แสงสีแดง 100 มม.	มีสายในตัว	E3FC-LN11 2M	E3FC-LP11 2M
	แสงสีแดง 100 มม.	คอนเนคเตอร์ M12	E3FC-LN21	E3FC-LP21
	แสงสีแดง 200 มม.	มีสายในตัว	E3FC-LN12 2M	E3FC-LP12 2M
	แสงสีแดง 200 มม.	คอนเนคเตอร์ M12	E3FC-LN22	E3FC-LP22
Transparent object detection (co-axial retro-reflective with MSR^*2)	แสงสีแดง 100 ถึง 500 มม. with E39-RP1	มีสายในตัว	E3FC-BN11 2M	E3FC-BP11 2M
	แสงสีแดง 100 ถึง 500 มม. with E39-RP1	คอนเนคเตอร์ M12	E3FC-BN21	E3FC-BP21

ประเภทชุดประกอบด้วยตัวส่งและตัวรับ
แผ่นสะท้อนแสงแยกจำหน่าย เลือกรุ่น Reflector ที่เหมาะกับการใช้งานมากที่สุด
เอาต์พุตคงที่ L-On สำหรับรุ่น Diffuse reflective และ BGS โปรดเพิ่ม "A" ในรหัสคำสั่งซื้อ (เช่น E3FC-DP11A 2M)

อุปกรณ์เสริม (สั่งซื้อแยก)

ตัวสะท้อนแสงที่จำเป็นสำหรับเซนเซอร์แบบ Retro-reflective: เซนเซอร์นี้ไม่มีแผ่นสะท้อนแสงมาด้วย อย่าลืมสั่งซื้อแผ่นสะท้อนแสงแยกต่างหาก

ระยะตรวจจับ	รุ่น	วัสดุ	หมายเหตุ
0.1 ถึง 4 ม.	E39-R1S	ABS, PMMA	IP67
0.1 ถึง 4 ม.	E39-R50	PET	IP67, IP69K Ecolab ทดสอบวัสดุพลาสติก
0 ถึง 500 มม.	E39-RP1	ABS, PMMA	สำหรับ E3FC-B, การตรวจจับ PET ที่เพิ่มขึ้น, IP67
0.1 ถึง 2 ม.	E39-R16	SUS316L, glass (หน้าต่าง)	เพิ่มความทนทานต่อสารเคมีสำหรับอุตสาหกรรมยา IP67, IP68, IP69K

ขายึด

ไม่ได้ติดขายึดกับเซนเซอร์ สั่งซื้อขายึดแยกต่างหากหากจำเป็น

เซนเซอร์	ลักษณะ	รุ่น(วัสดุ)	ปริมาณ	หมายเหตุ
ประเภท ทั้งหมด		E39-L183	SUS304	Mounting bracket
ประเภท ทั้งหมด		E39-EL16	SUS316L	M18 Flush mounting nut

คอนเนคเตอร์ I/O เซ็นเซอร์

สำหรับรุ่นคอนเนคเตอร์ : ไม่มีคอนเนคเตอร์มากับเซนเซอร์ อย่าลืมสั่งซื้อคอนเนคเตอร์แยกต่างหาก

เซนเซอร์	รุ่น	วัสดุ	ลักษณะ	ประเภทสาย		รุ่น
ประเภท คอนเนคเตอร์ M12	สายคอนเนคเตอร์ที่ทนต่อผงซักฟอก	สายเคเบิล: PVC ทนผงซักฟอก คอนเนคเตอร์: SUS316L	ตรง	2 ม.	4 สาย	Y92E-S12PVC4S2M-L
			ตรง	5 ม.		Y92E-S12PVC4S5M-L
			มุม	2 m		Y92E-S12PVC4A2M-L
			มุม	5 m		Y92E-S12PVC4A5M-L

ข้อมูลทางเทคนิค | Photoelectric Sensor Built-in Amplifier - E3ZM series

Sensing method: Through-beam and Retro-reflective with MSR function

Model Item	Sensing Method		Through-beam	Retro-Reflective with MSR function
	NPN output	Pre-wired	E3FC-TN11 2M	E3FC-RN11 2M
	NPN output	M12 Connector	E3FC-TN21	E3FC-RN21
	PNP output	Pre-wired	E3FC-TP11 2M	E3FC-RP11 2M
	PNP output	M12 Connector	E3FC-TP21	E3FC-RP21
Sensing distance			20m	0.1 to 4 m (with E39-R1S)
Spot diameter			-
Standard sensing object			Opaque: 7 mm dia.min.	Opaque: 75 mm dia.min.
Differential travel			-
Directional angle			2? min.
Light source (wavelength)			Red LED (624 nm)	Red LED (624 nm)
Power supply voltage			10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption			40 mA max. (Emitter 25 mA max. Receiver 15 mA max.)	25 mA max.
Control output</tdth			NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode			Light-ON/Dark-ON selectable by wiring *1.
Indicator			Operation indicator (orange) Stability indicator (green) Power indicator (green): only Emitter of Through-beam
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			0.5 ms
Sensitivity adjustment			Fixed
Ambient Illumination (Reciever side)			Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -25 to 55?C/ Storage: -30 to 70?C (with no icing or condensation)
Ambient humidity range			Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance			20 M? min. at 500 VDC
Dielectric strength			1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance			Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection			IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.
Weight	Pre-wired cable (2M)		152 g	76 g
Weight	Connector		44 g	22 g
Material	Case		SUS 316L (1.4404)
	Lens and Display		PMMA
	Adjuster		-
	Nut		SUS 316L (1.4404)
Accessories			Instruction sheet M18 nuts (4 pcs)	Instruction sheet M18 nuts (2 pcs)

Sensing method: Diffuse-reflective

Model Item	Sensing Method		Diffuse-reflective
	NPN output	Pre-wired	E3FC-DN12 2M	E3FC-DN13 2M	E3FC-DN15 2M	E3FC-DN16 2M
	NPN output	M12 Connector	E3FC-DN22	E3FC-DN23	E3FC-DN25	E3FC-DN26
	PNP output	Pre-wired	E3FC-DP12 2M	E3FC-DP13 2M	E3FC-DP15 2M	E3FC-DP16 2M
	PNP output	M12 Connector	E3FC-DP22	E3FC-DP23	E3FC-DP25	E3FC-DP26
Sensing distance			300 mm (white paper:300 x 300 mm)	1 m (white paper: 300 x 300 mm)	300 mm (white paper: 300 x 300 mm)	1 m (white paper: 300 x 300 mm)
Spot diameter (reference value)			40 x 50 mm Sensing distance of 300 mm	120 x 150 mm Sensing distance of 1 m	40 x 50 mm Sensing distance of 300 mm	120 x 150 mm Sensing distance of 1 m
Standard sensing object			-
Differential travel			20% max.
Directional angle			-
Light source (wavelength)			Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage			10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption			25 mA max.
Control output			NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode			Light-ON/Dark-ON selectable by wiring *3.
Indicator			Operation indicator (orange) Stability indicator (green)
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			0.5 ms
Sensitivity adjustment			One-turn adjuster
Ambient Illumination			Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -25 to 55?C/ Storage: -30 to 70?C (with no icing or condensation)
Ambient humidity range			Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance			20 M? min. at 500 VDC
Dielectric strength			1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance			Destruction: 500 m/s^*2 3 times each in X, Y and Z directions
Degree of protection			IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.
Weight	Pre-wired cable (2M)		76 g
Weight	Connector		22 g
Material	Case		SUS 316L (1.4404)
	Lens and Display		PMMA
	Adjuster		POM
	Nut		SUS 316L (1.4404)
Accessories			Instruction sheet M18 nuts (2 pcs)

Sensing method: BGS and Transparent detected with p-opaquing function

Model Item	Sensing Method		BGS (Background suppression )		Transparent detected with P-opaquing function
	NPN output	Pre-wired	E3FC-LN11 2M	E3FC-LN12 2M	E3FC-BN11 2M
	NPN output	M12 Connector	E3FC-LN21	E3FC-LN22	E3FC-BN21
	PNP output	Pre-wired	E3FC-LP11 2M	E3FC-LP12 2M	E3FC-BP11 2M
	PNP output	M12 Connector	E3FC-LP21	E3FC-LP22	E3FC-BP21
Sensing distance			100 mm (white paper: 300 x 300 mm)	200 mm (white paper: 300 x 300 mm)	100 to 500 mm (with E39-RP1)
Spot diameter (reference value)			10 x 10 mm Sensing distance of 100 mm	10 x 15 mm Sensing distance of 200 mm	-
Standard sensing object			-		glass (t = 1.0 mm): 150 ? 150 mm
Differential travel			20% max.		-
Directional angle			-
Light source (wavelength)			Red LED (624 nm)
Power supply voltage			10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
Current consumption			25 mA max.
Control output			NPN/PNP (open collector) Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
Operation mode			Light-ON/Dark-ON selectable by wiring *1.
Indicator			Operation indicator (orange) Stability indicator (green)
Protection circuits			Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Response time			0.5 ms
Sensitivity adjustment			Fixed		One-turn adjuster
Ambient Illumination			Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
Ambient temperature range			Operating: -25 to 55?C/ Storage: -30 to 70?C(with no icing or condensation)
Ambient humidity range			Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
Insulation resistance			20 M? min. at 500 VDC
Dielectric strength			1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
Vibration resistance			Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
Shock resistance			Destruction: 500 m/s² 3 times each in X, Y and Z directions
Degree of protection			IEC: IP67, IP68 2., DIN 40050-9: IP69K 3.		IEC: IP67, DIN 40050-9: IP69K *3
Weight	Pre-wired cable (2M)		76 g		Approx. 95 g/Approx. 65 g
Weight	Connector		22 g		Approx. 50 g/Approx. 20 g
Material	Case		SUS 316L (1.4404)
	Lens and Display		PMMA
	Adjuster		-		POM
	Nut		SUS 316L (1.4404)
Accessories			Instruction sheet M18 nuts (2 pcs)

L-On fixed output available for Diffuse reflective and BGS models. Please add "A" in order code (e.g. E3FC-DP11A 2M)
IP68 Degree of Protection Specifications IP68 is defined by heat shock resistance with 20 test cycles of 30 min. changing between 3? and 60? surface tensioned water.
IP69K Degree of Protection Specifications IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards. The test item is sprayed with 80?C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water water is 14 to 16 liters per minute. The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0?, 30?, 60?, and 90? from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Engineering Data (Reference Value)

Parallel Operating Range

Through-beam Models

E3FC-T[]

Retro-reflective Models (with MSR function)

E3FC-R[]

Operating Range

Diffuse-reflective Models

E3FC-D[]2

E3FC-D[]3

E3FC-D[]5

E3FC-D[]6

BGS Models

E3FC-L[]1, E3FC-L[]2

Transparent object detection models

E3FC-B[]1

Excess Gain vs. Distance

Through-beam Models

E3FC-T[]

Retro-reflective Models (with MSR function)

E3FC-R[]

Diffuse-reflective Models

E3FC-D[]2

E3FC-D[]3

E3FC-D[]5

E3FC-D[]6

Transparent object detection models

E3FC-B[]1

Sensing Distance vs. Sensing Object Material

BGS Models

E3FC-L[]1

E3FC-L[]2

Output circuit diagram

PNP Output

MODEL: E3FC-TP[], E3FC-RP[], E3FC-DP[], E3FC-BP[]

Operation mode	Operation selector	Output circuit
Light-ON	Connect the pink wire Pin(2)) to the brown (Pin(1))	Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON	Connect the pink wire (Pin(2)) to the blue (Pin(3)) or open the pink wire (Pin(2))

MODEL: E3FC-LP[]

Operation mode	Timing charts	Operation selector	Output circuit
Light-ON		Connect the pink wire (Pin(2)) to the brown (Pin(1))	Background suppression
Dark-ON		Connect the pink wire (Pin(2)) to the blue (Pin(3)) or open the pink wire (Pin(2))	Background suppression

NPN Output

MODEL: E3FC-TN[], E3FC-RN[], E3FC-DN[], E3FC-BN[]

Operation mode	Operation selector	Output circuit
Light-ON	Connect the pink wire (Pin(2)) to the brown (Pin(1)) or open the pink wire (Pin(2))	Through-beam Receivers, Retro-reflective Models, Diffuse-reflective Models
Dark-ON	Connect the pink wire (Pin(2)) to the blue (Pin(3))

MODEL: E3FC-LN[]

Operation mode	Timing charts	Operation selector	Output circuit
Light-ON		Connect the pink wire (Pin(2)) to the brown (Pin(1)) or open the pink wire (Pin(2))	Background suppression
Dark-ON		Connect the pink wire (Pin(2)) to the blue (Pin(3))	Background suppression

Connector Pin Arrangement

M12 Connector Pin Arrangement

Connectors (Sensor I/O connectors)

M12 4-wire Connectors

Classification	Wire color	Connector pin No.	Application
DC	Brown	1	Power supply (+V)
	White	2	L/on • D/on selectable
	Blue	3	Power supply (0 V)
	Black	4	Output

Precautions for Safe Use

Be sure to follow the safety precautions below for added safety.

Do not use the sensor under the environment with explosive, flammable or corrosive gas.
Do not use the sensor under the oil or chemical environment exceeding specifications. Performance is assured for typical detergents and disinfectants used in Food & Beverage industry.

Refer to the following table when using these agents:

Manufacturer	Product name	Concen- tration	Testtime
Diversey	Diverfoam SMS HD	5%	720 h
	Oxofoam	5%	720 h
	Acifoam	5%	720 h
	Divosan Hypochlorit	1%	720 h
	Divosan Forte	1%	720 h
Ecolab	P3-topactive? 200	5%	720 h
	P3-topax? 56	5%	720 h
	P3-topactive? OKTO	3%	720 h
	P3-topax? 990	3%	720 h
	P3-topax? 66	3%	720 h
General	H₂O₂	6,5%	240 h

Do not use the sensor under the environment under the other conditions in excess of rated.
Do not use the sensor in place that is exposed by direct sunlight.
Do not use the sensor in place where the sensor may receive direct vibration or shock.
Do not use the thinner, alcohol, or other organic solvents.
Never disassemble, repair nor tamper with the sensor.
Please process it as industrial waste.

ขนาด | Photoelectric Sensor Built-in Amplifier - E3FC series

Sensors

(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Pre-wired Models

E3FC-T[]1[]
E3FC-R[]1[]
E3FC-D[]1[]
E3FC-L[]1[]
E3FC-B[]1[]

M12 Connector Models

E3FC-T[]2[]
E3FC-R[]2[]
E3FC-D[]2[]
E3FC-L[]2[]
E3FC-B[]2[]

Attached nut

Accessories (Order Separately)

Reflectors

E39-R1S

E39-R50

E39-RP1

E39-R16

Mounting brackets

E39-L183

Flush mounting nut

E39-EL16

คุณสมบัติ | Photoelectric Sensor Built-in Amplifier - E3FC series

ตัวเรือนเหล็กคุณภาพสูง (SUS316L)
ทนต่อสภาวะช็อกจากความร้อน
อีพอกซีเรซินป้องกันน้ำเข้าหากขั้วต่อไม่ได้รับการแก้ไขอย่างเหมาะสม
พิสูจน์ด้วยผงซักฟอกอุตสาหกรรมต่างๆ ของ Ecolab และ Diversey (รายละเอียดใน PDF [P.10])
ไฟ LED สีแดงที่มองเห็นได้เจนช่วยให้จัดตำแหน่งได้ง่าย

ข้อมูลจำเพาะ | Photoelectric Sensor Built-in Amplifier - E3FC series

Photoelectric Sensor Built-in Amplifier	E3FC
วิธีการตรวจจับ	Throuh-beam, Retro-Reflective, Diffuse-reflective, BGS, Transparent detected
ระยะตรวจจับ	100 mm
	200 mm
	300 mm
	100 - 500 mm
	1 m
	0.1 - 4 m
	20 m
แรงดันไฟฟ้า	10 - 30 VDC
กระแสใช้ไฟฟ้า	สูงสุด 25 มิลลิแอมป์, สูงสุด 40 มิลลิแอมป์
เวลาตอบสนอง	0.5 มิลลิวินาที
ระดับการป้องกัน	IP67, IP68, IP69K
วัสดุภายนอก	SUS 316L
