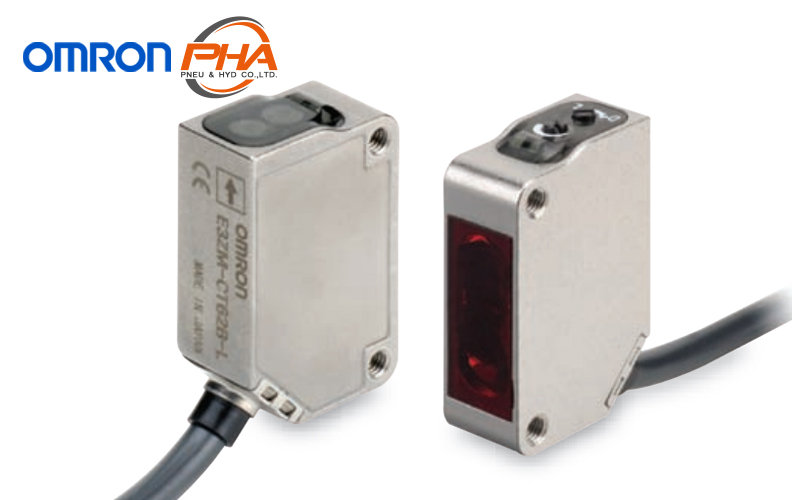

OMRON Photoelectric Sensor - E3ZM-C series
Photoelectric Sensor Built-in Amplifier - E3ZM-C series
Download PDF
Model Numbers | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
Sensors
| Sensing method | Appearance | Connection method | Sensing distance | Model | |
|---|---|---|---|---|---|
| NPN output | PNP output | ||||
| Through- beam (Emitter + Receiver) *1 |
 |
Pre-wired (2 m) | 15 m (Infrared light) |
E3ZM-CT61 2M Emitter E3ZM-CT61-L 2M Receiver E3ZM-CT61-D 2M |
E3ZM-CT81 2M Emitter E3ZM-CT81-L 2M Receiver E3ZM-CT81-D 2M |
| Pre-wired (5 m) | E3ZM-CT61 5M Emitter E3ZM-CT61-L 5M Receiver E3ZM-CT61-D 5M |
E3ZM-CT81 5M Emitter E3ZM-CT81-L 5M Receiver E3ZM-CT81-D 5M |
|||
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CT61-M1TJ 0.3M Emitter E3ZM-CT61-L-M1TJ 0.3M Receiver E3ZM-CT61-D-M1TJ 0.3M |
E3ZM-CT81-M1TJ 0.3M Emitter E3ZM-CT81-L-M1TJ 0.3M Receiver E3ZM-CT81-D-M1TJ 0.3M |
|||
| Pre-wired (2 m) | 20 m (Orange light) |
E3ZM-CT62B 2M Emitter E3ZM-CT62B-L 2M Receiver E3ZM-CT62B-D 2M |
E3ZM-CT82B 2M Emitter E3ZM-CT82B-L 2M Receiver E3ZM-CT82B-D 2M |
||
| Pre-wired (5 m) | E3ZM-CT62B 5M Emitter E3ZM-CT62B-L 5M Receiver E3ZM-CT62B-D 5M |
E3ZM-CT82B 5M Emitter E3ZM-CT82B-L 5M Receiver E3ZM-CT82B-D 5M |
|||
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CT62B-M1TJ 0.3M Emitter E3ZM-CT62B-L-M1TJ 0.3M Receiver E3ZM-CT62B-D-M1TJ 0.3M |
E3ZM-CT82B-M1TJ 0.3M Emitter E3ZM-CT82B-L-M1TJ 0.3M Receiver E3ZM-CT82B-D-M1TJ 0.3M |
|||
| Retro- reflective |
 *2 |
Pre-wired (2 m) | 4 m (100 mm) *3 (Using E39-R1S) (Red light) |
E3ZM-CR61 2M | E3ZM-CR81 2M |
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CR61-M1TJ 0.3M | E3ZM-CR81-M1TJ 0.3M | |||
| Diffuse- reflective |
 |
Pre-wired (2 m) | 1 m (Infrared light) |
E3ZM-CD62 2M | E3ZM-CD82 2M |
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CD62-M1TJ 0.3M | E3ZM-CD82-M1TJ 0.3M | |||
| BGS reflective (fixed distance) |
 |
Pre-wired (2 m) | 10 to 100 mm (Red light) |
E3ZM-CL61H 2M | E3ZM-CL81H 2M |
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CL61H-M1TJ 0.3M | E3ZM-CL81H-M1TJ 0.3M | |||
| Pre-wired (2 m) | 10 to 150 mm (Red light) |
E3ZM-CL62H 2M | E3ZM-CL82H 2M | ||
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CL62H-M1TJ 0.3M | E3ZM-CL82H-M1TJ 0.3M | |||
| Pre-wired (2 m) | 10 to 200 mm (Red light) |
E3ZM-CL64H 2M | E3ZM-CL84H 2M | ||
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CL64H-M1TJ 0.3M | E3ZM-CL84H-M1TJ 0.3M | |||
*1. Through-beam Sensors are normally sold in sets that include both the Emitter and Receiver.
*2. The Reflector is sold separately. Select the Reflector model most suited to the application.
*3. Set the distance between the Sensor and the Reflector so that it is at least the value in parentheses.
Accessories
Sensor I/O Connectors (Sockets on One Cable End)
(Models with Pre-wired Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)
| Size | Cable specifications | Appearance | Cable | Model | ||
|---|---|---|---|---|---|---|
| M12 (For -M1TJ models) |
Fire-retardant, robot cable |
Straight |  |
2 m | 4-wire | XS5F-D421-D80-F |
| 5 m | XS5F-D421-G80-F | |||||
| Oil-resistant cable (polyurethane) |
2 m | XS5F-D421-D80-P | ||||
| 5 m | XS5F-D421-G80-P | |||||
Note 1. When using a Through-beam Sensor, order one Connector for the Receiver and one for the Emitter. 2. Ask your OMRON representative about connectors with other specifications.
Mounting Brackets
(A Mounting Bracket is not provided with the Sensor. Order a Mounting Bracket separately if required.)
| Appearance | Model | Quantity | Remarks |
|---|---|---|---|
 |
E39-L153 (SUS304) |
1 | Mounting Brackets |
 |
E39-L104 (SUS304) |
1 | |
 |
E39-L43 (SUS304) |
1 | Horizontal Mounting Bracket * |
 |
E39-L142 (SUS304) |
1 | Horizontal Protective Cover Bracket * |
 |
E39-L44 (SUS304) |
1 | Rear Mounting Bracket |
 |
E39-L98 (SUS304) |
1 | Metal Protective Cover Bracket * |
 |
E39-L150 (SUS304) |
1 set | (Sensor adjuster) Easily mounted to the aluminum frame rails of conveyors and easily adjusted. For vertical angle adjustment |
 |
E39-L151 (SUS304) |
1 set | |
 |
E39-L144 (SUS304) |
1 | Compact Protective Cover Bracket * |
Note: When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.
* Cannot be used for Standard Connector models.
Reflector
(A Reflector is required for each Retro-reflective Sensor: A Reflector is not provided with the Sensor. Be sure to order a Reflector.)
| Name | E3ZM-CR sensing distance * | Model | Quantity | Remarks | |
|---|---|---|---|---|---|
| Rated value | Reference value | ||||
| Reflector | 3 m (100 mm) | - | E39-R1 | 1 | Reflectors are not provided with Retroreflective models. The MSR function is enabled. |
| 4 m (100 mm) | - | E39-R1S | 1 | ||
| - | 5 m (100 mm) | E39-R2 | 1 | ||
| - | 2.5 m (100 mm) | E39-R9 | 1 | ||
| - | 3.5 m (100 mm) | E39-R10 | 1 | ||
| Small Reflector | - | 1.5 m (50 mm) | E39-R3 | 1 | |
Note: If you use the Reflector at any distance other than the rated distance, make sure that the stability indicator lights properly when you install the Sensor. * Set the distance between the Sensor and the Reflector so that it is at least the value in parentheses.
Specifications | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
| Sensing method | Through-beam | Retro-reflective with MSR function | Diffuse-reflective | ||
|---|---|---|---|---|---|
| Model | NPN output | E3ZM-CT61 (-M1TJ) | E3ZM-CT62B (-M1TJ) | E3ZM-CR61 (-M1TJ) | E3ZM-CD62 (-M1TJ) |
| PNP output | E3ZM-CT81 (-M1TJ) | E3ZM-CT82B (-M1TJ) | E3ZM-CR81 (-M1TJ) | E3ZM-CD82 (-M1TJ) | |
| Sensing distance | 15 m | 20 m | 4 m [100 mm] *1 (Using E39-R1S) 3 m [100 mm] *1 (Using E39-R1) |
1 m (White paper 300 × 300 mm) |
|
| Spot diameter | - | ||||
| Standard sensing object |
Opaque: 12-mm dia. min. | Opaque: 75-mm dia. min. | - | ||
| Differential travel | - | 20% of sensing distance max. |
|||
| Reflectivity characteristic (black/white error) |
- | ||||
| Directional angle | Emitter, Receiver: 3° to 15° (Distance between emitter and receiver. Rated sensing distance) |
Sensor: 3° to 10° Reflector: 30° (Distance to Reflector. Rated sensing distance) |
- | ||
| Light source (wavelength) |
Infrared LED (870 nm) |
Orange LED (615 nm) |
Red LED (660 nm) | Infrared LED (860 nm) | |
| Power supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | ||||
| Current consumption | 40 mA (Emitter 20 mA max., Receiver 20 mA max.) |
25 mA max. | |||
| Control output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) Light ON/Dark ON switch selectable |
||||
| Protection circuits | Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection |
Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection, Mutual interference prevention |
|||
| Response time | Operate or reset: 1 ms max. |
Operate or reset: 2 ms max. |
Operate or reset: 1 ms max. | ||
| Sensitivity adjustment | One-turn adjuster | ||||
| Ambient illumination (Receiver side) |
Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. | ||||
| Ambient temperature range |
Operating: - 25 to 55°C, Storage: - 40 to 70°C (with no icing or condensation) | ||||
| Ambient humidity range |
Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | ||||
| Insulation resistance | 20 MΩ min. at 500 VDC | ||||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | ||||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | ||||
| Degree of protection *2 |
IEC IP67 (oil resistance to OMRON in-house standard), DIN 40050-9: IP69K | ||||
| Connection method | Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 300 mm) | ||||
| Indicators | Operation indicator (yellow), Stability indicator (green) (Emitter has only power supply indicator (green).) |
||||
| Weight (packed state) | Pre-wired models |
Approx. 150 g | Approx. 90 g | ||
| Housing material | SUS316L | ||||
| Cable material | Oil-resistant vinyl chloride | ||||
| Lens material | PMMA (polymethylmethacrylate) | ||||
| Indicator material | PEI (Polyetherimide) | ||||
| Sensitivity adjustment and mode selector switch |
PEEK (polyetheretherketone) | ||||
| Seal material | Fluoro rubber | ||||
| Accessories | Instruction sheet (Note: Reflectors and Mounting Brackets are sold separately.) | ||||
*1. Values in parentheses indicate the minimum required distance between the Sensor and Reflector. *2. IP69K Degree of Protection Specification IP69K is a protection standard against high temperature and high-pressure water defined in the German standard DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a specified nozzle shape at a rate of 14 to 16 liters/min. The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each at 0°, 30°, 60° and 90°while rotating the test piece on a horizontal plane.
| Sensing method | BGS Reflective | |||
|---|---|---|---|---|
| Model | NPN output | E3ZM-CL61H (-M1TJ) | E3ZM-CL62H (-M1TJ) | E3ZM-CL64H (-M1TJ) |
| PNP output | E3ZM-CL81H (-M1TJ) | E3ZM-CL82H (-M1TJ) | E3ZM-CL84H (-M1TJ) | |
| Sensing distance | 10 to 100 mm (White paper 100 × 100 mm) |
10 to 150 mm (White paper 100 × 100 mm) |
10 to 200 mm (White paper 100 × 100 mm) |
|
| Spot diameter | 4-mm dia. at sensing distance of 100 mm |
12-mm dia. at sensing distance of 150 mm |
18-mm dia. at sensing distance of 200 mm |
|
| Standard sensing object | - | |||
| Differential travel | 3% of sensing distance max. | 15% of sensing distance max. | 20% of sensing distance max. | |
| Reflectivity characteristic (black/white error) |
5% of sensing distance max. | 10% of sensing distance max. | 20% of sensing distance max. | |
| Directional angle | - | |||
| Light source (wavelength) |
Red LED (650 nm) | Red LED (660 nm) | ||
| Power supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |||
| Current consumption | 25 mA max. | |||
| Control output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) Light ON/Dark ON cable connection selectable |
|||
| Protection circuits | Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection, Mutual interference protection |
|||
| Response time | Operate or reset: 1 ms max. | |||
| Sensitivity adjustment | - | |||
| Ambient illumination (Receiver side) |
Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. | |||
| Ambient temperature range |
Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation) | |||
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | |||
| Insulation resistance | 20 MΩ min. at 500 VDC | |||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | |||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | |||
| Degree of protection * | IEC IP67 (oil resistance to OMRON standards), DIN 40050-9: IP69K | |||
| Connection method | Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 300-mm) | |||
| Indicators | Operation indicator (yellow), Stability indicator (green) | |||
| Weight (packed state) | Pre-wired models |
Approx. 90 g | ||
| Housing material | SUS316L | |||
| Cable material | Oil-resistant vinyl cable | |||
| Lens material | PMMA (polymethylmethacrylate) | |||
| Indicator material | PEI (Polyetherimide) | |||
| Seal material | Fluoro rubber | |||
| Accessories | Instruction sheet (Note: Mounting Brackets are sold separately.) | |||
* IP69K Degree of Protection Specification IP69K is a protection standard against high temperature and high-pressure water defined in the German standard DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a specified nozzle shape at a rate of 14 to 16 liters/min. The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each at 0°, 30°, 60°, and 90° while rotating the test piece on a horizontal plane.
Dimensions | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors
Through-beam Models *
Pre-wired Models
E3ZM-CT61
E3ZM-CT81
E3ZM-CT62B
E3ZM-CT82B

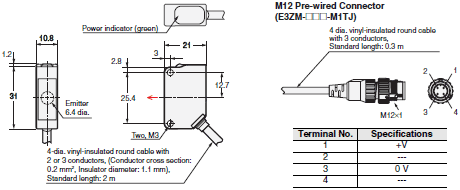

Emitter

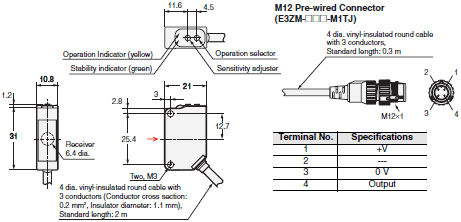

Receiver

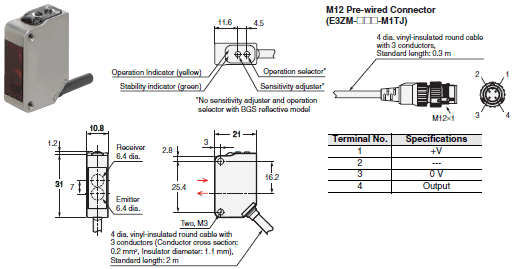

Retro-reflective Models
Pre-wired Models
E3ZM-CR61, E3ZM-CR81
Diffuse-reflective Models
Pre-wired Models
E3ZM-CD62, E3ZM-CD82
BGS Reflective Models
Pre-wired Models
E3ZM-CL61H, E3ZM-CL62H, E3ZM-CL64H
E3ZM-CL81H, E3ZM-CL82H, E3ZM-CL84H
* Models numbers for Through-beam Sensors (E3ZM-CT[][](-M1TJ)) are for sets that include both the Emitter and Receiver. The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3ZM-CT61-L 2M), the model number of the Receiver, by adding "-D"(example: E3ZM-CT61-D 2M.) Refer to Ordering Information to confirm model numbers for Emitter and Receivers.
Features | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
- Oil-resistant, rugged body made of stainless steel.
- Spot visibility improved to as far as 1 m away. Product lineup includes Through-beam Models with Orange Spot.
- Product lineup includes M12 Smartclick pre-wired connector models.
- Antifouling coating prevents contamination on the sensing surface (* Only for E3ZM-CT series.)
Properties | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
| Photoelectric Sensor Built-in Amplifier | E3ZM-C |
|---|---|
| Sensing method | Through-bean, reflective with MSR function, Diffuse-reflective, BGS reflective |
| Sensing distance | 10 - 100 mm |
| 10 - 150 mm | |
| 10 - 200 mm | |
| 1 m | |
| 4 m | |
| 15 m | |
| 20 m | |
| Spot diameter | 4-mm dia., 12-mm dia, 18-mm dia |
| Power supply voltage | 10 to 30 VDC |
| Current consumption | 25 mA max |
| Response time | 1 ms max |
| Degree of protection | IEC IP67 (oil resistance to OMRON standards), DIN 40050-9: IP69K |
Photoelectric Sensor Built-in Amplifier - E3ZM-C series
ดาวน์โหลดไฟล์ PDF เลือกรุ่นสินค้า | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
เซนเซอร์
| วิธีการ ตรวจจับ | ลักษณะ | วิธีการเชื่อมต่อ | ระยะการตรวจจับ | รุ่นสินค้า | |
|---|---|---|---|---|---|
| เอาต์พุต NPN | เอาต์พุต PNP | ||||
| Through-beam (ตัวส่ง + ตัวรับ) *1 |
|
มีสายในตัว (2 ม.) | 15 ม. (แสงอินฟราเรด) |
E3ZM-CT61 2M Emitter E3ZM-CT61-L 2M Receiver E3ZM-CT61-D 2M |
E3ZM-CT81 2M Emitter E3ZM-CT81-L 2M Receiver E3ZM-CT81-D 2M |
| มีสายในตัว (5 ม.) | E3ZM-CT61 5M Emitter E3ZM-CT61-L 5M Receiver E3ZM-CT61-D 5M |
E3ZM-CT81 5M Emitter E3ZM-CT81-L 5M Receiver E3ZM-CT81-D 5M |
|||
|
คอนเนคเตอร์แบบมีสายในตัว |
E3ZM-CT61-M1TJ 0.3M Emitter E3ZM-CT61-L-M1TJ 0.3M Receiver E3ZM-CT61-D-M1TJ 0.3M |
E3ZM-CT81-M1TJ 0.3M Emitter E3ZM-CT81-L-M1TJ 0.3M Receiver E3ZM-CT81-D-M1TJ 0.3M |
|||
| มีสายในตัว (2 ม.) | 20 ม. (แสงสีส้ม) |
E3ZM-CT62B 2M Emitter E3ZM-CT62B-L 2M Receiver E3ZM-CT62B-D 2M |
E3ZM-CT82B 2M Emitter E3ZM-CT82B-L 2M Receiver E3ZM-CT82B-D 2M |
||
| มีสายในตัว (5 ม.) | E3ZM-CT62B 5M Emitter E3ZM-CT62B-L 5M Receiver E3ZM-CT62B-D 5M |
E3ZM-CT82B 5M Emitter E3ZM-CT82B-L 5M Receiver E3ZM-CT82B-D 5M |
|||
|
คอนเนคเตอร์แบบมีสายในตัว |
E3ZM-CT62B-M1TJ 0.3M Emitter E3ZM-CT62B-L-M1TJ 0.3M Receiver E3ZM-CT62B-D-M1TJ 0.3M |
E3ZM-CT82B-M1TJ 0.3M Emitter E3ZM-CT82B-L-M1TJ 0.3M Receiver E3ZM-CT82B-D-M1TJ 0.3M |
|||
| Retro- reflective |
*2 |
มีสายในตัว (2 ม.) | 4 ม. (100 มม.) *3 (ใช้ E39-R1S) (แสงสีแดง) |
E3ZM-CR61 2M | E3ZM-CR81 2M |
|
คอนเนคเตอร์แบบมีสายในตัว |
E3ZM-CR61-M1TJ 0.3M | E3ZM-CR81-M1TJ 0.3M | |||
| Diffuse- reflective |
|
มีสายในตัว (2 ม.) | 1 ม. (แสงอินฟราเรด) |
E3ZM-CD62 2M | E3ZM-CD82 2M |
|
คอนเนคเตอร์แบบมีสายในตัว |
E3ZM-CD62-M1TJ 0.3M | E3ZM-CD82-M1TJ 0.3M | |||
| BGS reflective (ระยะทางคงที่) |
|
มีสายในตัว (2 ม.) | 10 ถึง 150 มม. (แสงสีแดง) |
E3ZM-CL61H 2M | E3ZM-CL81H 2M |
|
คอนเนคเตอร์แบบมีสายในตัว |
E3ZM-CL61H-M1TJ 0.3M | E3ZM-CL81H-M1TJ 0.3M | |||
| มีสายในตัว (2 ม.) | 10 ถึง 150 มม. | E3ZM-CL62H 2M | E3ZM-CL82H 2M | ||
| M12 twist-and- click pre-wired connector (0.3 m) |
E3ZM-CL62H-M1TJ 0.3M | E3ZM-CL82H-M1TJ 0.3M | |||
| มีสายในตัว (2 ม.) | 10 ถึง 200 มม. (แสงสีแดง) |
E3ZM-CL64H 2M | E3ZM-CL84H 2M | ||
|
คอนเนคเตอร์แบบมีสายในตัว |
E3ZM-CL64H-M1TJ 0.3M | E3ZM-CL84H-M1TJ 0.3M | |||
- * เซ็นเซอร์ลำแสงผ่านตลอดโดยปกติจะขายเป็นชุดที่มีทั้งตัวส่งและตัวรับ
- * แยกจำหน่าย แผ่นสะท้อนแสง เลือกรุ่นแผ่นสะท้อนที่เหมาะกับการใช้งานมากที่สุด
- * กำหนดระยะห่างระหว่างเซนเซอร์และตัวสะท้อนแสงเพื่อให้มีค่าอย่างน้อยที่สุดในวงเล็บ
อุปกรณ์เสริม
คอนเนคเตอร์ I/O เซ็นเซอร์ (ซ็อกเก็ตที่ปลายสายด้านหนึ่ง)
รุ่นสำหรับคอนเนคเตอร์และคอนเนคเตอร์แบบมีสาย: ไม่มีการเชื่อมต่อกับเซนเซอร์ อย่าลืมสั่งซื้อคอนเนคเตอร์แยกต่างหาก
| ขนาด | ประเภทสาย | ลักษณะ | สายเคเบิล | รุ่น | ||
|---|---|---|---|---|---|---|
| M12 (สำหรับรุ่น -M1TJ ) |
หน่วงการติดไฟ, สายเคเบิลหุ่นยนต์ |
ตรง | |
2 ม. | 4 สาย | XS5F-D421-D80-F |
| 5 ม. | XS5F-D421-G80-F | |||||
| สายเคเบิลกันน้ำมัน (โพลียูรีเทน) |
2 ม. | XS5F-D421-D80-P | ||||
| 5 ม. | XS5F-D421-G80-P | |||||
หมายเหตุ:
- เมื่อใช้รุ่น Through-beam ให้สั่งขั้วต่อหนึ่งตัวสำหรับตัวรับและอีกตัวหนึ่งสำหรับตัวส่ง
- สำหรับรายละเอียดโปรดดูข้อมูล XS3 ที่มีอยู่บนเว็บไซต์ OMRON
ขายึด
ขายึดไม่ได้ติดกับเซนเซอร์ สั่งซื้อขายึดแยกต่างหากหากจำเป็น
| ลักษณะ | รุ่น (วัสดุ) | ปริมาณ | หมายเหตุ |
|---|---|---|---|
|
E39-L153 (SUS304) |
1 | ขายึด |
|
E39-L104 (SUS304) |
1 | |
|
E39-L43 (SUS304) |
1 | ขายึดแนวนอน * |
|
E39-L142 (SUS304) |
1 | ขายึดแบบฝาครอบป้องกันแนวนอน * |
|
E39-L44 (SUS304) |
1 | ขายึดด้านหลัง |
|
E39-L98 (SUS304) |
1 | ตัวยึดแบบฝาครอบป้องกันโลหะ * |
|
E39-L150 (SUS304) |
1 set | (ตัวปรับเซนเซอร์) ติดตั้งเข้ากับรางโครงอลูมิเนียมของสายพานลำเลียงได้ อย่างง่ายดายและปรับเปลี่ยนได้ง่าย |
|
E39-L151 (SUS304) |
1 set | |
|
E39-L144 (SUS304) |
1 | ตัวยึดแบบฝาครอบป้องกันขนาดกะทัดรัด * |
หมายเหตุ:
- เมื่อใช้รุ่น Through-beam ให้สั่งตัวยึดหนึ่งตัวสำหรับตัวรับและอีกตัวสำหรับตัวส่ง
- * ไม่สามารถใช้กับรุ่นคอนเนคเตอร์มาตราฐาน
แผ่นสะท้อนแสง
(จำเป็นต้องมีแผ่นสะท้อนแสงสำหรับเซนเซอร์แบบ Retro-reflective แต่ละตัว: เซนเซอร์ไม่มีตัวสะท้อนแสงโปรดสั่งซื้อแผ่นสะท้อนแสง)
| ชื่อ | E3ZM-CR ระยะตรวจจับ* | รุ่น | ปริมาณ | หมายเหตุ | |
|---|---|---|---|---|---|
| ระยะทั่วไป | ระยะทั่วไป | ||||
| แผ่นสะท้อนแสง | 3 ม. (100 มม.) | - | E39-R1 | 1 | แผ่นสะท้อนแสงไม่ได้มาพร้อมกับรุ่น Retroreflective เปิดใช้งานฟังก์ชัน MSR |
| 4 ม. (100 มม.) | - | E39-R1S | 1 | ||
| - | 5 ม (100 มม.) | E39-R2 | 1 | ||
| - | 2.5 ม (100 มม.) | E39-R9 | 1 | ||
| - | 3.5 ม. (100 มม.) | E39-R10 | 1 | ||
| แผ่นสะท้อนแสง ขนาดเล็ก | - | 1.5 ม. (50 มม.) | E39-R3 | 1 | |
หมายเหตุ: หากคุณใช้ตแผ่นสะท้อนแสงในระยะอื่น ๆ นอกเหนือจากระยะที่กำหนดตรวจสอบให้แน่ใจว่าไฟแสดงความเสถียรสว่างขึ้นอย่างถูกต้องเมื่อคุณติดตั้งเซนเซอร์
* กำหนดระยะห่างระหว่างเซนเซอร์และตัวสะท้อนแสงเพื่อให้มีค่าอย่างน้อยที่สุดในวงเล็บ
ข้อมูลทางเทคนิค | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
| Sensing method | Through-beam | Retro-reflective with MSR function | Diffuse-reflective | ||
|---|---|---|---|---|---|
| Model | NPN output | E3ZM-CT61 (-M1TJ) | E3ZM-CT62B (-M1TJ) | E3ZM-CR61 (-M1TJ) | E3ZM-CD62 (-M1TJ) |
| PNP output | E3ZM-CT81 (-M1TJ) | E3ZM-CT82B (-M1TJ) | E3ZM-CR81 (-M1TJ) | E3ZM-CD82 (-M1TJ) | |
| Sensing distance | 15 m | 20 m | 4 m [100 mm] *1 (Using E39-R1S) 3 m [100 mm] *1 (Using E39-R1) |
1 m (White paper 300 × 300 mm) |
|
| Spot diameter | - | ||||
| Standard sensing object |
Opaque: 12-mm dia. min. | Opaque: 75-mm dia. min. | - | ||
| Differential travel | - | 20% of sensing distance max. |
|||
| Reflectivity characteristic (black/white error) |
- | ||||
| Directional angle | Emitter, Receiver: 3° to 15° (Distance between emitter and receiver. Rated sensing distance) |
Sensor: 3° to 10° Reflector: 30° (Distance to Reflector. Rated sensing distance) |
- | ||
| Light source (wavelength) |
Infrared LED (870 nm) |
Orange LED (615 nm) |
Red LED (660 nm) | Infrared LED (860 nm) | |
| Power supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | ||||
| Current consumption | 40 mA (Emitter 20 mA max., Receiver 20 mA max.) |
25 mA max. | |||
| Control output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) Light ON/Dark ON switch selectable |
||||
| Protection circuits | Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection |
Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection, Mutual interference prevention |
|||
| Response time | Operate or reset: 1 ms max. |
Operate or reset: 2 ms max. |
Operate or reset: 1 ms max. | ||
| Sensitivity adjustment | One-turn adjuster | ||||
| Ambient illumination (Receiver side) |
Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. | ||||
| Ambient temperature range |
Operating: - 25 to 55°C, Storage: - 40 to 70°C (with no icing or condensation) | ||||
| Ambient humidity range |
Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | ||||
| Insulation resistance | 20 MΩ min. at 500 VDC | ||||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | ||||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | ||||
| Degree of protection *2 |
IEC IP67 (oil resistance to OMRON in-house standard), DIN 40050-9: IP69K | ||||
| Connection method | Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 300 mm) | ||||
| Indicators | Operation indicator (yellow), Stability indicator (green) (Emitter has only power supply indicator (green).) |
||||
| Weight (packed state) | Pre-wired models |
Approx. 150 g | Approx. 90 g | ||
| Housing material | SUS316L | ||||
| Cable material | Oil-resistant vinyl chloride | ||||
| Lens material | PMMA (polymethylmethacrylate) | ||||
| Indicator material | PEI (Polyetherimide) | ||||
| Sensitivity adjustment and mode selector switch |
PEEK (polyetheretherketone) | ||||
| Seal material | Fluoro rubber | ||||
| Accessories | Instruction sheet (Note: Reflectors and Mounting Brackets are sold separately.) | ||||
*1. Values in parentheses indicate the minimum required distance between the Sensor and Reflector. *2. IP69K Degree of Protection Specification IP69K is a protection standard against high temperature and high-pressure water defined in the German standard DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a specified nozzle shape at a rate of 14 to 16 liters/min. The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each at 0°, 30°, 60° and 90°while rotating the test piece on a horizontal plane.
| Sensing method | BGS Reflective | |||
|---|---|---|---|---|
| Model | NPN output | E3ZM-CL61H (-M1TJ) | E3ZM-CL62H (-M1TJ) | E3ZM-CL64H (-M1TJ) |
| PNP output | E3ZM-CL81H (-M1TJ) | E3ZM-CL82H (-M1TJ) | E3ZM-CL84H (-M1TJ) | |
| Sensing distance | 10 to 100 mm (White paper 100 × 100 mm) |
10 to 150 mm (White paper 100 × 100 mm) |
10 to 200 mm (White paper 100 × 100 mm) |
|
| Spot diameter | 4-mm dia. at sensing distance of 100 mm |
12-mm dia. at sensing distance of 150 mm |
18-mm dia. at sensing distance of 200 mm |
|
| Standard sensing object | - | |||
| Differential travel | 3% of sensing distance max. | 15% of sensing distance max. | 20% of sensing distance max. | |
| Reflectivity characteristic (black/white error) |
5% of sensing distance max. | 10% of sensing distance max. | 20% of sensing distance max. | |
| Directional angle | - | |||
| Light source (wavelength) |
Red LED (650 nm) | Red LED (660 nm) | ||
| Power supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |||
| Current consumption | 25 mA max. | |||
| Control output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) Light ON/Dark ON cable connection selectable |
|||
| Protection circuits | Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection, Mutual interference protection |
|||
| Response time | Operate or reset: 1 ms max. | |||
| Sensitivity adjustment | - | |||
| Ambient illumination (Receiver side) |
Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. | |||
| Ambient temperature range |
Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation) | |||
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) | |||
| Insulation resistance | 20 MΩ min. at 500 VDC | |||
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min | |||
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions | |||
| Degree of protection * | IEC IP67 (oil resistance to OMRON standards), DIN 40050-9: IP69K | |||
| Connection method | Pre-wired (standard length: 2 m), -M1TJ: Pre-wired connector (standard length: 300-mm) | |||
| Indicators | Operation indicator (yellow), Stability indicator (green) | |||
| Weight (packed state) | Pre-wired models |
Approx. 90 g | ||
| Housing material | SUS316L | |||
| Cable material | Oil-resistant vinyl cable | |||
| Lens material | PMMA (polymethylmethacrylate) | |||
| Indicator material | PEI (Polyetherimide) | |||
| Seal material | Fluoro rubber | |||
| Accessories | Instruction sheet (Note: Mounting Brackets are sold separately.) | |||
* IP69K Degree of Protection Specification IP69K is a protection standard against high temperature and high-pressure water defined in the German standard DIN 40050, Part 9. The test piece is sprayed with water at 80°C at a water pressure of 80 to 100 BAR using a specified nozzle shape at a rate of 14 to 16 liters/min. The distance between the test piece and nozzle is 10 to 15 cm, and water is sprayed horizontally for 30 seconds each at 0°, 30°, 60°, and 90° while rotating the test piece on a horizontal plane.
ขนาด | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors
Through-beam Models *
Pre-wired Models
E3ZM-CT61
E3ZM-CT81
E3ZM-CT62B
E3ZM-CT82B
Emitter
Receiver
Retro-reflective Models
Pre-wired Models
E3ZM-CR61, E3ZM-CR81
Diffuse-reflective Models
Pre-wired Models
E3ZM-CD62, E3ZM-CD82
BGS Reflective Models
Pre-wired Models
E3ZM-CL61H, E3ZM-CL62H, E3ZM-CL64H
E3ZM-CL81H, E3ZM-CL82H, E3ZM-CL84H
* Models numbers for Through-beam Sensors (E3ZM-CT[][](-M1TJ)) are for sets that include both the Emitter and Receiver. The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3ZM-CT61-L 2M), the model number of the Receiver, by adding "-D"(example: E3ZM-CT61-D 2M.) Refer to Ordering Information to confirm model numbers for Emitter and Receivers.
คุณสมบัติ | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
- ทนต่อน้ำมัน ตัวเครื่องแข็งแรงทำจากสแตนเลส
- ปรับปรุงการมองเห็นเฉพาะจุดให้ไกลถึง 1 เมตร กลุ่มผลิตภัณฑ์ประกอบด้วยรุ่น Through beam ที่มีจุดสีส้ม
- กลุ่มผลิตภัณฑ์ประกอบด้วยรุ่นคอนเนคเตอร์แบบมีสายล่วงหน้า M12 Smartclick
- การเคลือบกันสนิม ป้องกันการปนเปื้องบนพื้นผิวการตรวจจับ (*1 สำหรับ E3ZM CT series เท่านั้น)
ข้อมูลจำเพาะ | Photoelectric Sensor Built-in Amplifier - E3ZM-C series
| Photoelectric Sensor Built-in Amplifier | E3ZM-C |
|---|---|
| วิธีการตรวจจับ | Through-bean, reflective with MSR function, Diffuse-reflective, BGS reflective |
| ระยะตรวจจับ | 10 - 100 มม. |
| 10 - 150 มม. | |
| 10 - 200 มม. | |
| 1 ม. | |
| 4 ม. | |
| 15 ม. | |
| 20 ม. | |
| ขนาดเส้นผ่านศูนย์กลางของลำแสง | 4 mm. เส้นผ่านศูนย์กลาง 12 มม. เส้นผ่านศูนย์กลาง 18 มม. |
| แรงดันไฟฟ้า | 10 - 30 VDC |
| การใช้กระแสไฟฟ้า | สูงสุด 25 mA |
| เวลาตอบสูงสุด | สูงสุด 1 ms |
| ระดับการป้องกัน | IEC IP67 (ความทนทานต่อน้ำมันตามมาตรฐาน OMRON), DIN 40050 9:IP69K |
Technology Instrument
T.U Pack
Your Lift
