OMRON Photoelectric Sensor - E3JK series

Model Numbers | Photoelectric Sensor Built-in Amplifier - E3JK series

Sensors

Sensors with Mounting Brackets and Reflectors (The model numbers contain (“-C.”)

A Mounting Bracket (E39-L40) is included. A Reflector (E39-R1) is included with Retro-reflective models.

Power supply voltage	Sensing method	Appearance	Sensing distance	Output configuration	Model
AC/DC power supply selectable type	Through-beam *1 (Emitter + Receiver)		40 m (Red light)	Relay	E3JK-TR11-C 2M Emitter: E3JK-TR11-L 2M Receiver: E3JK-TR11-D 2M
			5 m (Red light)		E3JK-TR12-C 2M Emitter: E3JK-TR12-L 2M Receiver: E3JK-TR12-D 2M
			40 m (Infrared light)		E3JK-TR13-C 2M Emitter: E3JK-TR13-L 2M Receiver: E3JK-TR13-D 2M
			5 m (Infrared light)		E3JK-TR14-C 2M Emitter: E3JK-TR14-L 2M Receiver: E3JK-TR14-D 2M
	Retro- reflective without MSR function		*2 7 m [100 mm] (When using E39-R1) (Red light) 11 m [100 mm] (When using E39-R2) (Red light)		E3JK-RR11-C 2M
			*2 7 m [100 mm] (When using E39-R1) (Infrared light) 11 m [100 mm] (When using E39-R2) (Infrared light)		E3JK-RR13-C 2M
	Retro- reflective with MSR function		*2 6 m [100 mm] (When using E39-R1) (Red light) 10 m [100 mm] (When using E39-R2) (Red light)		E3JK-RR12-C 2M
	Diffuse- reflective		2.5 m (Red light)		E3JK-DR11-C 2M
			300 mm (Red light)		E3JK-DR12-C 2M
			2.5 m (Infrared light)		E3JK-DR13-C 2M
			300 mm (Infrared light)		E3JK-DR14-C 2M

1. Through-beam Sensors are sold in sets that include both the Emitter and Receiver.
2. Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

Sensors without Mounting Brackets or Reflectors

A Mounting Bracket and Reflector are not included. Purchase a Mounting Bracket and Reflector separately to match the intended use of the Sensor.

Power supply voltage	Sensing method	Appearance	Sensing distance	Output configuration	Model
AC/DC power supply selectable type	Through- beam *1 (Emitter + Receiver)		40 m (Red light)	Relay	E3JK-TR11 2M Emitter: E3JK-TR11-L 2M Receiver: E3JK-TR11-D 2M
			5 m (Red light)		E3JK-TR12 2M Emitter: E3JK-TR12-L 2M Receiver: E3JK-TR12-D 2M
			40 m (Infrared light)		E3JK-TR13 2M Emitter: E3JK-TR13-L 2M Receiver: E3JK-TR13-D 2M
			5 m (Infrared light)		E3JK-TR14 2M Emitter: E3JK-TR14-L 2M Receiver: E3JK-TR14-D 2M
	Retro- reflective without MSR function	*2	*3 7 m [100 mm] (When using E39-R1) (Red light) 11 m [100 mm] (When using E39-R2) (Red light)		E3JK-RR11 2M
			*3 7 m [100 mm] (When using E39-R1) (Infrared light) 11 m [100 mm] (When using E39-R2) (Infrared light)		E3JK-RR13 2M
	Retro- reflective with MSR function		*3 6 m [100 mm] (When using E39-R1) (Red light) 10 m [100 mm] (When using E39-R2) (Red light)		E3JK-RR12 2M
	Diffuse- reflective		2.5 m (Red light)		E3JK-DR11 2M
			300 mm (Red light)		E3JK-DR12 2M
			2.5 m (Infrared light)		E3JK-DR13 2M
			300 mm (Infrared light)		E3JK-DR14 2M

1. Through-beam Sensors are sold in sets that include both the Emitter and Receiver.
2. A Reflector is not included. Purchase a Reflector separately to match the intended use of the Sensor.
3. Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

A Mounting Bracket and Reflector are not included. Purchase a Mounting Bracket and Reflector separately to match the intended use of the Sensor.

Power supply voltage	Sensing method	Appearance	Sensing distance	Output configuration	Model
DC	Through- beam *1 (Emitter + Receiver)		40 m (Red light)	NPN	E3JK-TN11 2M Emitter: E3JK-TN11-L 2M Receiver: E3JK-TN11-D 2M
				PNP	E3JK-TP11 2M Emitter: E3JK-TP11-L 2M Receiver: E3JK-TP11-D 2M
			5 m (Red light)	NPN	E3JK-TN12 2M Emitter: E3JK-TN12-L 2M Receiver: E3JK-TN12-D 2M
				PNP	E3JK-TP12 2M Emitter: E3JK-TP12-L 2M Receiver: E3JK-TP12-D 2M
			40 m (Infrared light)	NPN	E3JK-TN13 2M Emitter: E3JK-TN13-L 2M Receiver: E3JK-TN13-D 2M
				PNP	E3JK-TP13 2M Emitter: E3JK-TP13-L 2M Receiver: E3JK-TP13-D 2M
			5 m (Infrared light)	NPN	E3JK-TN14 2M Emitter: E3JK-TN14-L 2M Receiver: E3JK-TN14-D 2M
				PNP	E3JK-TP14 2M Emitter: E3JK-TP14-L 2M Receiver: E3JK-TP14-D 2M
	Retro- reflective without MSR function	*2	*3 7 m [100 mm] (When using E39-R1) (Red light) 11 m [100 mm] (When using E39-R2) (Red light)	NPN	E3JK-RN11 2M
				PNP	E3JK-RP11 2M
			*3 7 m [100 mm] (When using E39-R1) (Infrared light) 11 m [100 mm] (When using E39-R2) (Infrared light)	NPN	E3JK-RN13 2M
				PNP	E3JK-RP13 2M
	Retro- reflective with MSR function		*3 6 m [100 mm] (When using E39-R1) (Red light) 10 m [100 mm] (When using E39-R2) (Red light)	NPN	E3JK-RN12 2M
				PNP	E3JK-RP12 2M
	Diffuse- reflective		2.5 m (Red light)	NPN	E3JK-DN11 2M
				PNP	E3JK-DP11 2M
			300 mm (Red light)	NPN	E3JK-DN12 2M
				PNP	E3JK-DP12 2M
			2.5 m (Infrared light)	NPN	E3JK-DN13 2M
				PNP	E3JK-DP13 2M
			300 mm (Infrared light)	NPN	E3JK-DN14 2M
				PNP	E3JK-DP14 2M

1. Through-beam Sensors are sold in sets that include both the Emitter and Receiver.
2. A Reflector is not included. Purchase a Reflector separately to match the intended use of the Sensor.
3. Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

Accessories (Order Separately)

Reflectors (A Reflector is required for each Retro-reflective Sensor.)

The E39-R1 is enclosed with Sensors with model numbers that contain "-C."

Name	Sensing distance (rated value)		Model	Quantity
Reflectors	E3JK-R[]11	7 m [100 mm] *	E39-R1	1
	E3JK-R[]12	6 m [100 mm] *
	E3JK-R[]13	7 m [100 mm] *
	E3JK-R[]11	9 m [100 mm] *	E39-R1S	1
	E3JK-R[]12	7 m [100 mm] *
	E3JK-R[]13	9 m [100 mm] *
	E3JK-R[]11	11 m [100 mm] *	E39-R2	1
	E3JK-R[]12	10 m [100 mm] *
	E3JK-R[]13	11 m [100 mm] *

Note: Refer to Engineering Data on Catalog for details.
* Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

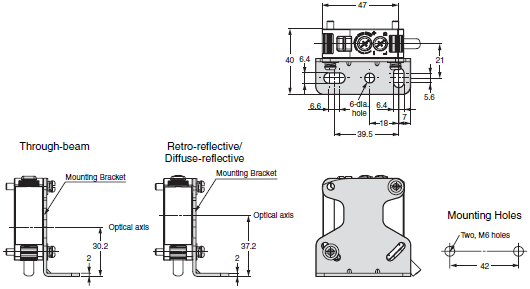

Mounting Bracket

A Mounting Bracket is enclosed with Sensors with model numbers that contain "-C."

Appearance	Model	Quantity
	E39-L40	1

Note:

1. When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.
2. For details, refer to Mounting Brackets on E39-L/E39-S/E39-R which can be accessed from your OMRON website.

Specifications | Photoelectric Sensor Built-in Amplifier - E3JK series

Sensing method		Through-beam
Model		E3JK-TR11-[]	E3JK-TR12-[]	E3JK-TR13-[]	E3JK-TR14-[]
Sensing distance		40 m	5 m	40 m	5 m
Standard sensing object		Opaque: 17-mm dia. min.
Differential travel		-
Directional angle		Both Emitter and Receiver 3° min.
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	3 W max. (Emitter 1.5 W max. Receiver 1.5 W max.)
	AC	3 W max. (Emitter 1.5 W max. Receiver 1.5 W max.)
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		-
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster Receiver (E3JK-TR1[]-D) only
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 350 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual and Mounting Bracket (E3JK-TR1[]-C only)

Sensing method		Retro-reflective (without MSR function)		Retro-reflective (with MSR function)
Model		E3JK-RR11-[]	E3JK-RR13-[]	E3JK-RR12-[]
Sensing distance		7 m [100 mm]* (When using E39-R1), 11 m [100 mm]* (When using E39-R2)		6 m [100 mm]* (When using E39-R1), 10 m [100 mm]* (When using E39-R2)
Standard sensing object		Opaque: 75-mm dia. min. (When using E39-R1), Opaque: 100-mm dia. min. (When using E39-R2)
Differential travel		-
Directional angle		1.5° min.
Light source (wavelength)		Red LED (624 nm)	Infrared LED (850 nm)	Red LED (624 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	2 W max.
	AC	2 W max.
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		Mutual interference prevention function
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 180 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual, Mounting Bracket (E3JK-RR1[]-C only), and Reflector (E3JK- RR1[]-C only)

Sensing method		Retro-reflective (without MSR function)		Retro-reflective (with MSR function)
Model		E3JK-RR11-[]	E3JK-RR13-[]	E3JK-RR12-[]
Sensing distance		7 m [100 mm]* (When using E39-R1), 11 m [100 mm]* (When using E39-R2)		6 m [100 mm]* (When using E39-R1), 10 m [100 mm]* (When using E39-R2)
Standard sensing object		Opaque: 75-mm dia. min. (When using E39-R1), Opaque: 100-mm dia. min. (When using E39-R2)
Differential travel		-
Directional angle		1.5° min.
Light source (wavelength)		Red LED (624 nm)	Infrared LED (850 nm)	Red LED (624 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	2 W max.
	AC	2 W max.
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		Mutual interference prevention function
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 180 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual, Mounting Bracket (E3JK-RR1[]-C only), and Reflector (E3JK- RR1[]-C only)

*Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

Sensing method		Diffuse-reflective
Model		E3JK-DR11-[]	E3JK-DR12-[]	E3JK-DR13-[]	E3JK-DR14-[]
Sensing distance		White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm	White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm
Standard sensing object		-
Differential travel		20% max. of sensing distance
Directional angle		-
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	2 W max.
	AC	2 W max.
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		Mutual interference prevention function
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 180 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual and Mounting Bracket (E3JK-DR1[]-C only)

Sensing method		Through-beam
Model	NPN output	E3JK-TN11	E3JK-TN12	E3JK-TN13	E3JK-TN14
	PNP output	E3JK-TP11	E3JK-TP12	E3JK-TP13	E3JK-TP14
Sensing distance		40 m	5 m	40 m	5 m
Standard sensing object		Opaque: 17-mm dia. min.
Differential travel		-
Directional angle		Both Emitter and Receiver 3° min.
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		10 to 30 VDC, including ripple (p-p): 10%
Power consumption	DC	40 mA max. (Emitter 25 mA max. Receiver 15 mA max.)
	AC	-
Control output		Load power supply voltage: 30 V max., Load current: 100 mA max., Residual voltage: 3 V max., open-collector output (NPN/PNP output depending on model), Light-ON/Dark-ON selectable
Protection circuits		Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Life expectancy (relay output)	Mechanical	-
	Electrical	-
Response time		1 ms max.
Sensitivity adjustment		One-turn adjuster Receiver (E3JK-T[][][]-D) only
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 300 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual

Sensing method		Retro-reflective (without MSR function)		Retro-reflective (with MSR function)
Model	NPN output	E3JK-RN11	E3JK-RN13	E3JK-RN12
	PNP output	E3JK-RP11	E3JK-RP13	E3JK-RP12
Sensing distance		7 m [100 mm]* (When using E39-R1), 11 m [100 mm]* (When using E39-R2)		6 m [100 mm]* (When using E39-R1), 10 m [100 mm]* (When using E39-R2)
Standard sensing object		Opaque: 75-mm dia. min.
Differential travel		-
Directional angle		1.5° min.
Light source (wavelength)		Red LED (624 nm)	Infrared LED (850 nm)	Red LED (624 nm)
Power supply voltage		10 to 30 VDC, including ripple (p-p): 10%
Power consumption	DC	30 mA max.
	AC	-
Control output		Load power supply voltage: 30 V max., Load current: 100 mA max., Residual voltage: 3 V max., opencollector output (NPN/PNP output depending on model), Light-ON/Dark-ON selectable
Protection circuits		Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention function, and Output reverse polarity protection
Life expectancy (relay output)	Mechanical	-
	Electrical	-
Response time		1 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 160 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual

*Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

Sensing method		Diffuse-reflective
Model	NPN output	E3JK-DN11	E3JK-DN12	E3JK-DN13	E3JK-DN14
	PNP output	E3JK-DP11	E3JK-DP12	E3JK-DP13	E3JK-DP14
Sensing distance		White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm	White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm
Standard sensing object		-
Differential travel		20% max. of sensing distance
Directional angle		-
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		10 to 30 VDC, including ripple (p-p): 10%
Power consumption	DC	30 mA max.
	AC	-
Control output		Load power supply voltage: 30 V max., Load current: 100 mA max., Residual voltage: 3 V max., opencollector output (NPN/PNP output depending on model), Light-ON/Dark-ON selectable
Protection circuits		Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention function, and Output reverse polarity protection
Life expectancy (relay output)	Mechanical	-
	Electrical	-
Response time		1 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 160 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual

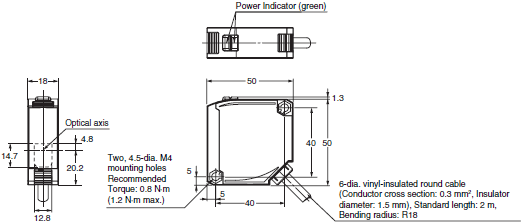

Dimensions | Photoelectric Sensor Built-in Amplifier - E3JK series

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

Through-beam
E3JK-T[]1[]

＜Emitter＞
E3JK-T[]1[]-L

＜Receiver＞
E3JK-T[]1[]-D

Retro-reflective/Diffuse-reflective
E3JK-R[]1[]
E3JK-D[]1[]

Accessories

Mounting Bracket (Order separately)

Mounting Bracket
E39-L40

With Mounting Bracket Attached

Reflector (Order separately)

E39-R1
E39-R1S

Material:
Reflective surface: acrylic
Rear surface: ABS

E39-R2

Material:
Reflective surface: acrylic
Rear surface: ABS

Features | Photoelectric Sensor Built-in Amplifier - E3JK series

Long-distance Photoelectric Sensor That Supports AC/DC Power Supplies

• Long sensing distance that is approximately 8 times that of our conventional model (for the Through- beam and Diffuse-reflective models).
  • (Through-beam: 40m, Retro-reflective: 7m, และ Diffuse-redflective: 2.5m)
• Improved visibility
  • A red LED that makes the spot visible.
  • Large indicators that can be seen even from a distance.
• Improved operability. (Enlarged sensitivity adjuster and operation selector)
• Freely selectable power supply input (24 to 240 VDC, 24 to 240 VAC).
  • Additional types added to the DC type lineup.)
• Models with infrared LEDs are also available.

Properties | Photoelectric Sensor Built-in Amplifier - E3JK series

Photoelectric Sensor Built-in Amplifier	E3JK series
Sensing method	Throuh-beam, Retro-Reflective, Diffuse-reflective
Sensing distance	2.5, 5, 6, 7, 10, 11, 40 m
	300 mm
Power supply voltage	24 - 240 VDC, 10 - 30VDC
Power consumption	2 W max., 3 W max.,
	30 mA max., 40 mA max.
Response time	1 ms max., 20 ms max
Degree of protection	IP64
MaterialCase	ABS

เลือกรุ่นสินค้า | Photoelectric Sensor Built-in Amplifier - E3JK series

เซ็นเซอร์

เซนเซอร์พร้อมขายึดและแผ่นสะท้อนแสง หมายเลขรุ่นประกอบด้วย (“ -C.”)

รวมขายึด (E39-L40) แผ่นสะท้อนแสง (E39-R1) มาพร้อมกับรุ่น Retro-reflective

แรงดันไฟฟ้า	วิธีการตรวจจับ	ลักษณะ	ระยะการตรวจจับ	การกำหนดเอาต์พุต	รุ่น
ประเภท เลือกแหล่งจ่ายไฟ AC / DC ได้	Through- beam *1 (ตัวส่ง + ตัวรับ)		40 ม.(แสงสีแดง)	รีเลย์	E3JK-TR11-C 2M Emitter: E3JK-TR11-L 2M Receiver: E3JK-TR11-D 2M
			5 ม.(แสงสีแดง)		E3JK-TR12-C 2M Emitter: E3JK-TR12-L 2M Receiver: E3JK-TR12-D 2M
			40 ม. (แสงอินฟราเรด)		E3JK-TR13-C 2M Emitter: E3JK-TR13-L 2M Receiver: E3JK-TR13-D 2M
			5 ม. (แสงอินฟราเรด)		E3JK-TR14-C 2M Emitter: E3JK-TR14-L 2M Receiver: E3JK-TR14-D 2M
	Retro- reflective ไม่มีฟังก์ชัน MSR		*2 7 ม. [100 มม.] (เมื่อใช้ E39-R1) (แสงสีแดง) 11 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงสีแดง)		E3JK-RR11-C 2M
			*2 7 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงอินฟราเรด) 11 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงอินฟราเรด		E3JK-RR13-C 2M
	Retro- reflective ด้วยฟังก์ชัน MSR		*2 6 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงสีแดง) 10 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงสีแดง)		E3JK-RR12-C 2M
	Diffuse- reflective		2.5 ม.(แสงสีแดง		E3JK-DR11-C 2M
			300 มม.(แสงสีแดง)		E3JK-DR12-C 2M
			2.5 ม. (แสงอินฟราเรด)		E3JK-DR13-C 2M
			300 มม. (แสงอินฟราเรด)		E3JK-DR14-C 2M

1. เซ็นเซอร์Through-beamโดยปกติจะขายเป็นชุดที่มีทั้งตัวส่งและตัวรับ
2. ค่าในวงเล็บเป็นค่าระยะห่างระหว่างเซนเซอร์และแผ่นสะท้อนแสงต่ำสุดที่

เซนเซอร์ที่ไม่มีขายึดหรือตัวสะท้อนแสง

ไม่รวมขายึดและแผ่นสะท้อนแสง ซื้อขายึดและแผ่นสะท้อนแสงแยกต่างหากเพื่อให้เหมาะกับการใช้งานเซนเซอร์

แรงดันไฟฟ้า	วิธีการตรวจจับ	ลักษณะ	ระยะการตรวจจับ	การกำหนดเอาต์พุต	รุ่น
เลือกประเภทแหล่งจ่ายไฟ AC / DC ได้	Through-beam *1 (ตัวส่ง + ตัวรับ)		40 ม.(แสงสีแดง)	รีเลย์	E3JK-TR11 2M Emitter: E3JK-TR11-L 2M Receiver: E3JK-TR11-D 2M
			5 ม.(แสงสีแดง)		E3JK-TR12 2M Emitter: E3JK-TR12-L 2M Receiver: E3JK-TR12-D 2M
			40 ม.(แสงอินฟราเรด)		E3JK-TR13 2M Emitter: E3JK-TR13-L 2M Receiver: E3JK-TR13-D 2M
			5 ม.(แสงอินฟราเรด)		E3JK-TR14 2M Emitter: E3JK-TR14-L 2M Receiver: E3JK-TR14-D 2M
	Retro- reflective without MSR function	*2	*3 7 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงสีแดง) 11 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงสีแดง)		E3JK-RR11 2M
			*3 7 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงอินฟราเรด) 11 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงอินฟราเรด)		E3JK-RR13 2M
	Retro- reflective with MSR function		*3 6 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงสีแดง) 10 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงสีแดง)		E3JK-RR12 2M
	Diffuse- reflective		2.5 ม.(แสงสีแดง)		E3JK-DR11 2M
			300 มม.(แสงสีแดง)		E3JK-DR12 2M
			2.5 ม.(แสงอินฟราเรด)		E3JK-DR13 2M
			300 มม.(แสงอินฟราเรด)		E3JK-DR14 2M

1. เซ็นเซอร์ Through-beam โดยปกติจะขายเป็นชุดที่มีทั้งตัวส่งและตัวรับ
2. ไม่รวมแผ่นสะท้อนแสง ซื้อแผ่นสะท้อนแสงแยกต่างหากเพื่อให้ตรงกับวัตถุประสงค์การใช้งานของเซนเซอร์
3. ค่าในวงเล็บเป็นค่าระยะห่างระหว่างเซนเซอร์และแผ่นสะท้อนแสงต่ำสุดที่ต้องการ

ไม่รวมขายึดและแผ่นสะท้อนแสง ซื้อขายึดและแผ่นสะท้อนแสงแยกต่างหากเพื่อให้เหมาะกับการใช้งานเซนเซอร์

แรงดันไฟฟ้า	วิธีการตรวจจับ	ลักษณะ	ระยะการตรวจจับ	การกำหนดเอาต์พุต	รุ่น
DC	Through- beam *1 (ตัวส่ง + ตัวรับ)		40 ม.(แสงสีแดง)	NPN	E3JK-TN11 2M Emitter: E3JK-TN11-L 2M Receiver: E3JK-TN11-D 2M
				PNP	E3JK-TP11 2M Emitter: E3JK-TP11-L 2M Receiver: E3JK-TP11-D 2M
			5 ม.(แสงสีแดง)	NPN	E3JK-TN12 2M Emitter: E3JK-TN12-L 2M Receiver: E3JK-TN12-D 2M
				PNP	E3JK-TP12 2M Emitter: E3JK-TP12-L 2M Receiver: E3JK-TP12-D 2M
			40 ม. (แสงอินฟราเรด	NPN	E3JK-TN13 2M Emitter: E3JK-TN13-L 2M Receiver: E3JK-TN13-D 2M
				PNP	E3JK-TP13 2M Emitter: E3JK-TP13-L 2M Receiver: E3JK-TP13-D 2M
			5 ม. (แสงอินฟราเรด	NPN	E3JK-TN14 2M Emitter: E3JK-TN14-L 2M Receiver: E3JK-TN14-D 2M
				PNP	E3JK-TP14 2M Emitter: E3JK-TP14-L 2M Receiver: E3JK-TP14-D 2M
	Retro- reflective without MSR function	*2	*3 7 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงสีแดง) 11 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงสีแดง)	NPN	E3JK-RN11 2M
				PNP	E3JK-RP11 2M
			*3 7 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงอินฟราเรด) 11 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงอินฟราเรด)	NPN	E3JK-RN13 2M
				PNP	E3JK-RP13 2M
	Retro- reflective with MSR function		*3 6 ม. [100 มม.] (เมื่อใช้E39-R1) (แสงสีแดง) 10 ม. [100 มม.] (เมื่อใช้E39-R2) (แสงสีแดง)	NPN	E3JK-RN12 2M
				PNP	E3JK-RP12 2M
	Diffuse- reflective		2.5 ม. (แสงสีแดง)	NPN	E3JK-DN11 2M
				PNP	E3JK-DP11 2M
			300 มม. (แสงสีแดง	NPN	E3JK-DN12 2M
				PNP	E3JK-DP12 2M
			2.5 ม. (แสงอินฟราเรด)	NPN	E3JK-DN13 2M
				PNP	E3JK-DP13 2M
			300 มม. (แสงอินฟราเรด)	NPN	E3JK-DN14 2M
				PNP	E3JK-DP14 2M

1. เซ็นเซอร์Through-beamโดยปกติจะขายเป็นชุดที่มีทั้งตัวส่งและตัวรับ
2. ไม่รวมแผ่นสะท้อนแสง ซื้อแผ่นสะท้อนแสงแยกต่างหากเพื่อให้ตรงกับวัตถุประสงค์การใช้งานของเซนเซอร์
3. ค่าในวงเล็บเป็นค่าระยะห่างระหว่างเซนเซอร์และแผ่นสะท้อนแสงต่ำสุดที่ต้องการ

อุปกรณ์เสริม (สั่งซื้อแยกต่างหาก)

แผ่นสะท้อนแสง (จำเป็นต้องมีตัวสะท้อนแสงสำหรับเซ็นเซอร์แบบ Retro-reflective แต่ละตัว)

E39-R1 มาพร้อมกับเซนเซอร์หมายเลขรุ่นที่ประกอบด้วย "-C"

รายการ	ระยะตรวจจับ (ระยะทั่วไป)		รุ่น	ปริมาณ
แผ่นสะท้อนแสง	E3JK-R[]11	7 m [100 mm] *	E39-R1	1
	E3JK-R[]12	6 m [100 mm] *
	E3JK-R[]13	7 m [100 mm] *
	E3JK-R[]11	9 m [100 mm] *	E39-R1S	1
	E3JK-R[]12	7 m [100 mm] *
	E3JK-R[]13	9 m [100 mm] *
	E3JK-R[]11	11 m [100 mm] *	E39-R2	1
	E3JK-R[]12	10 m [100 mm] *
	E3JK-R[]13	11 m [100 mm] *

หมายเหตุ : อ้างอิงข้อมูลวิศวกรรมในแคตตาล็อกสำหรับรายละเอียด
* ค่าในวงเล็บเป็นค่าระยะห่างระหว่างเซนเซอร์และแผ่นสะท้อนแสงต่ำสุดที่ต้องการ

ขายึด

ขายึดติดมาพร้อมกับเซนเซอร์พร้อมหมายเลขรุ่นที่ประกอบด้วย "-C"

ลักษณะ	รุ่น	ปริมาณ
	E39-L40	1

หมายเหตุ

1. เซ็นเซอร์Through-beamโดยปกติจะขายเป็นชุดที่มีทั้งตัวส่งและตัวรับ
2. สำหรับรายละเอียดขายึดโปรดดูบน E39-L / E39-S / E39-R ซึ่งสามารถดูได้จากเว็บไซต์ OMRON

ข้อมูลทางเทคนิค | Photoelectric Sensor Built-in Amplifier - E3JK series series

Sensing method		Through-beam
Model		E3JK-TR11-[]	E3JK-TR12-[]	E3JK-TR13-[]	E3JK-TR14-[]
Sensing distance		40 m	5 m	40 m	5 m
Standard sensing object		Opaque: 17-mm dia. min.
Differential travel		-
Directional angle		Both Emitter and Receiver 3° min.
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	3 W max. (Emitter 1.5 W max. Receiver 1.5 W max.)
	AC	3 W max. (Emitter 1.5 W max. Receiver 1.5 W max.)
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		-
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster Receiver (E3JK-TR1[]-D) only
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 350 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual and Mounting Bracket (E3JK-TR1[]-C only)

Sensing method		Retro-reflective (without MSR function)		Retro-reflective (with MSR function)
Model		E3JK-RR11-[]	E3JK-RR13-[]	E3JK-RR12-[]
Sensing distance		7 m [100 mm]* (When using E39-R1), 11 m [100 mm]* (When using E39-R2)		6 m [100 mm]* (When using E39-R1), 10 m [100 mm]* (When using E39-R2)
Standard sensing object		Opaque: 75-mm dia. min. (When using E39-R1), Opaque: 100-mm dia. min. (When using E39-R2)
Differential travel		-
Directional angle		1.5° min.
Light source (wavelength)		Red LED (624 nm)	Infrared LED (850 nm)	Red LED (624 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	2 W max.
	AC	2 W max.
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		Mutual interference prevention function
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 180 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual, Mounting Bracket (E3JK-RR1[]-C only), and Reflector (E3JK- RR1[]-C only)

Sensing method		Retro-reflective (without MSR function)		Retro-reflective (with MSR function)
Model		E3JK-RR11-[]	E3JK-RR13-[]	E3JK-RR12-[]
Sensing distance		7 m [100 mm]* (When using E39-R1), 11 m [100 mm]* (When using E39-R2)		6 m [100 mm]* (When using E39-R1), 10 m [100 mm]* (When using E39-R2)
Standard sensing object		Opaque: 75-mm dia. min. (When using E39-R1), Opaque: 100-mm dia. min. (When using E39-R2)
Differential travel		-
Directional angle		1.5° min.
Light source (wavelength)		Red LED (624 nm)	Infrared LED (850 nm)	Red LED (624 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	2 W max.
	AC	2 W max.
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		Mutual interference prevention function
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 180 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual, Mounting Bracket (E3JK-RR1[]-C only), and Reflector (E3JK- RR1[]-C only)

*Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

Sensing method		Diffuse-reflective
Model		E3JK-DR11-[]	E3JK-DR12-[]	E3JK-DR13-[]	E3JK-DR14-[]
Sensing distance		White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm	White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm
Standard sensing object		-
Differential travel		20% max. of sensing distance
Directional angle		-
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		24 to 240 VDC ±10%, ripple (p-p): 10% max. 24 to 240 VAC ±10%, 50/60 Hz
Power consumption	DC	2 W max.
	AC	2 W max.
Control output		Relay output SPDT, 250 VAC, 3 A max. (cosϕ= 1), 5 VDC, 10 mA min., Light-ON/Dark-ON selectable
Protection circuits		Mutual interference prevention function
Life expectancy (relay output)	Mechanical	50,000,000 times min. (switching frequency: 18,000 times/h)
	Electrical	100,000 times min. (switching frequency: 1,800 times/h)
Response time		20 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	100 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 180 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual and Mounting Bracket (E3JK-DR1[]-C only)

Sensing method		Through-beam
Model	NPN output	E3JK-TN11	E3JK-TN12	E3JK-TN13	E3JK-TN14
	PNP output	E3JK-TP11	E3JK-TP12	E3JK-TP13	E3JK-TP14
Sensing distance		40 m	5 m	40 m	5 m
Standard sensing object		Opaque: 17-mm dia. min.
Differential travel		-
Directional angle		Both Emitter and Receiver 3° min.
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		10 to 30 VDC, including ripple (p-p): 10%
Power consumption	DC	40 mA max. (Emitter 25 mA max. Receiver 15 mA max.)
	AC	-
Control output		Load power supply voltage: 30 V max., Load current: 100 mA max., Residual voltage: 3 V max., open-collector output (NPN/PNP output depending on model), Light-ON/Dark-ON selectable
Protection circuits		Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
Life expectancy (relay output)	Mechanical	-
	Electrical	-
Response time		1 ms max.
Sensitivity adjustment		One-turn adjuster Receiver (E3JK-T[][][]-D) only
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 300 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual

Sensing method		Retro-reflective (without MSR function)		Retro-reflective (with MSR function)
Model	NPN output	E3JK-RN11	E3JK-RN13	E3JK-RN12
	PNP output	E3JK-RP11	E3JK-RP13	E3JK-RP12
Sensing distance		7 m [100 mm]* (When using E39-R1), 11 m [100 mm]* (When using E39-R2)		6 m [100 mm]* (When using E39-R1), 10 m [100 mm]* (When using E39-R2)
Standard sensing object		Opaque: 75-mm dia. min.
Differential travel		-
Directional angle		1.5° min.
Light source (wavelength)		Red LED (624 nm)	Infrared LED (850 nm)	Red LED (624 nm)
Power supply voltage		10 to 30 VDC, including ripple (p-p): 10%
Power consumption	DC	30 mA max.
	AC	-
Control output		Load power supply voltage: 30 V max., Load current: 100 mA max., Residual voltage: 3 V max., opencollector output (NPN/PNP output depending on model), Light-ON/Dark-ON selectable
Protection circuits		Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention function, and Output reverse polarity protection
Life expectancy (relay output)	Mechanical	-
	Electrical	-
Response time		1 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 160 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual

*Values in parentheses indicate the minimum required distances between the Sensors and Reflectors.

Sensing method		Diffuse-reflective
Model	NPN output	E3JK-DN11	E3JK-DN12	E3JK-DN13	E3JK-DN14
	PNP output	E3JK-DP11	E3JK-DP12	E3JK-DP13	E3JK-DP14
Sensing distance		White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm	White paper (300 × 300 mm): 2.5 m	White paper (100 × 100 mm): 300 mm
Standard sensing object		-
Differential travel		20% max. of sensing distance
Directional angle		-
Light source (wavelength)		Red LED (624 nm)		Infrared LED (850 nm)
Power supply voltage		10 to 30 VDC, including ripple (p-p): 10%
Power consumption	DC	30 mA max.
	AC	-
Control output		Load power supply voltage: 30 V max., Load current: 100 mA max., Residual voltage: 3 V max., opencollector output (NPN/PNP output depending on model), Light-ON/Dark-ON selectable
Protection circuits		Power supply reverse polarity protection, Output short-circuit protection, Mutual interference prevention function, and Output reverse polarity protection
Life expectancy (relay output)	Mechanical	-
	Electrical	-
Response time		1 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 11,000 lx max.
Ambient temperature range		Operating: -25°C to 55°C, Storage: -40°C to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,500 VAC, 50/60 Hz for 1 min
Vibration resistance	Destruction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
	Malfunction	10 to 55 Hz with a 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	Destruction	500 m/s2 for 3 times each in X, Y, and Z directions
	Malfunction	500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC 60529 IP64
Connection method		Pre-wired (standard length: 2 m)
Weight (packed state)		Approx. 160 g
Material	Case	ABS (Acrylonitrile Butadiene Styrene)
	Lens/Display window	Methacrylic resin
	Adjuster	POM
	Cable	PVC
Bending radius of cable		R18
Accessories		Instruction manual

ขนาด | Photoelectric Sensor Built-in Amplifier - E3JK series

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

Through-beam
E3JK-T[]1[]

＜Emitter＞
E3JK-T[]1[]-L

＜Receiver＞
E3JK-T[]1[]-D

Retro-reflective/Diffuse-reflective
E3JK-R[]1[]
E3JK-D[]1[]

Accessories

Mounting Bracket (Order separately)

Mounting Bracket
E39-L40

With Mounting Bracket Attached

Reflector (Order separately)

E39-R1
E39-R1S

Material:
Reflective surface: acrylic
Rear surface: ABS

E39-R2

Material:
Reflective surface: acrylic
Rear surface: ABS

คุณสมบัติ | Photoelectric Sensor Built-in Amplifier - E3JK series

โฟโตอิเล็กทริกเซนเซอร์ระยะไกลที่รองรับแหล่งจ่ายไฟ AC / DC

• ระยะตรวจจับไกลประมาณ 8 เท่าของรุ่นทั่วไปของ OMRON (สำหรับ Through-beam และ Difuse-reflective)
  • (Through-beam: 40 m, Retro-reflective: 7 m, และ Diffuse-redflective: 2.5 m)
• ปรับปรุงการมองเห็น
  • ไฟ LED สีแดงที่ทำให้มองเห็นจุด
  • ตัวแสดงผลขนาดใหญ่ที่สามารถมองเห็นได้แม้จากระยะไกล
• ปรับปรุงการทำงาน (ขยายตัวปรับความไวและตัวเลือกการทำงาน)
• เลือกอินพุตแหล่งจ่ายไฟได้อย่างอิสระ (24 - 240 VDC, 24 - 240 VAC)
  • (มีประเภทเพิ่มเติมที่เพิ่มในรายการประเภท DC)
• นอกจากนี้ยังมีรุ่นที่มีไฟ LED อินฟราเรด

ข้อมูลจำเพาะ | Photoelectric Sensor Built-in Amplifier - E3JK series

Photoelectric Sensor Built-in Amplifier	E3JK
วิธีการตรวจจับ	Throuh-beam, Retro-Reflective, Diffuse-reflective
ระยะตรวจจับ	2.5, 5, 6, 7, 10, 11, 40 m
	300 mm
แรงดันไฟฟ้า	24 - 240 VDC, 10 - 30VDC
การใช้พลังงาน	สูงสุด 2, 3 วัตต์
	สูงสุด 30, 40 มิลลิแอมป์
เวลาตอบสนอง	สูงสุด 1, 20 มิลลิวินาที
ระดับการป้องกัน	IP64
วัสดุภายนอก	ABS
