Stage Dual Axis Customization - DLK

ดาวน์โหลดไฟล์ PDF

Feature | Stage Dual Axis Customization - DLK

• Multi-forcer simulataneously motion.
• Suitable for laterlly applications.
• For high-speed reciprocating motion.
• Z-axis using a linear motor with a pneumatic counterweight design.
• With high speed and high accuracy.
• Can be equipped with ironless or iron core motor.

---

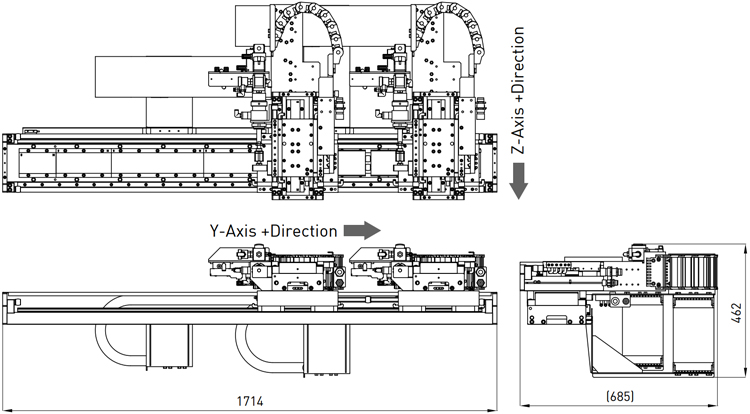

Dimensions | Stage Dual Axis Customization - DLK

---

Specifications | Dual Axis Customization - DLK

Stage type	LMX4C-S13S37-2-32-750
Motor Type	Ironless motor
Stroke(mm)	X-axis : 32, Y-axis : 750
Peak Force(N) / Continuous Force(N)	X-axis : 540/203, Y-axis : 1425/535
Repeatability(µm)	±2 (with HIWIN solution)
Accuracy(µm)	±5 (after error mapping)
Max. Acceleration(m/s2)	X-axis : 10, Y-axis : 10(with payload)
Max. Velocity(m/s)	X-axis : 0.5, Y-axis : 1.3(with payload)
Payload(kg)	10
Stage orientation	Laterally

*Note : All specifications can be designed according to customer demand.
