Hiwin Linear Rotary

Linear Rotary

Hiwin Linear Rotary : Linear+Rotary Robot is the ONLY robot in the world, which combines linear and rotary direct drive motors.It emphases on high performance, eco-efficiency, reliability,and flexibility. Linear+Rotary Robot not only applies in semiconductor industry, but also solar, food, and robot industry. With linear and rotary motion requirement, Linear+Rotary Robot can create smart and automatic values.

ดาวน์โหลดไฟล์ PDF

Hiwin Linear Rotary

• Feature
  • 10 years of product stability and more than 1 year maintenance.
  • 50nm positioning accuracy can be achieved.
  • Up to 98% more transmission efficiency and 50% of powersaving with combination of direct drive motors and high efficient driver.
• Innovation
  • HELIX's consists of shaft motor, torque motor and driver. It possess feature such as High performance, Eco-efficiency, reLlability, fleXible.
• HELIX's features
  • High performance : HELIX performs strong and fast motion under same driving center with 2 independent motors to achieve 50nm positioning capability.
  • Eco-effeciency : Up to 98% more transmission efficiency and 50% of power saving with combination of direct drive motors drive motors and high efficient driver.
  • reLIability : The combination of linear and rotary motors insures excellent reliability and superior quality service.
  • fleXible : Hiwin Mikrosystem Corp. shows high flexibility, competiveness and value through creating innovative service for customers.

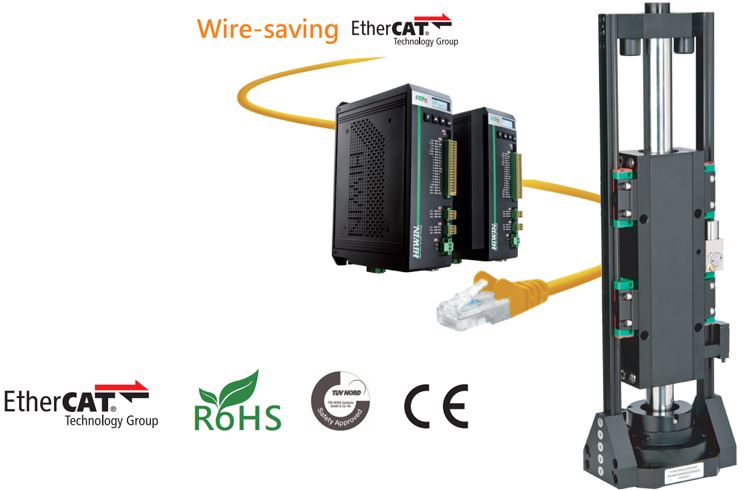

Human factors design

With the combination of direct drive and efficient driver, the design of HELIX realizes the simplicity of mechanical components and also the reliacility of assembly. HELIX is driven by D1-N driver, which is certificated with Function safety and CE certification. High speed and stable internet communication can be achieved through EtherCAT communication module.

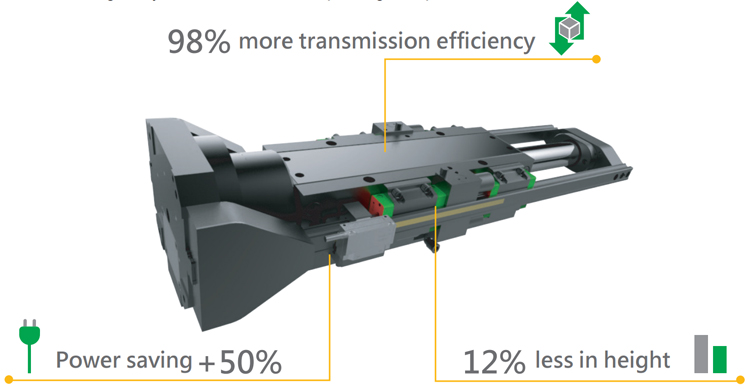

Green energy

HELIX reaises up to 98% more trasmission efficiency and is able to save up to 50% of power with features of wear free and high efficient direct motor. It lowers 12% in total height compared to previous system. Lifetime of HEXLIX core components are twice longer than ballscrew. It greatly reduces waste of replacing components.
