Feature | Stage Dual Axis Customization - DLB

• Upside down applications.
• Suitable for point-to-point motion.
• High stiffness extruded aluminum structure.
• Can be equipment with ironless or ironcore motor.
• Wide range of applications.

---

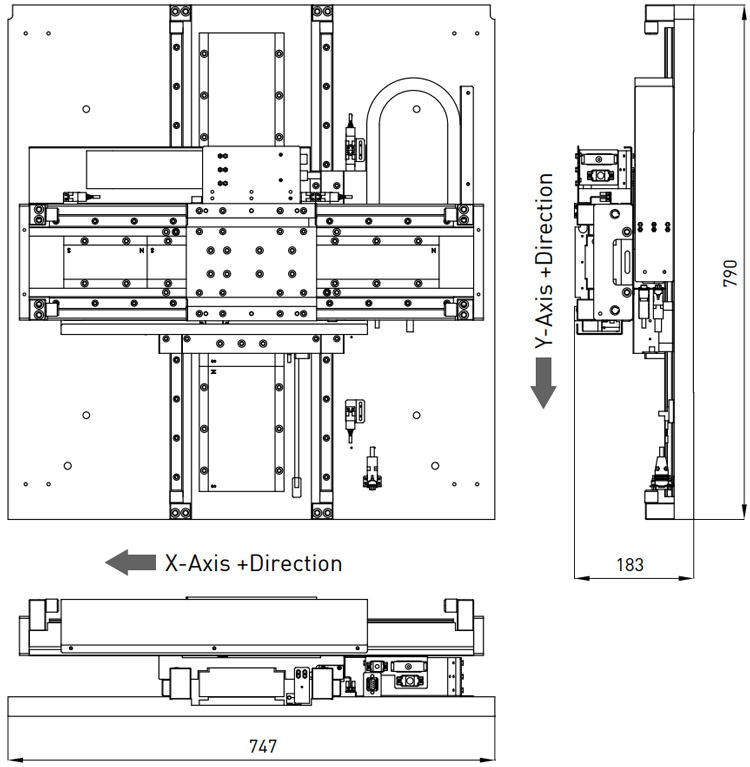

Dimensions | Stage Dual Axis Customization - DLB

---

Specifications | Dual Axis Customization - DLB

Stage type	LMX2C-S23-S47L-362-390
Motor Type	Ironless(/Ironcore) motor
Stroke(mm)	X-axis : 362, Y-axis : 390
Peak Force(N) / Continuous Force(N)	X-axis : 639/240, Y-axis : 1953/733
Repeatability(µm)	±2 (with HIWIN solution)
Accuracy(µm)	±4 (after error mapping)
Max. Acceleration(m/s2)	10(with payload)
Max. Velocity(m/s)	1(with payload)
Payload(kg)	10
Stage orientation	Upside down
