Hiwin Dual Axis Customization - DLD

Hiwin Dual Axis Customization - DLD : PCB/steel plate laser cutting applicatopms, automation equipment, and 3D engraving machine applications.

Stage Dual Axis Customization - DLD

ดาวน์โหลดไฟล์ PDF

Feature | Stage Dual Axis Customization - DLD

• Suitable for point-to-point motion.
• Vertical straightness up to ± 4 µm.
• Use dust-proof design.
• High load capacity.
• Simple structure and wide range of applications.

---

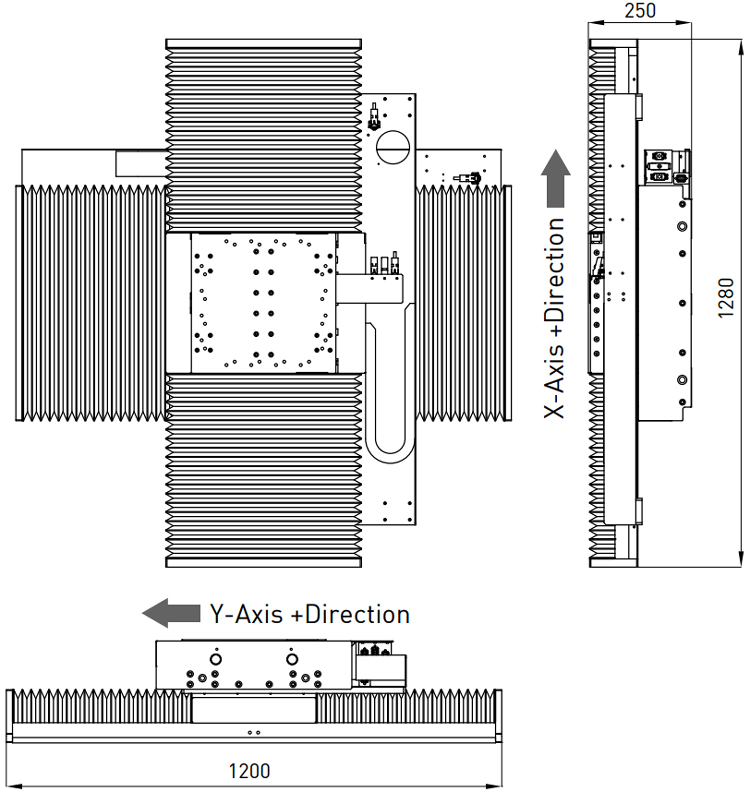

Dimensions | Stage Dual Axis Customization - DLD

---

Specifications | Dual Axis Customization - DLD

Stage type	LMX2C-S37S67L-600-600
Motor Type	Ironcore(/Ironless) motor
Stroke(mm)	X-axis : 600, Y-axis : 600
Peak Force(N) / Continuous Force(N)	X-axis : 1425/535, Y-axis : 2850/1069
Repeatability(µm)	±2 (with HIWIN solution)
Accuracy(µm)	±3 (after error mapping)
Max. Acceleration(m/s)	X-axis : 10, Y-axis : 7(with payload)
Max. Velocity(m/s)	0.7(with payload)
Orthogonality(arc-sec)	±5
Payload(kg)	35
Stage orientation	Horizontal

*Note : All specifications can be designed according to customer demand.
