Hiwin Dual Axis Customization - DLC

Hiwin Dual Axis Customization - DLC : Biomedical testing quioment, electronic components plug-in equipment.

Stage Dual Axis Customization - DLC

ดาวน์โหลดไฟล์ PDF

Feature | Stage Dual Axis Customization - DLC

• Suitable for High-speed scanning and rapid positioning motion.
• Simple structure and wide range of applications.

---

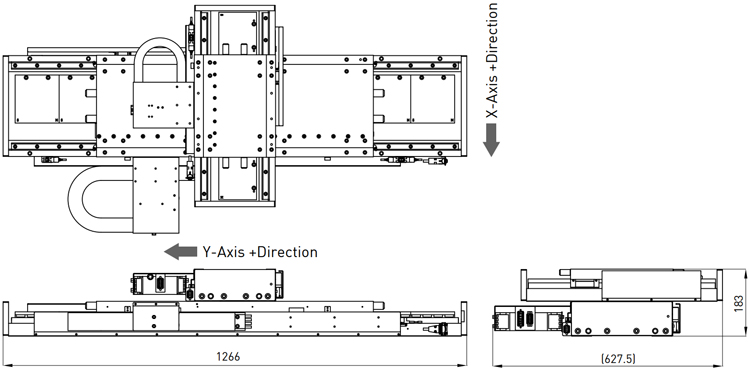

Dimensions | Stage Dual Axis Customization - DLC

---

Specifications | Dual Axis Customization - DLC

Stage type	LMX2C-CC8CFC-150-400
Motor Type	Ironless(/Ironcore) motor
Stroke(mm)	X-axis : 150, Y-axis : 400
Peak Force(N) / Continuous Force(N)	X-axis : 780/195, Y-axis : 2736/684
Repeatability(µm)	±2 (with HIWIN solution)
Accuracy(µm)	±5 (after error mapping)
Max. Acceleration(m/s)	X-axis : 10, Y-axis : 10(with payload)
Max. Velocity(m/s)	X-axis : 1, Y-axis : 1(with payload)
Payload(kg)	10
Stage orientation	Horizontal

*Note : All specifications can be designed according to customer demand.
