Hiwin Gantry Structure Standard : Linear motor LMG2A-C stages are equipped with coreless motors and well suited for applications with a high degree of synchronous operation requirements. They are distinguished by their low profile design. The travel is measured via optical encoder incrementally.
LMG2A-series standardized gantry system is a unilateral drive system.
LMG2A-C applies to ironless linear motor, and LMG2A-S applies to iron core linear motor.
Feature | Gantry Structure Standard - LMCB6-CC8
- High acceleration
- No cogging
- Low inerta
- Easy to assemble
- High stiffness aluminum gantry structure
- Equipped with ironless linear motor
- Optical detection application

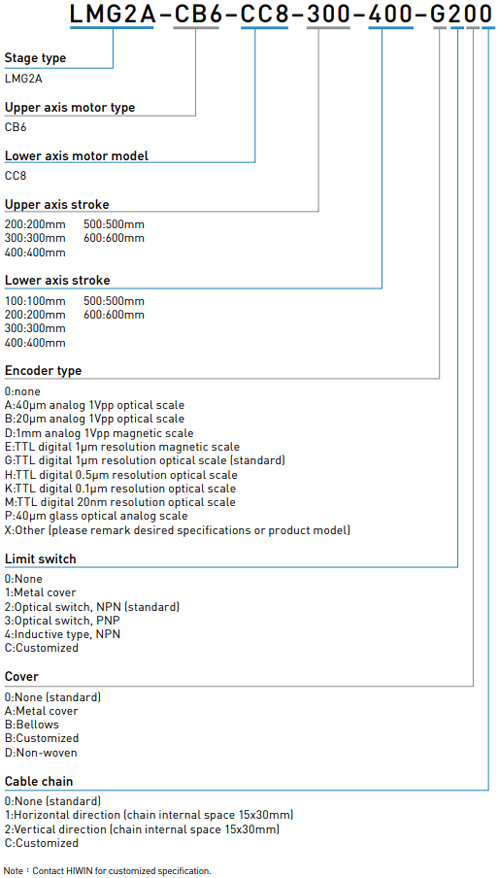

Code | Gantry Structure Standard - LMCB6-CC8

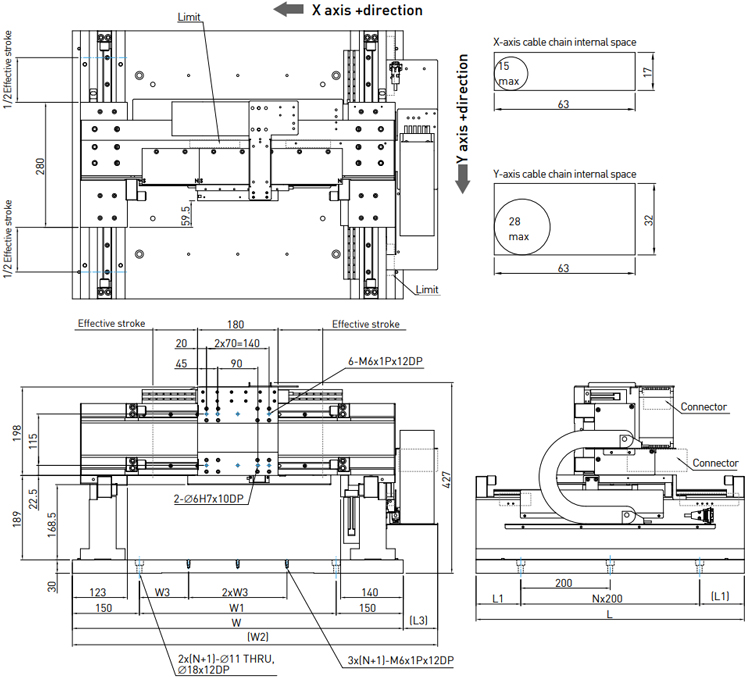

Dimensions | Gantry Structure Standard - LMCB6-CC8
Specifications | Gantry Structure Standard - LMCB6-CC8
X-Stroke (mm) | Y-Stroke (mm) | W (mm) | W1 (mm) | W2 (mm) | W3 (mm) | N | L (mm) | L1 (mm) | Absolute accuracy (µm) | Resolution (µm) | Repeatability (µm) | Orthogonality (arc-sec) | X moving unit mass (kg) | X moving unit mass (kg) | Mass (kg) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
200 | 200 | 740 | 440 | 817 | 110 | 2 | 600 | 100 | ±9 | 1µm | ±3 | ±5 | 5 | 31 | 50 |
300 | 300 | 840 | 540 | 917 | 135 | 3 | 700 | 50 | ±9 | ±3 | ±5 | 5 | 35 | 52 | |
400 | 400 | 940 | 640 | 1017 | 160 | 3 | 800 | 100 | ±12 | ±4 | ±5 | 5 | 39 | 54 | |
500 | 500 | 1040 | 740 | 1117 | 185 | 4 | 900 | 50 | ±12 | ±4 | ±5 | 5 | 43 | 54 | |
600 | 600 | 1140 | 840 | 1217 | 210 | 4 | 1000 | 100 | ±12 | ±4 | ±5 | 5 | 47 | 56 |
- Absolute accuracy is after error mapping (with HIWIN drive).
- Except resolution magnetic scale.
- For higher resolution, please contact HIWIN MIKROSYSTEM.
