SMC - Reduced-wiring Fieldbus System
SMC - Reduced-wiring Fieldbus System (Serial Transmission System)
มีทั้งหมด 13 รุ่น คือ
1) Serial Transmission System EX120/121/122/123/124/126/140/180
Features | Serial Transmission System EX120/121/122/123/124/126/140/180
- For Output
- ∗The applicable protocols differ depending on the series. For details, refer to the catalog of each series.
- ∗The NKE Corp. Fieldbus H System is to be discontinued as of February 2021. Please consider switching to a different network.
Specifications | Serial Transmission System EX120/121/122/123/124/126/140/180
| Series | Enclosure | Communication protocol∗ | Applicable valve |
|---|---|---|---|
| EX120 | IP20 | DeviceNetTM CC-Link CompoNetTM CompoBus/S NKE (Wiring saving system) S-LINK V (Made to order) |
JSY1000, 3000, 5000 (Plug-in) SY3000, 5000, 7000 (Plug-in) VQ1000, 2000 SV1000, 2000, 3000, 4000 |
| EX121 | IP20 | DeviceNetTM CC-Link CompoNetTM CompoBus/S NKE (Wiring saving system) S-LINK V (Made to order) |
SY3000, 5000 |
| EX122 | IP20 | DeviceNetTM CC-Link CompoNetTM CompoBus/S NKE (Wiring saving system) S-LINK V (Made to order) |
SY3000, 5000 |
| EX124 | IP65 | CC-Link CompoBus/S DeviceNetTM (Made to order) |
VQ2000, 4000, 5000 |
| EX126 | IP67 | CC-Link | SY3000, 5000, 7000 (Plug-in) SV1000, 2000, 3000 VQC1000, 2000, 4000, 5000 |
| EX140 | IP20 | DeviceNetTM CC-Link CompoBus/S NKE(Wiring saving system) |
SZ3000 SQ1000, 2000 |
| EX180 | IP20 | DeviceNetTM CC-Link EtherCAT (Made to order) AnyWireASLINK (Made to order) |
SY3000, 5000, 7000 SJ2000, 3000 S0700 |
2) Serial Transmission System EX250
Features | Serial Transmission System EX250
- For Input/Output
- * The applicable protocols differ depending on the series. For details, refer to the catalog of each series.
Specifications | Serial Transmission System EX250
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX250 | IP67 | DeviceNetTM PROFIBUS DP CC-Link AS-Interface CANopen EtherNet/IPTM |
JSY1000, 3000, 5000 (Plug-in) SY3000, 5000, 7000 (Plug-in) VQC1000, 2000, 4000, 5000 SV1000, 2000, 3000 S0700(IP40) |

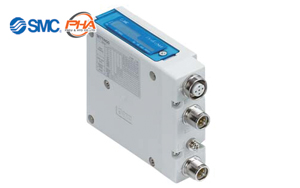

3) Serial Transmission System EX260
Features | Serial Transmission System EX260
- For Output
- *The applicable protocols differ depending on the series. For details, refer to the catalog of each series.
- IP67
- RJ45 communication connectors (X205)
Specifications | Serial Transmission System EX260
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX260 | IP67 | DeviceNeTM PROFIBUS DP CC-Link EtherCAT PROFINET EtherNet/IPTM Ethernet POWERLINK IO-Link (Only available for SY, JSY, VQC communication connectors) PROFIsafe (Only available for SY, JSY, VQC communication connectors) |
SY3000, 5000, 7000 (Plug-in) JSY1000, 3000, 5000 (Plug-in) VQC1000, 2000, 4000, 5000 SV1000, 2000, 3000 S0700（IP40) |

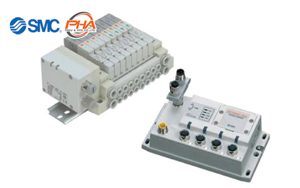

4) Serial Transmission System EX500
Features | Serial Transmission System EX500
- For Input/Output, Gateway Type
- ∗The applicable protocols differ depending on the series. For details, refer to the catalog of each series.
- ∗ The EX500-GDN1 series was discontinued in March 2021. Please select the EX260-SDN series, EX600-SDN series.
Specifications | Serial Transmission System EX500
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX500 | IP67 | EtherNet/IPTM PROFINET PROFIBUS DP DeviceNetTM |
SY3000, 5000, 7000 (Plug-in) VQC1000, 2000, 4000, 5000 SV1000, 2000, 3000 S0700 (IP40) |
5) Serial Transmission System EX510
Features | Serial Transmission System EX510
- For Input/Output, Gateway Type
- ∗The applicable protocols differ depending on the series. For details, refer to the catalog of each series.
Specifications | Serial Transmission System EX510
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX510 | IP20 | PROFIBUS DP DeviceNetTM CC-Link EtherNet/IPTM (Made to Order) PROFINET (Made to Order) |
SJ2000, 3000 SY3000, 5000, 7000 (Plug-in) SY3000, 5000, 7000, 9000 SYJ3000, 5000, 7000 SQ1000, 2000 SZ3000 VQ1000, 2000 VQZ1000, 2000, 3000 S0700 |
6) Serial Transmission System EX600
Features | Serial Transmission System EX600
- For Output
- ∗The applicable protocols differ depending on the series. For details, refer to the catalog of each series.
Specifications | Serial Transmission System EX600
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX600 | IP67 | PROFIBUS DP DeviceNetTM CC-Link EtherNet/IPTM EtherCAT PROFINET PROFINET (IO-Link master compatible) MRP (PROFINET) (Made to order) Ethernet POWERLINK (Made to order) Modbus TCP (Made to order) CC-Link IE Field (Made to order) EtherNet/IPTM (IO-Link master compatible) (Made to order) |
JSY1000, 3000, 5000 (Plug-in) SY3000, 5000, 7000 (Plug-in) SV1000, 2000, 3000 VQC1000, 2000, 4000, 5000 S0700(IP40) |

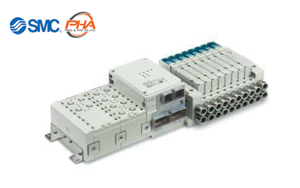

7) Fieldbus System EX245 (NEW)
Features | Fieldbus System EX245 (NEW)
- A PROFIsafe compatible product has been added. [New]
- For Input/Output
- Push Pull connectors AIDA specifications compliant SCRJ connectors, RJ45 connectors
- Compatible with the PROFIenergy energy-saving function
- Shared Device function
Specifications | Fieldbus System EX245 (NEW)
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX245 | IP65 | PROFINET PROFIsafe |
JSY3000, 5000 (Plug-in) SY3000, 5000 (Plug-in) VQC2000, 4000 |
8) Fieldbus System EX245
Features | Fieldbus System EX245
- For Input/Output
- AIDA∗ specifications compliant
- ∗ Abbreviation of the Automation Initiative of German (Deutschland) Automobile Manufacturers
- Push Pull connectors One-touch installation and removal Reduced wiring time
- Modules can be combined flexibly.
Specifications | Fieldbus System EX245
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX245 | IP65 | PROFINET INTERBUS (Made to order) PROFIBUS DP (Made to order) |
SY3000, 5000, 7000 (Plug-in) VQC1000, 2000, 4000, 5000 SV1000, 2000, 3000 |
9) Power Block EX9-PE1-X15/X22/X23/X24
Features | Power Block EX9-PE1-X15/X22/X23/X24
- Power can be supplied individually to 8 power supply systems using up to 4 power blocks. Different areas on the same manifold can be controlled by separate-system power supplies. Contributes to the reduction of installation space
- Maximum number of outputs: 32
- IP67 compliant (Manifold assembly)
Specifications | Power Block EX9-PE1-X15/X22/X23/X24
| Series | Applicable valve |
|---|---|
| EX9-PE1-X15/X22/X23/X24 | JSY, SY, VQC, S0700, SV |

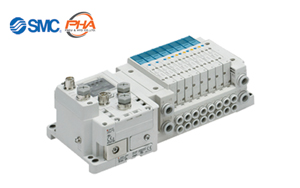

10) CC-Link IE Field Compatible Fieldbus System EX600-SCF1-X60
Features | CC-Link IE Field Compatible Fieldbus System EX600-SCF1-X60
- Supports the CC-Link IE Field communication protocol
Specifications | CC-Link IE Field Compatible Fieldbus System EX600-SCF1-X60
| Series | Enclosure | Communication protocol* | Applicable valve |
|---|---|---|---|
| EX600-SCF1-X60 | IP67 (Manifold assembly) |
CC-Link IE Field | SY3000, 5000, 7000 (Plug-in) JSY1000, 3000, 5000 VQC1000, 2000, 4000, 5000 SV1000, 2000, 3000 S0700 |

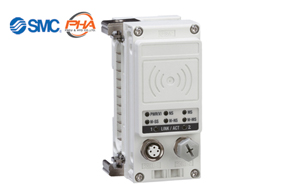

11) Wireless System EX600-W
Features | Wireless System EX600-W
- Usable even in welding environments
- Noise resistance Uses the 2.4 GHz ISM frequency band Frequency hopping: Every 5 ms
- High-speed connection: From power supply ON to start of communication: Min. 250 ms
- Communication response (Signal response time): 5 ms
- Communication cables not required
- Number of I/O points: Max. 1280 inputs / 1280 outputs
Specifications | Wireless System EX600-W
| Series | Enclosure | Communication protocol | Applicable valve |
|---|---|---|---|
| EX600-W | IP67 equivalent | EtherNet/IPTM PROFINET |
JSY1000, 3000, 5000 (Plug-in) SY3000, 5000, 7000(Plug-in) SV1000, 2000, 3000 S0700 (IP40) VQC1000, 2000, 4000, 5000 |

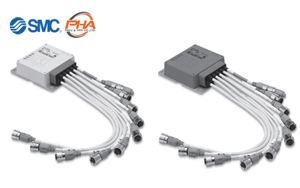

12) Wireless System Compact Remote EX600-W
Features | Wireless System Compact Remote EX600-W
- Applicable to existing wireless systems
- Compact, Lightweight
- Area: Approx. 61% reduction* (59.8 cm2 ← 155 cm2)
- Volume: Approx. 86% reduction∗ (159 cm3 ← 1,139 cm3)
- Weight: Approx. 87% reduction* (130 g ← 965 g)
- ∗ For the e-CON type (Compared with the existing remote, M8 connector / digital 8 inputs specification)
Specifications | Wireless System Compact Remote EX600-W
| Series | Enclosure | Communication protocol | Applicable valve |
|---|---|---|---|
| EX600-W | e-CON type: IP20 Grommet type: IP67 |
SMC original protocol | Frequency Hopping Spread Spectrum (FHSS) |
13) M8/M12 Connector PCA/EX9/EX500
Features | M8/M12 Connector PCA/EX9/EX500
- Communication cable/connector: CC-Link, DeviceNet™, PROFIBUS DP, EtherNet/IP™, PROFINET, EtherCAT🄬, Ethernet POWERLINK
- Compliant with IEC61076-2-101 and IEC60947-5-2 Standards
- IP67 (IEC60529)
- Field-wireable connectors: No exclusive tools required, Reduction in wiring time
- SPEEDCON: Just insert the connector and make a 180° rotation.
| Series |
|---|
| PCA |
| EX9 |
| EX500 |
