SMC - Air Operated Valves

มีทั้งหมด 13 รุ่น คือ

5-Port Air Operated Valve SYA3000/5000/7000
4/5-Port Air Operated Valve SYJA3000/5000/7000
5-Port Air Operated Valve VZA2000/4000
5-Port Air Operated Valve VFA1000/3000/5000
5-Port Air Operated Valve VFRA3000/4000
5-Port Air Operated Valve VPA4□50/4□70
4/5-Port Air Operated Valve VSA4□20/4□30/4□40

3-Port Air Operated Valve SYJA300/500/700
3-Port Air Operated Valve VZA200/400
3-Port Air Operated Valve VPA300/500/700
3-Port Air Operated Valve VTA301/315
3-Port Air Operated Valve VGA342
3-Port Air Operated Valve VPA3145/3165/3185

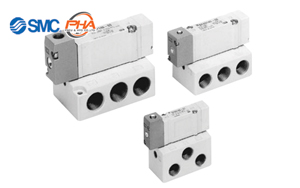

1) 5-Port Air Operated Valve SYA3000/5000/7000

SMC - 5-Port Air Operated Valve SYA3000/5000/7000

Features | 5-Port Air Operated Valve SYA3000/5000/7000

Can be used with the same manifolds as the SY3000/5000/7000 series non plug-in type.

ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Air Operated Valve SYA3000/5000/7000

Series	Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm³/(s・bar)]	Flow rate characteristics 4/2→5/3(A/B→EA/EB) b	Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv	Applicable cylinder size
SYA3000	1.1	0.30	0.26	φ40
SYA5000	2.8	0.29	0.66	φ63
SYA7000	4.5	0.27	1.1	φ80

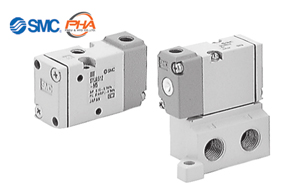

2) 4/5-Port Air Operated Valve SYJA3000/5000/7000

SMC - 4/5-Port Air Operated Valve SYA3000/5000/7000 — SMC - 4/5-Port Air Operated Valve SYJA3000/5000/7000

Features | 4/5-Port Air Operated Valve SYJA3000/5000/7000

Can be used with the same manifolds as the SY3000/5000/7000 series.

ดาวน์โหลดไฟล์ PDF

Specifications | 4/5-Port Air Operated Valve SYJA3000/5000/7000

Series	Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm³/(s・bar)]	Flow rate characteristics 4/2→5/3(A/B→EA/EB) b	Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv	Applicable cylinder size
SYJA3000	0.46	0.35	0.12	φ25
SYJA5000	0.83	0.32	0.21	φ40
SYJA7000	2.9	0.35	0.74	φ50

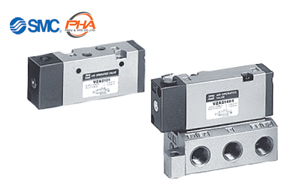

3) 5-Port Air Operated Valve VZA2000/4000

SMC - 5-Port Air Operated Valve VZA2000/4000

Features | 5-Port Air Operated Valve VZA2000/4000

Can be used with the same manifolds as the VZ2000/4000 series.
Can be mounted on VQZ2000/3000 manifolds.

ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Air Operated Valve VZA2000/4000

Series	Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm³/(s・bar)]	Flow rate characteristics 4/2→5/3(A/B→EA/EB) b	Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv	Applicable cylinder size
VZA2000	0.90	0.25	0.21	φ40
VZA4000	2.2	0.19	0.54	φ50

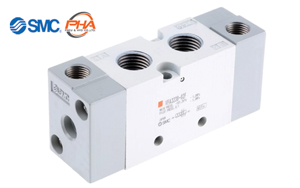

4) 5-Port Air Operated Valve VFA1000/3000/5000

SMC - 5-Port Air Operated Valve VFA1000/3000/5000

Features | 5-Port Air Operated Valve VFA1000/3000/5000

Can be used with the same manifolds as the VF1000/3000/5000 series

ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Air Operated Valve VFA1000/3000/5000

Series	Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm³/(s・bar)]	Flow rate characteristics 4/2→5/3(A/B→EA/EB) b	Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv	Applicable cylinder size
VFA1000	0.59	0.28	0.13	φ40
VFA3000	3.1	0.32	0.75	φ80
VFA5000	10.0	0.49	2.9	φ125

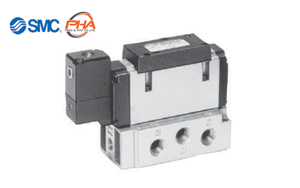

5) 5-Port Air Operated Valve VFRA3000/4000

SMC - 5-Port Air Operated Valve VFRA3000/4000

Features | 5-Port Air Operated Valve VFRA3000/4000

Can be used with the same manifolds as the VFR3000/4000 series non plug-in type.

ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Air Operated Valve VFRA3000/4000

Series	Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm³/(s・bar)]	Flow rate characteristics 4/2→5/3(A/B→EA/EB) b	Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv	Applicable cylinder size
VFA3000	8.6	0.37	2.2	φ100
VFA4000	14	0.30	3.7	φ125

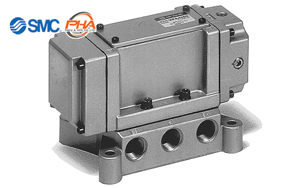

6) 5-Port Air Operated Valve VPA4□50/4□70

SMC - 5-Port Air Operated Valve VPA4□50/4□70

Features | 5-Port Air Operated Valve VPA4□50/4□70

Can be used with the same manifolds as the VP4□50 series.

ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Air Operated Valve VPA4□50/4□70

Series	Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm³/(s・bar)]	Flow rate characteristics 4/2→5/3(A/B→EA/EB) b	Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv	Applicable cylinder size
VPA4□50	21	0.28	5.6	φ140
VPA4□70	Effective area：300 mm²	Effective area：300 mm²	Effective area：300 mm²	φ300

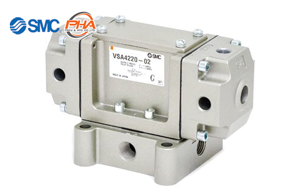

7) 4/5-Port Air Operated Valve VSA4□20/4□30/4□40

SMC - 4/5-Port Air Operated Valve VSA4□20/4□30/4□40

Features | 4/5-Port Air Operated Valve VSA4□20/4□30/4□40

Metal seal main valve construction.

ดาวน์โหลดไฟล์ PDF

Specifications | 4/5-Port Air Operated Valve VSA4□20/4□30/4□40

Series	Flow rate characteristics A/B→EA/EB C[dm³/(s・ba)]	Flow rate characteristics A/B→EA/EB b	Flow rate characteristics A/B→EA/EB Cv	Applicable cylinder size
VSA4□20	5.6	0.51	1.4	φ80
VSA4□30	9.6	0.17	2.4	φ100
VSA4□40	16	0.32	4.2	φ140

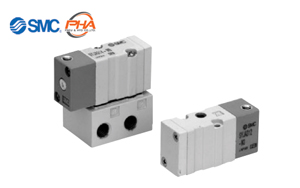

8) 3-Port Air Operated Valve SYJA300/500/700

SMC - 3-Port Air Operated Valve SYJA300/500/700

Features | 3-Port Air Operated Valve SYJA300/500/700

Can be used with the same manifolds as the SYJ300/500/700 series.
Manual override is possible.

ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Air Operated Valve SYJA300/500/700

Series	Flow rate characteristics 2→3(A→R) C[dm³/(s・bar)]	Flow rate characteristics 2→3(A→R) b	Flow rate characteristics 2→3(A→R) Cv
SYJA300	0.36	0.31	0.089
SYJA500	1.2	0.48	0.34
SYJA700	2.7	0.34	0.69

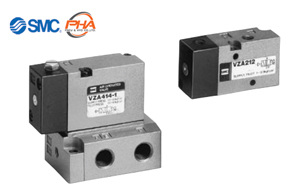

9) 3-Port Air Operated Valve VZA200/400

SMC - 3-Port Air Operated Valve VZA200/400

Features | 3-Port Air Operated Valve VZA200/400

Metal seal main valve construction

ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Air Operated Valve VZA200/400

Series	Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm³/(s・bar)]	Flow rate characteristics 4/2→5/3(A/B→EA/EB) b	Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv
VZA200	0.85	0.35	0.22
VZA400	2.2	0.17	0.53

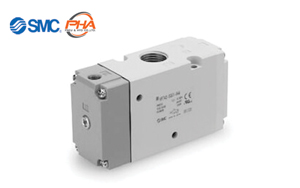

10) 3-Port Air Operated Valve VPA300/500/700

SMC - 3-Port Air Operated Valve VPA300/500/700

Features | 3-Port Air Operated Valve VPA300/500/700

Can be used with the same manifolds as the VP300/500/700 series internal pilot type.
Easy conversion to N.C. or N.O.

ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Air Operated Valve VPA300/500/700

Series	Flow rate characteristics 2→3(A→R) C[dm³/(s・bar)]	Flow rate characteristics 2→3(A→R) b	Flow rate characteristics 2→3(A→R) Cv
VPA300	4.2	0.26	1.0
VPA500	8.9	0.20	2.1
VPA700	15.3	0.22	3.7

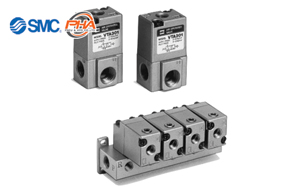

11) 3-Port Air Operated Valve VTA301/315

SMC - 3-Port Air Operated Valve VTA301/315

Features | 3-Port Air Operated Valve VTA301/315

Universal porting
Can be used with a pressure of 0 MPa or more

ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Air Operated Valve VTA301/315

Series	Flow rate characteristics 2→3(A→R) C[dm³/(s・bar)]	Flow rate characteristics 2→3(A→R) b	Flow rate characteristics 2→3(A→R) Cv
VTA301	0.60	0.29	0.15
VTA315	1.7	0.39	0.45

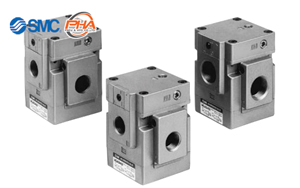

12) 3-Port Air Operated Valve VGA342

Features | 3-Port Air Operated Valve VGA342

Easy conversion to N.C. or N.O.

ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Air Operated Valve VGA342

Series	Flow rate characteristics 2→3(A→R) C[dm³/(s・bar)]	Flow rate characteristics 2→3(A→R) b	Flow rate characteristics 2→3(A→R) Cv
VGA342	38	0.32	9.8

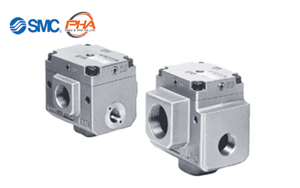

13) 3-Port Air Operated Valve VPA3145/3165/3185

SMC - 3-Port Air Operated Valve VPA3145/3165/3185

Features | 3-Port Air Operated Valve VPA3145/3165/3185

High flow capacity, small exhaust resistance

ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Air Operated Valve VPA3145/3165/3185

Series	Flow rate characteristics 2→3(OUT→EXH) C[dm³/(s・bar)]	Flow rate characteristics 2→3(OUT→EXH) b	Flow rate characteristics 2→3(OUT→EXH) Cv
VPA3145	42	0.39	10
VPA3165	Effective area: 330 mm²	Effective area: 330 mm²	Effective area: 330 mm²
VPA3185	Effective area: 670 mm²	Effective area: 670 mm²	Effective area: 670 mm²
