มีทั้งหมด 13 รุ่น คือ

  1. 3-Port Solenoid Valve/Unit Manifold Valve VV061
  2. 3-Port Solenoid Valve/Highly Integrated Unit Manifold VV100
  3. 3-Port Solenoid Valve V100
  4. 3-Port Solenoid Valve S070
  5. 3-Port Solenoid Valve VQ100
  6. 4-Port Solenoid Valve/Direct Operated Poppet Type VQD1000
  7. Vacuum/Release Unit VQD1000-V
  1. 3-Port Solenoid Valve/Direct Operated Poppet Type VK300
  2. 5-Port Solenoid Valve/Direct Operated Poppet Type VK3000
  3. 3-Port Solenoid Valve/Direct Operated Poppet Type VT307
  4. 3-Port Solenoid Valve/Direct Operated Poppet Type VT317/325
  5. 5-Port Direct Operated Solenoid Valve VS4□10
  6. 3-Port Direct Operated Solenoid Valve VS3115/3110/3135/3145

1) 3-Port Solenoid Valve/Unit Manifold Valve VV061

SMC - 3-Port Solenoid Valve/Unit Manifold Valve VV061
SMC - 3-Port Solenoid Valve/Unit Manifold Valve VV061

Features | 3-Port Solenoid Valve/Unit Manifold Valve VV061

  • Valve, base plate, base, and fitting in one compact unit
  • Innovative unit manifold
  • Equipped with a 6 mm wide valve, V060 series
ดาวน์โหลดไฟล์ PDF

Specifications | Direct Operated 3/4/5 Port Solenoid Valves

SeriesTypeFlow rate characteristics
2→3(A→R)
C[dm3/(s・bar)]		Power consumption
(W)		For use in vacuum
applications
VV061 Standard
High flow		 Effective area：0.11 mm2
Effective area：0.21 mm2		 0.55 (Standard)
0.23 (With power saving circuit)		 - 100 kPa

2) 3-Port Solenoid Valve/Highly Integrated Unit Manifold VV100

SMC - 3-Port Solenoid Valve/Highly Integrated Unit Manifold VV100
SMC - 3-Port Solenoid Valve/Highly Integrated Unit Manifold VV100

Features | 3-Port Solenoid Valve/Highly Integrated Unit Manifold VV100

  • Compact manifold with two 3-port valves on 1 station
  • Connector (For plug-in connection)
  • Individually wired valves can be added.
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Solenoid Valve/Highly Integrated Unit Manifold VV100

SeriesFlow rate characteristics
2a/2b→3(E)
C[dm3/(s・bar)]		Flow rate characteristics
2a/2b→3(E)
b		Power consumption
(W)		For use in vacuum
applications
VV100 0.05 0.29 0.4 (Standard)
0.15 (With power saving circuit)		 - 100 kPa

3) 3-Port Solenoid Valve V100

SMC - 3-Port Solenoid Valve V100
SMC - 3-Port Solenoid Valve V100

Features | 3-Port Solenoid Valve V100

  • Compact manifold with two 3-port valves on 1 station
  • Connector (For plug-in connection)
  • Individually wired valves can be added.
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Solenoid Valve V100

SeriesTypeFlow rate characteristics
2→3
C[dm3/(s・bar)]		Flow rate characteristics
2→3
b		Flow rate characteristics
2→3
Cv		Power consumption
(W)		For use in vacuum
applications
V100 Standard 0.037 0.11 0.008 0.35(Standard)
0.1(With power saving circuit)		 - 100 kPa
V100 High flow 0.076 0.07 0.016 1 - 100 kPa

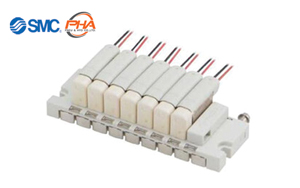

4) 3-Port Solenoid Valve S070

SMC - 3-Port Solenoid Valve S070
SMC - 3-Port Solenoid Valve S070

Features | 3-Port Solenoid Valve S070

  • 7 mm wide compact solenoid valve manifold
  • Weight of valve alone: 5 g
  • Single unit specifications, base mounted manifolds, and body ported manifolds can be selected.
  • Manifold type no.: SS073
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Solenoid Valve S070

SeriesFlow rate
characteristics
C[dm3/(s・bar)]		Flow rate
characteristics
b		Flow rate
characteristics
Cv		Power
consumption
(W)		Max. operating
pressure: MPa
S070 0.042 0.27 0.011 0.5 0.5
0.060 0.28 0.016 0.5 0.3
0.042 0.27 0.011 0.35 0.3
0.060 0.28 0.016 0.35 0.1
0.021 0.27 0.006 0.1 (With power saving circuit) 0.3
0.042 0.28 0.011 0.1 (With power saving circuit) 0.1

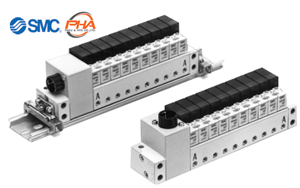

5) 3-Port Solenoid Valve VQ100

SMC - 3-Port Solenoid Valve VQ100
SMC - 3-Port Solenoid Valve VQ100

Features | 3-Port Solenoid Valve VQ100

  • High speed, stable response
  • Copper-free
  • A wide variety of wiring methods are available.
  • Can be used for vacuum applications
  • Manifold type no.: VV3Q11, VV3Q12
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Solenoid Valve VQ100

SeriesTypeFlow rate characteristics
2→3 (2→1)
C[dm3/(s・bar)]		Flow rate characteristics
2→3 (2→1)
b		Flow rate characteristics
2→3 (2→1)
Cv		Power consumption
(W)		For use in vacuum
applications
VQ100 Standard 0.083 0.28 0.021 1.0
0.5 (Low wattage type)		 - 100 kPa
Large flow capacity 0.14 0.25 0.036

6) 4-Port Solenoid Valve/Direct Operated Poppet Type VQD1000

SMC - 4-Port Solenoid Valve/Direct Operated Poppet Type VQD1000
SMC - 4-Port Solenoid Valve/Direct Operated Poppet Type VQD1000

Features | 4-Port Solenoid Valve/Direct Operated Poppet Type VQD1000

  • Since the main valve has no sliding seals, a non-oil specification (Made to Order) is available. There is also no exhaust to the atmosphere.
  • High speed, with stable response times
  • Can be used for vacuum applications
  • Manifold type no.: VV4QD12, VV4QD15
ดาวน์โหลดไฟล์ PDF

Specifications | 4-Port Solenoid Valve/Direct Operated Poppet Type VQD1000

SeriesFlow rate characteristics
4/2→5/3(A/B→EA/EB)
C[dm3/(s・bar)]		Flow rate characteristics
4/2→5/3(A/B→EA/EB)
b		Flow rate characteristics
4/2→5/3(A/B→EA/EB)
Cv		Applicable cylinder sizePower consumption
(W)
VQD1000 0.27 0.28 0.07 φ25 2.0

7. Vacuum/Release Unit VQD1000-V

SMC - Vacuum/Release Unit VQD1000-V
SMC - Vacuum/Release Unit VQD1000-V

Features | Vacuum/Release Unit VQD1000-V

  • Applicable to 0603 chips
  • Response speed: 13 msec (at the time of 500 mm*) /18.5 msec (at the time of 1000 mm*)
    • * Distance from the unit to the work area
  • Smooth workpiece removal with no overshoot
  • There is no need for timing adjustment of switchback between vacuum and positive pressure.
  • A throttle circuit is not required for release air.
  • Suction filter: ZFC050 (Made to order)
ดาวน์โหลดไฟล์ PDF

8) 3-Port Solenoid Valve/Direct Operated Poppet Type VK300

SMC - 3-Port Solenoid Valve/Direct Operated Poppet Type VK300
SMC - 3-Port Solenoid Valve/Direct Operated Poppet Type VK300

Features | 3-Port Solenoid Valve/Direct Operated Poppet Type VK300

  • Universal porting
  • Can be combined on the VK3000 manifold
  • Can be used for vacuum applications
  • Manifold type no.: VV3K3
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Solenoid Valve/Direct Operated Poppet Type VK300

SeriesFlow rate characteristics
2→3(A→R)
C[dm3/(s・bar)]		Flow rate characteristics
2→3(A→R)
b		Flow rate characteristics
2→3(A→R)
Cv		Power consumption
(W)		For use in vacuum
applications
VK300 0.80 0.27 0.19 4 - 101.2 kPa

9) 5-Port Solenoid Valve/Direct Operated Poppet Type VK3000

SMC - 5-Port Solenoid Valve/Direct Operated Poppet Type VK3000
SMC - 5-Port Solenoid Valve/Direct Operated Poppet Type VK3000

Features | 5-Port Solenoid Valve/Direct Operated Poppet Type VK3000

  • Low power consumption (2 W DC, Low wattage type)
  • Can be used with a pressure of 0 MPa or more
  • The combined mounting of the VK300 is possible.
  • Manifold type no.: VV3K3
ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Solenoid Valve/Direct Operated Poppet Type VK3000

SeriesFlow rate characteristics
4/2→5/3(A/B→R1/R2)
C[dm3/(s・bar)]		Flow rate characteristics
4/2→5/3(A/B→R1/R2)
b		Flow rate characteristics
4/2→5/3(A/B→R1/R2)
Cv		Power consumption
(W)
VK3000 0.54 0.12 0.12 4.0

10) 3-Port Solenoid Valve/Direct Operated Poppet Type VT307

SMC - 3-Port Solenoid Valve/Direct Operated Poppet Type VT307
SMC - 3-Port Solenoid Valve/Direct Operated Poppet Type VT307

Features | 3-Port Solenoid Valve/Direct Operated Poppet Type VT307

  • Energy-saving type: 1.8 W
  • A single valve with various valve functions (Universal porting type)
  • Low concentration ozone resistant Rubber seal material: HNBR for main valve
  • Mounting dimensions are interchangeable with the existing product.
  • Manifold type no.: VV307
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Solenoid Valve/Direct Operated Poppet Type VT307

SeriesFlow rate characteristics
2→3 (A→R)
C[dm3/(s・bar)]		Flow rate characteristics
2→3 (A→R)
b		Flow rate characteristics
2→3 (A→R)
Cv		Power
consumption
(W)		For use
in vacuum
applications
VT307 0.71 0.25 0.17 4 (Standard)
1.8 (Energy-saving type)		 - 101.2 kPa

11) 3-Port Solenoid Valve/Direct Operated Poppet Type VT317/325

SMC - 3-Port Solenoid Valve/Direct Operated Poppet Type VT317/325
SMC - 3-Port Solenoid Valve/Direct Operated Poppet Type VT317/325

Features | 3-Port Solenoid Valve/Direct Operated Poppet Type VT317/325

  • Direct operated solenoid valve
  • Universal porting
  • Can be used for vacuum applications
  • Manifold type no.: VV317, VVT340, VVT341
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Solenoid Valve/Direct Operated Poppet Type VT317/325

SeriesFlow rate characteristics
2→3(A→R)
C[dm3/(s・bar)]		Flow rate characteristics
2→3(A→R)
b		Flow rate characteristics
2→3(A→R)
Cv		Power
consumption
(W)		For use in vacuum
applications
VT317 2.6 0.34 0.67 6.0 - 101.2 kPa
VT325 6.1 0.37 1.6 12 - 101.2 kPa

12) 5-Port Direct Operated Solenoid Valve VS4□10

SMC - 5-Port Direct Operated Solenoid Valve VS4□10
SMC - 5-Port Direct Operated Solenoid Valve VS4□10

Features | 5-Port Direct Operated Solenoid Valve VS4□10

  • Direct operated solenoid valve
  • Can be used with a pressure of 0 MPa or more
  • Metal seal main valve construction
  • Manifold type no.: VVS410, VVS411
ดาวน์โหลดไฟล์ PDF

Specifications | 5-Port Direct Operated Solenoid Valve VS4□10

SeriesFlow rate characteristics
A/B→EA/EB
C[dm3/(s・bar)]		Flow rate characteristics
A/B→EA/EB
b		Flow rate characteristics
A/B→EA/EB
Cv		Applicable
cylinder size		Power
consumption
(W)
VS4□10 3.9 0.35 1.0 φ80 5.5

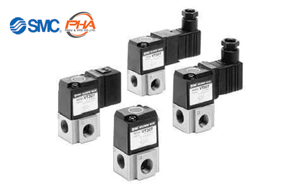

13) 3-Port Direct Operated Solenoid Valve VS3115/3110/3135/3145

SMC - 3-Port Direct Operated Solenoid Valve VS3115/3110/3135/3145
SMC - 3-Port Direct Operated Solenoid Valve VS3115/3110/3135/3145

Features | 3-Port Direct Operated Solenoid Valve VS3115/3110/3135/3145

  • Direct operated solenoid valve
  • Metal seal main valve construction
  • Can be used with a pressure of 0 MPa or more
  • Multiple pressure supply is possible.
  • Manifold type no.: VVS310, VVS311
ดาวน์โหลดไฟล์ PDF

Specifications | 3-Port Direct Operated Solenoid Valve VS3115/3110/3135/3145

SeriesFlow rate characteristics
A→E
C[dm3/(s・bar)]		Flow rate characteristics
A→E
b		Flow rate characteristics
A→E
Cv		Power
consumption
(W)
VS3115 3.6 0.34 0.88 5.5
VS3110 3.6 0.18 0.82 5.5
VS3135 9.0 0.3 2.4 13.2
VS3145 15 0.46 4.5 24.0
