SMC - Finger Valve / Hand Valves / Residual Relief 3 Port Valve

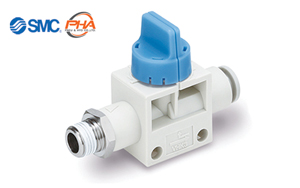

Features | Finger Valve VHK□A

• The valve direction clearly indicates whether the valve is open or closed.
• With a function to prevent the nob from coming out
• Large effective area: 2.0 to 17.5 mm²
• Reduced operating force
• Poppet valve construction seldom suffers seal defection.

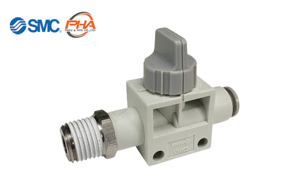

Features | Finger Valve VHK

• The valve direction clearly indicates whether the valve is open or closed.
• Small knob operating force (0.04 to 0.14 N·m)
• Flame resistant type (VHK□R)
• * The Finger Valve VHK has been New type remodeled. Please select the VHK-A series

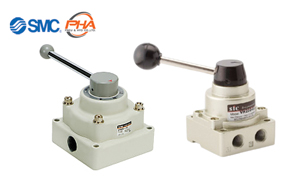

Features | Hand Valve VH 200 / 300 / 400 / 600

The direction of air flow can be confirmed at a glance by the orientation of the handle.

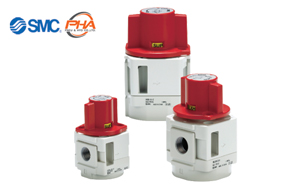

Features | OSHA Standard Compliant Pressure Relief 3-Port Valve with Locking Holes VHS□-D/VHS□W-D

• Improved flow rate characteristics: Max. 88% increase (VHS40-04-D)
• Energy saving: Zero blow-by of the air during switching of the handle
• OSHA (Occupational Safety and Health Administration) standard compliant
• Safety measure: Can prevent accidents caused by inadvertent air supply problems With the indicator window, Double action
• Lower pressure drop contributing to energy saving Pressure drop: reduced by up to 73%

Features | Conforming to OSHA Standard: Pressure Relief 3 Port Valve with Locking Holes VHS

• Compliant with OSHA Standards (Occupational Safety and Health Administration Department of Labor)
• This manually operated valve can be used to prevent accidents caused by residual pressure in pneumatic lines.
• The supply and exhaust status of air flow can be confirmed at a glance.
• When in the exhaust position, the valve may be padlock secured. This can prevent accidental start-ups while personnel are cleaning or servicing equipment.
• Push the knob and then turn. This 2-step action can prevent malfunctions.

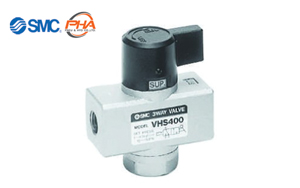

Features | Residual Relief 3-Port Valve VHS 400 / 500

• Easy to operate
• The direction of air flow can be confirmed at a glance by the orientation of the knob.
