มีทั้งหมด 6 รุ่น คือ

---

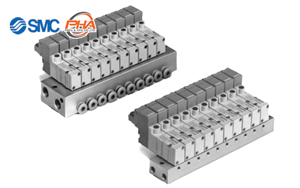

1) 3-Port Solenoid Valve SYJ300/500/700

Specifications | 3-Port Solenoid Valve SYJ300/500/700

Series	Flow rate characteristics 2→3(A→R) C[dm3/(s・bar)]	Flow rate characteristics 2→3(A→R) b	Flow rate characteristics 2→3(A→R) Cv	Power consumption (W)	For use in vacuum applications
SYJ300	0.36	0.31	0.089	0.35 (Standard) 0.1 (With power saving circuit)	- 100 kPa
SYJ500	1.2	0.48	0.34	0.35 (Standard) 0.1 (With power saving circuit)	- 100 kPa
SYJ700	2.7	0.34	0.69	0.35 (Standard) 0.1 (With power saving circuit)	- 100 kPa

---

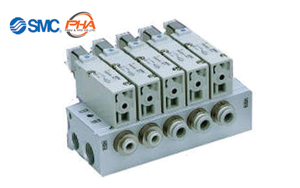

2) 3-Port Solenoid Valve VQZ100/200/300

Specifications | 3-Port Solenoid Valve VQZ100/200/300

Series	Flow rate characteristics 2→3(A→R) C[dm3/(s・bar)]	Flow rate characteristics 2→3(A→R) b	Flow rate characteristics 2→3(A→R) Cv	Power consumption (W)	For use in vacuum applications
VQZ100	0.56	0.30	0.14	0.35 (Standard) 0.9 (High pressure type, High speed response type)	- 100 kPa
VQZ200	1.7	0.36	0.45	0.35 (Standard) 0.9 (High pressure type, High speed response type)	- 100 kPa
VQZ300	3.0	0.33	0.72	0.35 (Standard) 0.9 (High pressure type, High speed response type)	- 100 kPa

---

3) 3-Port Solenoid Valve/Pilot Operated Poppet Type VP300/500/700

Specifications | 3-Port Solenoid Valve/Pilot Operated Poppet Type VP300/500/700

Series	Flow rate characteristics 2→3(A→P) C[dm3/(s・bar)]	Flow rate characteristics 2→3(A→P) b	Flow rate characteristics 2→3(A→P) Cv	Power consumption (W)	For use in vacuum applications
VP300	4.2	0.23	1.0	1.55 (Standard) 0.55 (With power saving circuit) 0.4 (Low wattage specification)	- 100 kPa
VP500	8.9	0.20	2.1	1.55 (Standard) 0.55 (With power saving circuit) 0.4 (Low wattage specification)	- 100 kPa
VP700	15.3	0.22	3.7	1.55 (Standard) 0.55 (With power saving circuit)	- 100 kPa

---

4) 3-Port Solenoid Valve/Pilot Operated Poppet Type VG342

Specifications | 3-Port Solenoid Valve/Pilot Operated Poppet Type VG342

Series	Flow rate characteristics 2→3(A→P) C[dm3/(s・bar)]	Flow rate characteristics 2→3(A→P) b	Flow rate characteristics 2→3(A→P) Cv	Power consumption (W)	For use in vacuum applications
VG342	38	0.32	9.8	4 (Standard) 1.8 (Energy-saving type) 1.8 (Continuous duty type)	- 101.2 kPa

---

5) Large Size 3-Port Solenoid Valve VP3145/3165/3185

Specifications | Large Size 3-Port Solenoid Valve VP3145/3165/3185

Series	Flow rate characteristics 2→3(OUT→EXH) C[dm3/(s・bar)]	Flow rate characteristics 2→3(OUT→EXH) b	Flow rate characteristics 2→3(OUT→EXH) Cv	Power consumption (W)	For use in vacuum applications
VP3145	26	0.35	7.0	12	-101.2 kPa
VP3165	Effective area：330 mm2	Effective area：330 mm2	Effective area：330 mm2	12	- 101.2 kPa
VP3185	Effective area：670 mm2	Effective area：670 mm2	Effective area：670 mm2	12	- 101.2 kPa

---

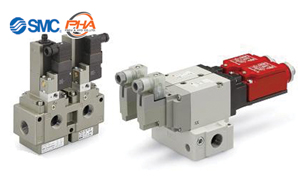

6) ISO 13849-1 Certified/3-Port Solenoid Valve/Residual Pressure Release Valve with Detection of Main Valve Position VP/VG

Specifications | ISO 13849-1 Certified/3-Port Solenoid Valve/Residual Pressure Release Valve with Detection of Main Valve Position VP/VG

Series	Category	Flow rate characteristics 2→3(A→R) C[dm3/(s・bar)]	Flow rate characteristics 2→3(A→R) b	Flow rate characteristics 2→3(A→R) Cv
Residual pressure release valve VP542-X536 Body ported	2	8.9	0.20	2.1
Residual pressure release valve VP544-X536 Base mounted	2	8.8	0.13	2.0
Residual pressure release valve VP742-X536 Body ported	2	15.3	0.22	3.7
Residual pressure release valve VP744-X536 Base mounted	2	15.0	0.17	3.4
Dual residual pressure release valve VP544-X538	3,4	6.7	0.10	1.3
Dual residual pressure release valve VP744-X538	3,4	9.7	0.08	2.1
Dual residual pressure release valve with soft start-up function VP544-X555	3,4	6.7	0.10	1.3
Dual residual pressure release valve with soft start-up function VP744-X555	3,4	9.7	0.08	2.1
Dual residual pressure release valve VG342-X87	3,4	28.6	0.03	5.6
