Stage Gantry Structure Customization - GLF

ดาวน์โหลดไฟล์ PDF

Feature | Stage Gantry Structure Customization - GLF

• Use dust-proof design.
• Granite base, Steel beams.
• Modular Z-axis with a high-precision torque motor.
• Can be equipped with ironless or ironcore motor.

---

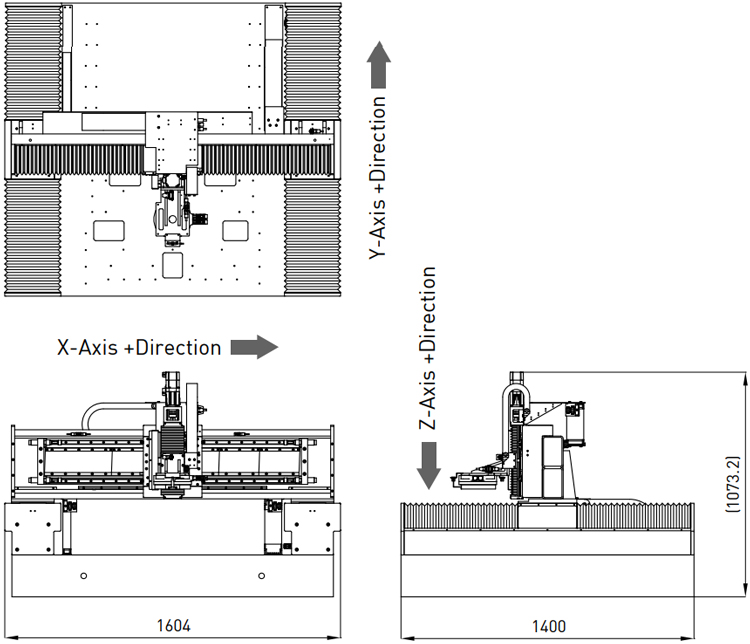

Dimensions | Stage Gantry Structure Customization - GLF

---

Specifications | Stage Gantry Structure Customization - GLF

Stage type	LMG3C-S47LS37L-750-550+KK8610P-340A1-F0BS2M+TMN71EH
Motor Type	Ironcore(/Ironless) motor & HIWIN AC Servo motor
Stroke(mm)	X-axis : 750, Y-axis : 550, Z-axis : 170
Peak Force(N) / Continuous Force(N)	X-axis : 1953/733, Y-axis : 1425/535, Z-axis : HIWIN 400W
Repeatability(µm)	X-axis : ±1, Y-axis : ±1, Z-axis : ±2(with HIWIN solution)
Accuracy(µm)	±3(after error mapping)
Max. Acceleration(m/s2)	X-axis : 20, Y-axis: 4, Z-axis : 2.5(with payload)
Max. Velocity(m/s)	X-axis : 1, Y-axis: 1, Z-axis : 0.5(with payload)
Payload(kg)	5
Stage orientetion	Horizontal
Torque Motor Type	TMN71EH
Peak Torque(Nm)/Continuous Torque(Nm)	11.1/3.7
Max. Velocity(rpm)	600(220V)
Repeatability(arc-sec)	±2.5
Accuracy(arc-sec)	±10
Inertia of rotation parts(kgm2)	0.008

Note : All specifications can be designed according to customer demand.
