Stage Gantry Structure Customization - GLD

ดาวน์โหลดไฟล์ PDF

Feature | Stage Gantry Structure Customization - GLD

• High stiffness cast iron base.
• With excellent vibration suppression capability.
• Suitable for high acceleration and deceleration applications.
• With excellent positioning accuracy.
• Unilateral or bilateral drive structure are seletable according to the precision requirement.

---

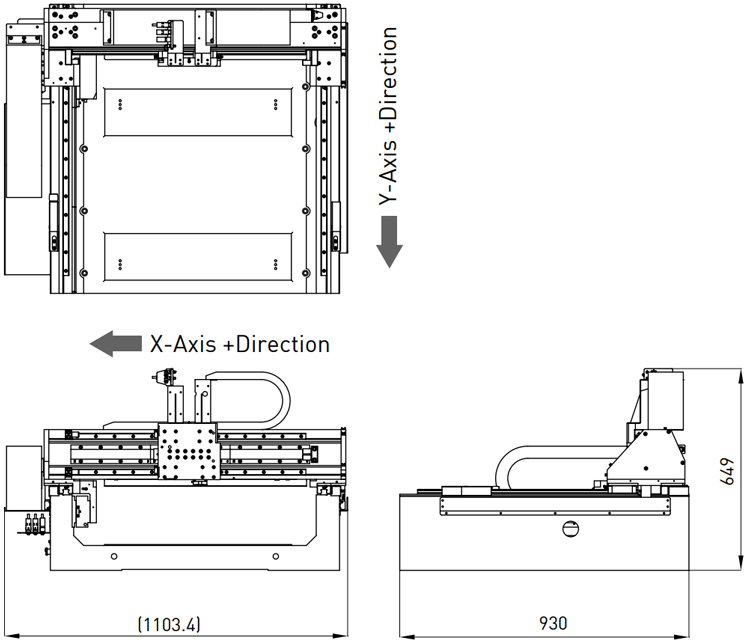

Dimensions | Stage Gantry Structure Customization - GLD

---

Specifications | Stage Gantry Structure Customization - GLD

Stage type	LMG2C-S13S37L-515-540
Motor Type	Ironcore(/Ironless) motor
Stroke(mm)	X-axis :515, Y-axis :540
Peak Force(N) / Continuous Force(N)	X-axis : 540/203, Y-axis : 1425/535
Repeatability(µm)	±1(uni-direction, with HIWIN solution)
Accuracy(µm)	±2(after error mapping)
Max. Acceleration(m/s2)	X-axis : 15, Y-axis: 10(with payload)
Max. Velocity(m/s)	X-axis : 1.5, Y-axis: 1.5(with payload)
Vertical Straightnees(µm)	10
Horizontal Straightnees(µm)	10
Pitch(arc-sec)	25
Yaw(arc-sec)	X-axis : 20, Y-axis : 15
Orthogonality(arc-sec)	±5
Payload(kg)	12
Stage orientation	Horizontal

Note : All specifications can be designed according to customer demand.
