Feature | Stage Gantry Structure Customization - GLA

• Micro gantry structure.
• Space saving.
• Lightweight beam design.
• High dynamic response.
• Can be equipped with ironless or ironcore motor.

---

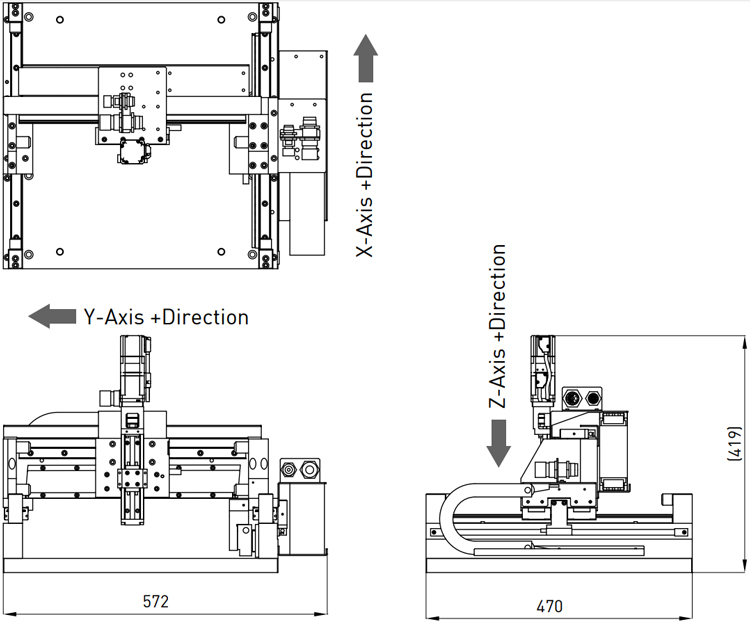

Dimensions | Stage Gantry Structure Customization - GLA

---

Specifications | Stage Gantry Structure Customization - GLA

Stage type	LMG2C-S11S11-200-200+KK4005C150A1-F2M
Motor Type	Ironcore(/Ironless) motor & HIWIN AC Servo motor
Stroke(mm)	X-axis :200, Y-axis : 200, Z-axis : 50
Peak Force(N) / Continuous Force(N)	X-axis : 254/92, Y-axis : 254/92, Z-axis : HIWIN 50W(220V)
Repeatability(µm)	X-axis : ±2, Y-axis : ±3, Z-axis : ±2(uni-direction, with HIWIN solution)
Accuracy(µm)	X-axis : ±5, Y-axis : ±10, Z-axis : ±10 (uni-direction, after error mapping)
Max. Acceleration(m/s2)	X-axis : 5, Y-axis : 5, Z-axis : 5(with payload)
Max. Velocity(m/s)	X-axis : 1, Y-axis : 0.5, Z-axis : 0.04(with payload)
Payload(kg)	1
Stage orientation	Horizontal

Note : All specifications can be designed according to customer demand.
