Feature | Stage Gantry Structure Customization - ALC

• Using non-contact air bearing.
• Without main tenance.
• High positioning accuracy.
• High load capacity of up to 680 kg.
• Certical straightness up to ±3 µm.
• Equipped with ironless motor.

---

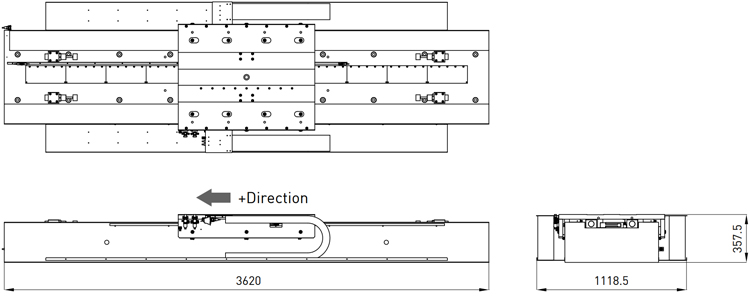

Dimensions | Stage Gantry Structure Customization - ALC

---

Specifications | Stage Gantry Structure Customization - ALC

Stage type	LMAP-CFC-1-2350
Motor Type	Ironless motor
Stroke(mm)	2320
Peak Force(N) / Continuous Force(N)	2736/684
Repeatability(µm)	±0.5(with HIWIN solution)
Accuracy(µm)	±2(after error mapping)
Max. Acceleration(m/s2)	2(with payload)
Max. Velocity(m/s)	0.7(with payload)
Vertical Straightness(µm)	±4
Horizontal Straightness(µm)	±3
Payload(kg)	680
Stage orientation	Horizontal

Note : All specifications can be designed according to customer demand.
