SMC - Tubing
Tubing
มีทั้งหมด 13 รุ่น คือ

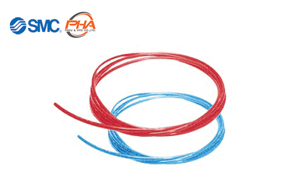

1) Nylon Tubing T
Features | Nylon Tubing T
- General pneumatic tubing
- Max. operating pressure: 3.0 MPa (T0604, at 20℃)
- *1 Refer to the catalog for more information on using the product.
Specifications | Nylon Tubing T
| Series | Tubing O.D. Metric size | Tubing O.D. Inch size | Color | Fluid |
|---|---|---|---|---|
| T/TIA | φ4, φ6, φ8, φ10, φ12, φ16 | φ1/8", φ3/16", φ1/4", φ3/8", φ1/2" | Black, White, Red, Blue, Yellow, Green | Air, Water Turbine oil class 1 (ISO VG32)*1 |

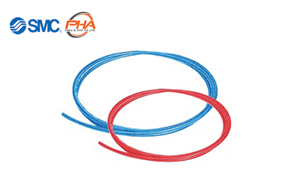

2) Soft Nylon Tubing TS
Features | Soft Nylon Tubing TS
- Max. operating pressure: 1.7 MPa (TS0604, at 20℃)
- *1 Refer to the catalog for more information on using the product.
Specifications | Soft Nylon Tubing TS
| Series | Tubing O.D. Metric size | Tubing O.D. Inch size | Color | Fluid |
|---|---|---|---|---|
| TS/TISA | φ4, φ6, φ8, φ10, φ12, φ16 | φ1/8", φ3/16", φ1/4", φ3/8", φ1/2" | Black, White, Red, Blue, Yellow, Green | Air, Water Turbine oil class 1 (ISO VG32)*1 |

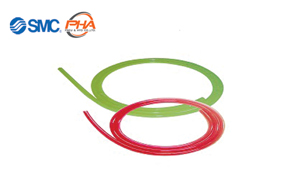

3) Polyurethane Tubing TU
Specifications | Polyurethane Tubing TU
| Series | Tubing O.D. Metric size | Tubing O.D. Inch size | Color | Fluid |
|---|---|---|---|---|
| TU/TIUB | φ2, φ4, φ6, φ8, φ10, φ12, φ16 | φ1/8", φ3/16", φ1/4", φ3/8", φ1/2" | Black, White, Red, Blue, Yellow, Green, Clear, Orange, and more (Total 29 colors) | Air, Water |

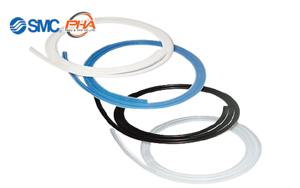

4) Polyurethane Tubing TU-X214
Features | Polyurethane Tubing TU-X214
- In compliance with the FDA’s (U.S. Food and Drug Administration) §177.2600 dissolution test and the (EU) No 10/2011 dissolution test
- Color variations: Black, White, Red, Blue, Yellow, Green, Clear, and Orange
- Size variations (O.D./mm): ø4, ø6, ø8, ø10, and ø12
- Length per roll: 20 m
Specifications | Polyurethane Tubing TU-X214
| Series | Tubing O.D. Metric size | Color | Fluid |
|---|---|---|---|
| TU-X214 | φ4, φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green, Clear, Orange | Air, Water |

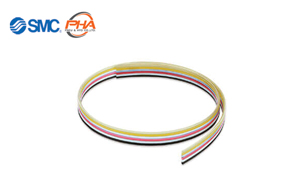

5) Polyurethane Flat Tubing / Multi-core, Multi-color TU
Features | Polyurethane Flat Tubing / Multi-core, Multi-color TU
- Multi-core, multi-color specification
- Compact piping is possible.
- 8 color variations
Specifications | Polyurethane Flat Tubing / Multi-core, Multi-color TU
| Series | Tubing O.D. | Color | Number of cores | Fluid |
|---|---|---|---|---|
| TU | φ2, φ4, φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green, Clear, Orange | 2, 3, 4, 5, 6 | Air |

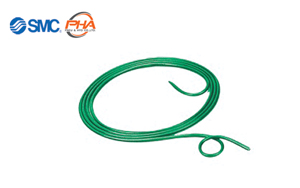

6) Soft Polyurethane Tubing TUS
Specifications | Soft Polyurethane Tubing TUS
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TUS | φ4, φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green, Translucent, Yellow-brown | Air |

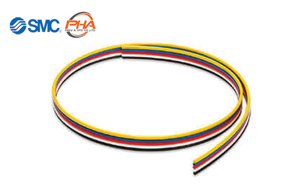

7) Soft Polyurethane Flat Tubing / Multi-core, Multi-color TUS
Features | Soft Polyurethane Flat Tubing / Multi-core, Multi-color TUS
- Multi-core, multi-color specification
- Compact piping is possible.
- 8 color variations
Specifications | Soft Polyurethane Flat Tubing / Multi-core, Multi-color TUS
| Series | Tubing O.D. | Color | Number of cores | Fluid |
|---|---|---|---|---|
| TUS | φ4, φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green, Translucent, Yellow-brown | 2, 3, 4, 5 | Air |

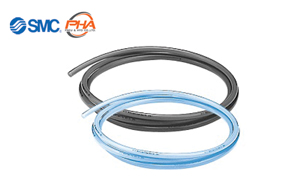

8) Hard Polyurethane Tubing TUH
Features | Hard Polyurethane Tubing TUH
Superior restoring force compared to the nylon tubing
ดาวน์โหลดไฟล์ PDFSpecifications | Hard Polyurethane Tubing TUH
| Series | Type | Max. operating pressure | Tubing O.D. | Color | Fluid |
|---|---|---|---|---|---|
| TUH | Standard type | 0.8 MPa (at 20°C) | φ4, φ6, φ8, φ10, φ12 | Black, White, Blue, Translucent | Air |
| TUH | High-pressure type | 1.0 MPa (at 20°C) | φ4, φ6, φ8, φ10, φ12 | Black, White, Blue, Translucent | Air |

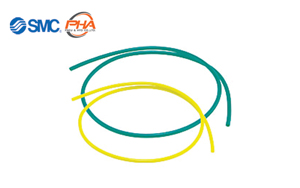

9) Wear Resistant Tubing TUZ
Features | Wear Resistant Tubing TUZ
Abrasion: Approx. 1/3 (Compared with SMC's TU series polyurethane tubing)
ดาวน์โหลดไฟล์ PDFSpecifications | Wear Resistant Tubing TUZ
| Series | Tubing O.D. Metric size | Color | Fluid |
|---|---|---|---|
| TUZ | φ4, φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green | Air |

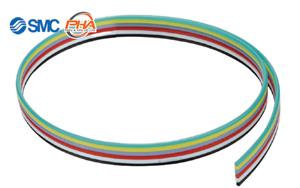

10) Wear Resistant Flat Tubing / Multi-core, Multi-color TUZ
Features | Wear Resistant Flat Tubing / Multi-core, Multi-color TUZ
- Multi-core, multi-color specification
- Compact piping is possible.
- 6 color variations
- Abrasion: Approx. 1/3
Specifications | Wear Resistant Flat Tubing / Multi-core, Multi-color TUZ
| Series | Tubing O.D. | Color | Number of cores | Fluid |
|---|---|---|---|---|
| TUZ | φ4, φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green | 2, 3, 4, 5, 6 | Air |

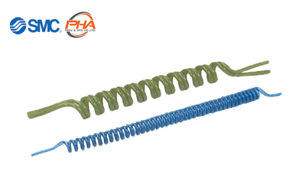

11) Polyurethane Coil Tubing TCU
Features | Polyurethane Coil Tubing TCU
- Flexible
- Max. operating pressure: 0.8 MPa (at 20℃)
- For moving applications
- * Colors other than black are available as made-to-order specifications.
Specifications | Polyurethane Coil Tubing TCU
| Series | Tubing O.D. | Color | Number of cores | Fluid |
|---|---|---|---|---|
| TCU | φ4, φ6, φ8 | Black | 1, 2, 3 | Air |

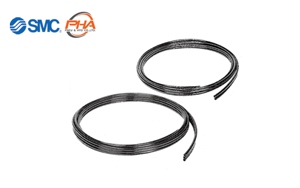

12) Polyurethane Flat Tubing TFU
Features | Polyurethane Flat Tubing TFU
- Max. operating pressure: 0.8 MPa (at 20℃)
- Compact piping
Specifications | Polyurethane Flat Tubing TFU
| Series | Tubing O.D. | Color | Number of cores | Fluid |
|---|---|---|---|---|
| TFU | φ4, φ6, φ8 | Black | 2, 3 | Air |

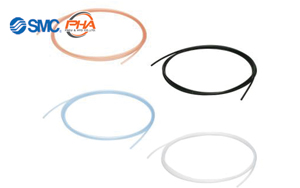

13) Compatible with Food Sanitation Law: Polyurethane Tubing TU-X217
Features | Compatible with Food Sanitation Law: Polyurethane Tubing TU-X217
In compliance with the Food Sanitation Law Testing in compliance with Japan’s Food Sanitation Law based on the 370th notice given by the Ministry of Health and Welfare in 1959
ดาวน์โหลดไฟล์ PDFSpecifications | Compatible with Food Sanitation Law: Polyurethane Tubing TU-X217
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TU-X217 | φ4, φ6, φ8, φ10, φ12 | Black, White, Blue, Clear | Air, Water |
