SMC - Fittings for Special Environments
Fittings for Special Environments
มีทั้งหมด 11 รุ่น คือ

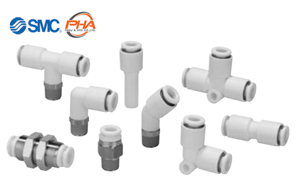

1) FR One-touch Fittings KR-W2
Features | FR One-touch Fittings KR-W2
For use where weld spatter is generated/Flame resistant (Equivalent to UL-94 Standard V-0)
ดาวน์โหลดไฟล์ PDFSpecifications | FR One-touch Fittings KR-W2
| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| KR-W2 | φ6, φ8, φ10, φ12 | 1/8, 1/4, 3/8, 1/2 |

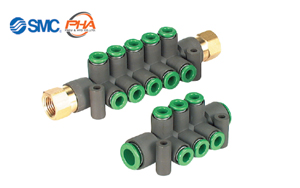

2) FR One-touch Fittings Manifold KRM
Features | FR One-touch Fittings Manifold KRM
For use where weld spatter is generated/Flame resistant (Equivalent to UL-94 Standard V-0)
ดาวน์โหลดไฟล์ PDFSpecifications | FR One-touch Fittings Manifold KRM
| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| KRM | φ6, φ8, φ10, φ12 | 1/4, 3/8 |

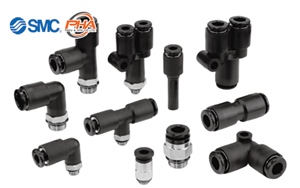

3) Antistatic One-touch Fittings KA
Features | Antistatic One-touch Fittings KA
- Surface resistance: 104Ω to 107Ω
- For preventing static electricity
- Body: Conductive resin used for seal parts
- Copper-free (Electroless nickel-plated)
- Uni-thread
Specifications | Antistatic One-touch Fittings KA
| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| KA | φ3.2, φ4, φ6, φ8, φ10, φ12 | M5 × 0.8, M6 × 1.0, standard UNI thread 1/8, 1/4, 3/8, 1/2 |

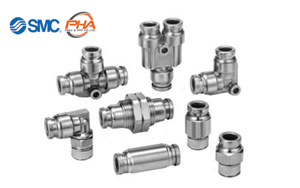

4) Stainless Steel 316 One-touch Fittings KQG2
Features | Stainless Steel 316 One-touch Fittings KQG2
- Compact and lightweight
- Fluid temperature: −5 to 150℃
- Materials: Metal parts stainless steel 316, seal parts special FKM
- Grease-free/Can be used with steam Certified to meet current Food Sanitation Law standards
Specifications | Stainless Steel 316 One-touch Fittings KQG2
| Series | Size | Applicable tubing O.D. | Connection thread |
|---|---|---|---|
| KQG2 | Metric | φ3.2, φ4, φ6, φ8, φ10, φ12, φ16 | M5 R, Rc 1/8, 1/4, 3/8, 1/2 |
| KQG2 | Inch | φ1/8", φ5/32", φ1/4", φ5/16", φ3/8", φ1/2" | UNF10-32 NPT1/8, 1/4, 3/8, 1/2 |
5) Stainless Steel One-touch Fittings KQ2-G
Features | Stainless Steel One-touch Fittings KQ2-G
- Metal material: Stainless steel 303
- Improved tube insertion/removal: Insertion force reduced by up to 30%, Removal force reduced by up to 20%
- Compact and lightweight Dimensions:
- Height 24% Shorter
- Length 23% Length
- Weight 57% lighter
- Body types: Total of 27 models
Specifications | Stainless Steel One-touch Fittings KQ2-G
| Series | Size | Applicable tubing O.D. | Connection thread |
|---|---|---|---|
| KQ2-G | Metric | φ4, φ6, φ8, φ10, φ12, φ16 | M5 R, Rc 1/8, 1/4, 3/8, 1/2 |

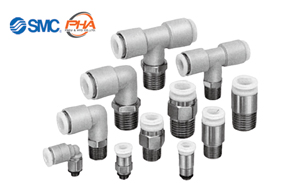

6) Stainless Steel One-touch Fittings KG
Features | Stainless Steel One-touch Fittings KG
- Can be used in corrosive conditions
- Metal parts: Stainless steel 303
Specifications | Stainless Steel One-touch Fittings KG
| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| KG | φ4, φ6, φ8, φ10, φ12, φ16 | M5 x 0.8 1/8, 1/4, 3/8, 1/2 |

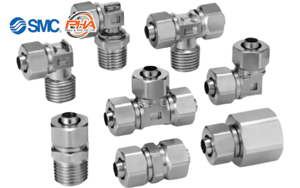

7) Stainless Steel 316 Insert Fittings KFG2
Features | Stainless Steel 316 Insert Fittings KFG2
- Compact and lightweight
- Fluid temperature: -65 to 260℃ (Swivel elbow: -5 to 150℃)
- Material: Stainless steel 316 Rubber materials are not used. (Excluding the swivel elbow)
- Grease-free/Can be used with steam Certified to meet current Food Sanitation Law standards
Specifications | Stainless Steel 316 Insert Fittings KFG2
| Series | Size | Tubing O.D. x I.D. | Connection thread |
|---|---|---|---|
| KFG2 | Metric | φ4 x φ2.5, φ4 x φ3, φ6 x φ4, φ8 x φ6, φ10 x φ7.5, φ10 x φ8, φ12 x φ9, φ12 x φ10, φ16 x φ13 |
R, Rc 1/8, 1/4, 3/8, 1/2 |
| KFG2 | Inch | φ1/8" x φ0.086", φ5/32" x 0.098", φ1/4" x φ5/32", φ5/16" x 0.236", φ3/8" x φ1/4", φ1/2" x φ3/8" |
NPT1/8, 1/4, 3/8, 1/2 |

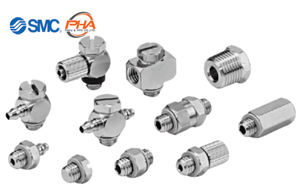

8) Miniature Fittings Stainless Steel 316 MS
Features | Miniature Fittings Stainless Steel 316 MS
- Can be used in corrosive conditions
- Compact piping space
- Hose nipple, Hose elbow, Barb
Specifications | Miniature Fittings Stainless Steel 316 MS
| Series | Tubing O.D. x I.D. | Connection thread |
|---|---|---|
| MS | φ3.2, φ4, φ6 | M5 |

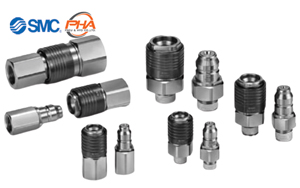

9) S Couplers Stainless Steel Type KKA
Features | S Couplers Stainless Steel Type KKA
- Body material: Stainless steel 304
- Seal material: Fluoropolymer (Special FKM) is employed.
- Grease-free
- Check valve built in to both plug and socket
Specifications | S Couplers Stainless Steel Type KKA
| Series | Connection thread |
|---|---|
| KKA | 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2 |

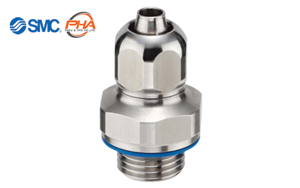

10) EHEDG Compliant / Clean Design / FDA Compliant Fittings KFG2H□-E / KFG2H□-C / KQ□2-F•KFG2-F
Features | EHEDG Compliant / Clean Design / FDA Compliant Fittings KFG2H□-E / KFG2H□-C / KQ□2-F•KFG2-F
- Hygienic design prevents liquid from accumulating after cleaning
- FDA compliant materials
Specifications | EHEDG Compliant / Clean Design / FDA Compliant Fittings KFG2H□-E / KFG2H□-C / KQ□2-F•KFG2-F
| Type | Series | Description | Thread type |
|---|---|---|---|
| EHEDG compliant | KFG2H□-E | Stainless steel 316 insert fittings | M, G |
| Clean design | KFG2H□-C | Stainless steel 316 insert fittings | M, G |
| FDA compliant | KQG2-F | Stainless steel 316 One-touch fittings | M, R, Rc, UNF, NPT G |
| FDA compliant | KQB2-F | Metal One-touch fittings | M, R, Rc, UNF, NPT G |
| FDA compliant | KFG2-F | Stainless steel 316 insert fittings | R, Rc, NPT G |

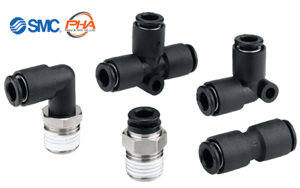

11) One-touch Fitting with Improved Weather Resistance KQ-X1744
Features | One-touch Fitting with Improved Weather Resistance KQ-X1744
- Accelerated weathering test: Passed 1000 hours ISO 4892-3 (JIS K 7350-3) compliant
- Combined cycle test: Passed 960 hours ISO 14993 (JIS H 8502: 1999) compliant
- Ozone-proof exposure test: Passed 1000 hours ISO 1431 (JIS K 6259) compliant
Specifications | One-touch Fitting with Improved Weather Resistance KQ-X1744
| Series | Applicable tubing O.D. | Connection thread |
|---|---|---|
| KQ-X1744 | φ4, φ6, φ8, φ10, φ12 | 1/8, 1/4, 3/8, 1/2 |
