SMC - Tubing (Tubing for Special Environments)
Tubing (Tubing for Special Environments)
มีทั้งหมด 9 รุ่น คือ
1) FR Soft Nylon Tubing TRS
Features | FR Soft Nylon Tubing TRS
- Max. operating pressure: 1.2 MPa (at 20℃)
- For use in spatter-generating atmospheres / Flame resistant (Equivalent to UL-94 Standard V-0)
Specifications | FR Soft Nylon Tubing TRS
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TRS | φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Green | Air, Water |

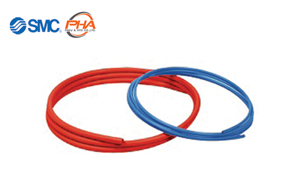

2) FR Double Layer Tubing TRB
Features | FR Double Layer Tubing TRB
- Max. operating pressure: 1.2 MPa (at 20℃)
- For use in spatter-generating atmospheres / Flame resistant (Equivalent to UL-94 Standard V-0)
Specifications | FR Double Layer Tubing TRB
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TRB | φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green | Air, Water |
3) FR Double Layer Polyurethane Tubing TRBU
Features | FR Double Layer Polyurethane Tubing TRBU
- Max. operating pressure: 0.8 MPa (at 20℃)
- For use in spatter-generating atmospheres/Flame resistant (Equivalent to UL-94 Standard V-0)
- Superior restoring force compared to the nylon tubing
Specifications | FR Double Layer Polyurethane Tubing TRBU
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TRBU | φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green | Air, Water |
4) Flame Resistant (Equivalent to UL-94 Standard V-0) FR 2-Layer Soft Polyurethane Tubing TRBU-X259
Features | Flame Resistant (Equivalent to UL-94 Standard V-0) FR 2-Layer Soft Polyurethane Tubing TRBU-X259
- Peeling of the outer layer not required to connect fittings Reduced labor time, Improved workability
- Improved flexibility (Compared with the TRBU)
- Lightweight and compact Weight: 57% reduction, Cross sectional area: 37% reduction (Compared with the TRBU0805)
- Suitable for air and water piping in environments where spot welding spatter may be a problem
- Increased flow rate due to I.D. expansion: Max. 69% improvement (Comparison between the TRBU1208 and the TRBU1210-X259)
Specifications | Flame Resistant (Equivalent to UL-94 Standard V-0) FR 2-Layer Soft Polyurethane Tubing TRBU-X259
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TRBU-X259 | φ3.2, φ4, φ6, φ8, φ10, φ12 (Some products are available as a special order. Please refer to the catalog for details.) |
Black, White, Red, Blue, Yellow, Green (Some products are available as a special order. Please refer to the catalog for details.) |
Air, Water |
5) Double Layer Tube Stripper TKS
Features | Double Layer Tube Stripper TKS
Easily strips the outer layer from double layer tubes
ดาวน์โหลดไฟล์ PDFSpecifications | Double Layer Tube Stripper TKS
| Series | Tubing O.D. | Color |
|---|---|---|
| TKS | φ6, φ8, φ10, φ12 | Orange, Yellow, Blue, Green |
6) FR Three-layer Polyurethane Tubing TRTU
Features | FR Three-layer Polyurethane Tubing TRTU
- Spatter resistance has been improved by installing an aluminum layer between the outer layer and the inner tube. (It is twice that of the TRBU series FR double layer polyurethane tubing.)
- For general pneumatic and water piping in environments exposed to sparks from arc welding, etc.
- Flame resistant (Equivalent to UL-94 Standard V-0)
Specifications | FR Three-layer Polyurethane Tubing TRTU
| Series | Tubing O.D. | Color | Fluid |
|---|---|---|---|
| TRTU | φ6, φ8, φ10, φ12 | Black, White, Red, Blue, Yellow, Green | Air, Water |
7) 2-Layer Soft Fluoropolymer Tubing TQ
Features | 2-Layer Soft Fluoropolymer Tubing TQ
- Carry fluids, such as solvent, with this soft and abrasion-resistant tube
- 2-layer structure Outer layer: Special nylon resin, Inner layer: Special fluoropolymer
- Internal smoothness: Equivalent to Ra 0.02 μm
Specifications | 2-Layer Soft Fluoropolymer Tubing TQ
| Series | Tubing O.D. Metric size | Color | Fluid |
|---|---|---|---|
| TQ | φ4, φ6, φ8, φ10, φ12 | Translucent (Material color) | Air, Water, Inert gas, Solvent |
8) Antistatic Soft Nylon Tubing TAS
Features | Antistatic Soft Nylon Tubing TAS
- Max. operating pressure: 1.2 MPa (at 20℃)
- For preventing static electricity
Specifications | Antistatic Soft Nylon Tubing TAS
| Series | Tubing O.D. Metric size | Color | Fluid |
|---|---|---|---|
| TAS | φ3.2, φ4, φ6, φ8, φ10, φ12 | Black | Air |
9) Antistatic Soft Nylon Tubing TAU
Features | Antistatic Soft Nylon Tubing TAS
- Max. operating pressure: 0.9 MPa (at 20℃)
- For preventing static electricity
Specifications | Antistatic Soft Nylon Tubing TAU
| Series | Tubing O.D. Metric size | Color | Fluid |
|---|---|---|---|
| TAU | φ3.2, φ4, φ6, φ8, φ10, φ12 | Black | Air |
