SMC - Tubing (Fluoropolymer / Clean)

Features | Fluoropolymer Tubing TL/TIL

• Max. operating pressure: 1.0 MPa (at 20℃)
• Operating temperature (fixed usage): −65 to 260℃

Features | Fluoropolymer Tubing (PFA) TLM / TILM

• Operating temperature (fixed usage): Air, Inert gas: −65 to 260℃ Water: 0 to 100℃ (No freezing)
• Food Sanitation Law compliant
• Complies with the FDA (Food and Drug Administration) § 177.1550 dissolution test

Features | FEP Tubing (Fluoropolymer) TH / TIH

• Max. operating pressure: 2.3 MPa (at 20℃) *
• Food Sanitation Law compliant
• Complies with the FDA (Food and Drug Administration) § 177.1550 dissolution test
• Operating temperature (fixed usage): Air, Inert gas: -65 to 200℃ Water: 0 to 100℃ (No freezing)
• * This may vary according to size

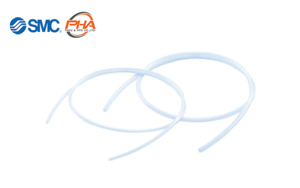

Features | Soft Fluoropolymer Tubing TD / TID

• Max. operating pressure: 1.6 MPa (at 20℃)*
• Food Sanitation Law compliant
• Complies with the FDA (Food and Drug Administration) § 177.1550 dissolution test
• Operating temperature (fixed usage): Air, Inert gas: −65 to 260℃ Water: 0 to 100℃ (No freezing)
• *This may vary according to size.

Features | Polyurethane Tubing 10-TU

• Flexible tubing 0.8 MPa max. (at 20℃)
• * Only black and blue are available for the inch size.

Features | Polyurethane Coil Tubing 10-TCU

• Flexible for moving applications

Features | Polyurethane Flat Tubing 10-TFU

• Flexible multi-core tubing

Features | Polyolefin Tubing TPH

Max. operating pressure (at 20℃): 1.0 MPa (ø4, ø6), 0.7 MPa (ø8, ø10, ø12)

Features | Soft Polyolefin Tubing TPS

Max. operating pressure (at 20℃): 0.7 MPa (ø4 to ø12)

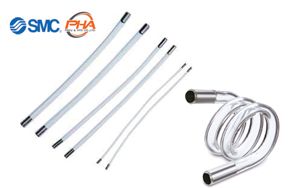

Features | Moisture Control Tube IDK

• Prevents condensation in piping for small cylinders/air grippers
• Diffuses water vapor in the piping to the outside
• All you have to do is install the moisture control tube. Additional power supplies and works are not necessary.
