Stage Multi-axes Customization - RLB

ดาวน์โหลดไฟล์ PDF

Feature | Stage Multi-axes Customization - RLB

• Z-axis counterweight design.
• Excellent low speed velocity stability ±1% @10 mm/s.
• Fully enclosed waterproof design.
• High positioning accuracy up to ± 1 μm.
• Can be equipped with ironless or ironcore motor.

---

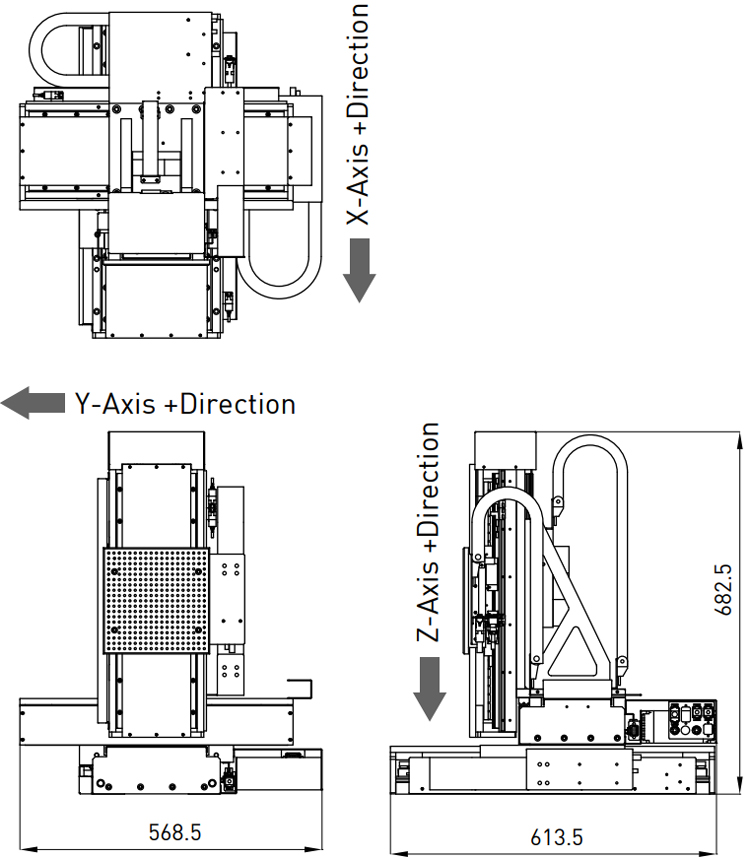

Dimensions | Stage Multi-axes Customization - RLB

---

Specifications | Stage Multi-axes Customization - RLB

Stage type	LMX3C-CB5CB5CB8-200-200-200
Motor Type	Ironless(/Ironless) motor
Stroke(mm)	X-axis :200, Y-axis : 200, Z-axis : 200
Peak Force(N) / Continuous Force(N)	X-axis : 580/145, Y-axis : 364/91, Z-axis : 364/91
Repeatability(µm)	±0.5(with HIWIN solution)
Accuracy(µm)	±1(after error mapping)
Max. Acceleration(m/s2)	X-axis : 0.5, Y-axis : 0.5, Z-axis : 0.5(with payload)
Max. Velocity(m/s)	X-axis : 0.2, Y-axis : 0.2, Z-axis : 0.05(with payload)
Payload(kg)	5
Stage orientation	Horizontal

Note : All specifications can be designed according to customer demand.
