Stage Multi-axes Customization - RBC
ดาวน์โหลดไฟล์ PDFFeature | Stage Multi-axes Customization - RBC

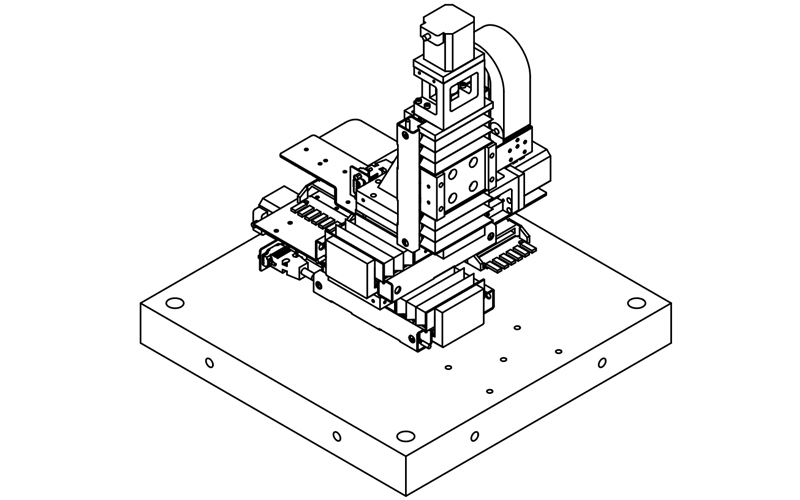

- Z-axis designed with KK series ballscrew driven stage module significantly reduces system cost.
- Use dust-proof design.
- Three-dimensional motion.
- Simple structure design.

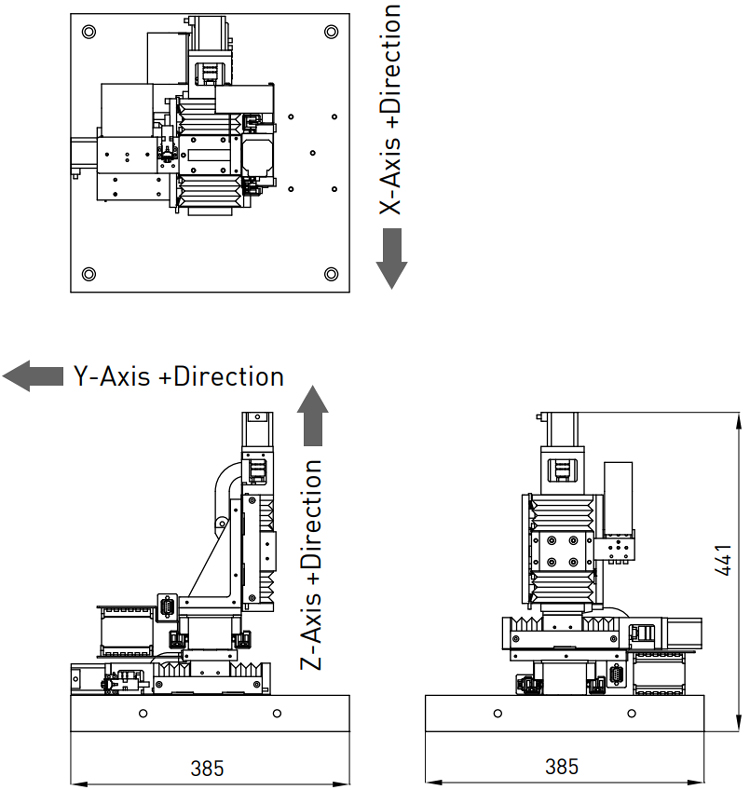

Dimensions | Stage Multi-axes Customization - RBC
Specifications | Stage Multi-axes Customization - RBC
Stage type | KK6010-KK6010-KK6005-150-150-150 |
---|---|
Motor Type | HIWIN AC Servo motor |
Stroke(mm) | X-axis : 55, Y-axis : 55, Z-axis : 55 |
Ball screw lead(mm) | X-axis : 10, Y-axis : 10, Z-axis : 5 |
Repeatability(µm) | ±2(uni-direction, with HIWIN solution) |
Accuracy grade | C |
Max. Acceleration(m/s2) | X-axis : 5, Y-axis : 5, Z-axis : 5(HIWIN 100W, with payload) |
Max. Velocity(m/s) | X-axis : 0.5, Y-axis : 0.5, Z-axis : 0.2(HIWIN 100W, with payload) |
Payload(kg) | 1 |
Stage orientation | Horizontal |
Note : All specifications can be designed according to customer demand.
