Feature | Stage Multi-axes Customization - RLA

• Fully enclosed waterproof design.
• Using non-contact air bearing.
• XY cantilever structure.
• Space saving.
• Lightweight and high-stiffness design.
• Can be equipped with ironless or ironcore motor.

---

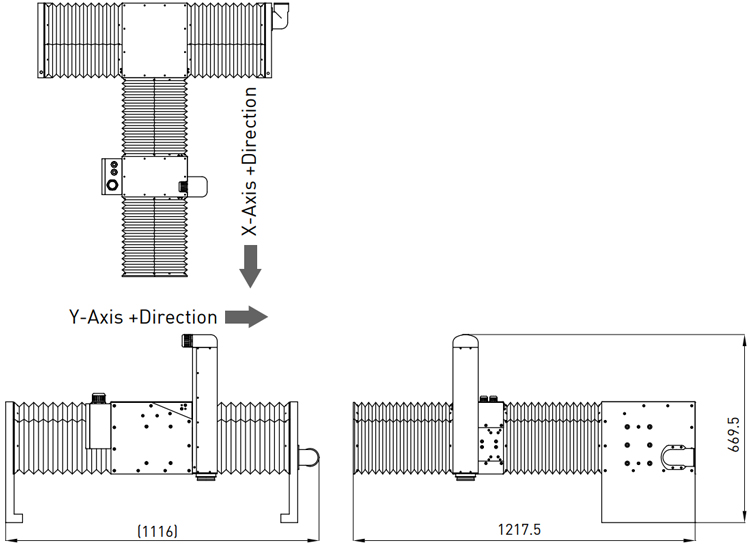

Dimensions | Stage Multi-axes Customization - RLA

---

Specifications | Stage Multi-axes Customization - RLA

Stage type	LMX2C-S13S17-510-510
Motor Type	Ironless(/Ironless) motor
Stroke(mm)	X-axis :510, Y-axis : 510
Peak Force(N) / Continuous Force(N)	X-axis : 540/203, Y-axis : 609/228
Repeatability(µm)	X-axis : ±2, Y-axis : ±2(with HIWIN solution)
Accuracy(µm)	X-axis : ±5, Y-axis : ±5(after error mapping)
Max. Acceleration(m/s2)	X-axis : 10, Y-axis : 5(with payload)
Max. Velocity(m/s)	X-axis : 0.8, Y-axis : 0.5(with payload)
Payload(kg)	10
Stage orientation	Horizontal

Note : All specifications can be designed according to customer demand.
