SMC - Valves for Water and Chemical Base Fluids
Valves for Water and Chemical Base Fluids
มีทั้งหมด 3 รุ่น คือ

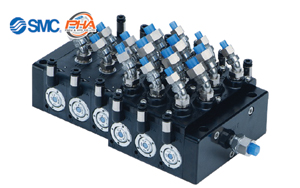

1) Valve for Water and Chemical Base Fluids (2/3-Port Air Operated Valve) VCC
Features | Valve for Water and Chemical Base Fluids (2/3-Port Air Operated Valve) VCC
- Applicable for 2 liquid paints (VCC12D)
PTFE diaphragm structure = Elimination of sliding parts
Less paint adhesion - Mountable on a robot arm (Space saving, Lightweight)
2 valves per station (30 mm pitch)
2/3-port valves mixed mounting
Resin manifold block
Specifications | Valve for Water and Chemical Base Fluids (2/3-Port Air Operated Valve) VCC
| Series | Orifice diameter | Fluid |
|---|---|---|
| VCC | φ3.8 | Water/chemical-based paint, Ink, Cleaning fluid (Water, Butyl acetate), Air |

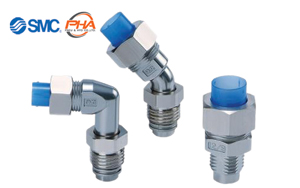

2) SUS316L Stainless Steel Fitting VCK
Features | SUS316L Stainless Steel Fitting VCK
- Since sealing tape is not required, there is no need to worry about insulation. (Applicable for painting with high voltage)
- Easy insertion/removal of piping in narrow spaces
Specifications | SUS316L Stainless Steel Fitting VCK
| Series | Material/Description | Port size |
|---|---|---|
| VCK | Stainless steel fitting (316L SS) |
G1/4 |

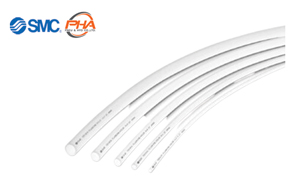

3) 2-Layer Soft Fluoropolymer Tubing TQ
Features | 2-Layer Soft Fluoropolymer Tubing TQ
- Carries fluid such as solvent with a soft and abrasion resistant tube.
- 2-layer structure
- Outer layer: Special nylon resin
- Inner layer: Special fluoropolymer
- Internal smoothness: Equivalent to Ra 0.02 μm
Specifications | 2-Layer Soft Fluoropolymer Tubing TQ
| Series | Tubing O.D. Metric size | Color | Fluid |
|---|---|---|---|
| TQ | φ4, φ6, φ8, φ10, φ12 | Translucent (Material color) | Air, Water, Inert gas, Solvent |
