SMC - 2/3 Port Valves for General Purpose Fluid Control
2/3 Port Valves for General Purpose Fluid Control
มีทั้งหมด 3 รุ่น คือ

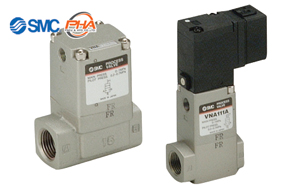

1) Process Valve/2 Port Valve (2 Way Valve) for Compressed Air and Air-hydro Circuit Control VNA
Features | Process Valve/2 Port Valve (2 Way Valve) for Compressed Air and Air-hydro Circuit Control VNA
- Exclusively for pneumatic systems and air-hydro circuit controls
- The balance poppet permits normal and reverse flow.
- Air operated, external pilot solenoid
Specifications | 5.0 MPa Pilot Operated 2/3-Port Solenoid Valve & Check Valve VCH / VCHC
| Series | Valve type | Port size | Orifice diameter (mmø) |
|---|---|---|---|
| VNA | N.C./N.O./C.O. | 1/8 to 2 | 10 to 50 |
2) Process Valve/2 Port Valve (2 Way Valve) for Fluid Control VNB
Features | Process Valve/2 Port Valve (2 Way Valve) for Fluid Control VNB
- For controlling various fluids
- Can operate with a wide range of fluids, such as air, water, oil, gas, vacuum, etc., depending on the selected body and seal materials
- Air operated, external pilot solenoid
Specifications | Process Valve/2 Port Valve (2 Way Valve) for Fluid Control VNB
| Series | Valve type | Port size | Orifice diameter (mmø) |
|---|---|---|---|
| VNB | N.C./N.O./C.O. | 1/8 to 2 1 1/4B to 2B |
7 to 50 |
3) Steam Valve/2 Port Valve (2 Way Valve) for Steam VND
Features | Steam Valve/2 Port Valve (2 Way Valve) for Steam VND
- For steam control
- Adopts PTFE seals
- With indicator light (Option)
- Air operated type
Specifications | Steam Valve/2 Port Valve (2 Way Valve) for Steam VND
| Series | Valve type | Port size | Orifice diameter (mmø) |
|---|---|---|---|
| VND | N.C./N.O. | 1/8 to 2 1 1/4B to 2B |
7 to 50 |
