Features | Direct Operated 2 Port Solenoid Valve (2 Way Valve) VX2

• For air, medium vacuum, water, oil, steam (Can be used with heated water)
• Flow rate: 20% more flow*
• Height: 10% smaller*
• Weight: 30% lighter*
• Body materials: Aluminum, Resin, C37, Stainless steel
• Available with One-touch fittings (Resin body)
• * Comparison made with SMC’s existing model
• Manifold type no.: VVX21, VVX22, VVX23

Features | Direct Operated 2-Port Solenoid Valve (2 Way Valve) JSX/JSX☐

• Improved environmental resistance due ti the stainless steek coil cover (IP67 enclosure)
• Body material: Stanless steel, Brass / Bronze, Aluminium
• Environmental resistance. IP67 Enclosure (IP65 for models with a DIN terminal)
• Space saving
  • Compact: Valve volume reduced by 25% (Compared with existed model)
  • Lightweight: Weight reduced by 30% (Compared with the existing model)
• Energy saving
  • Coil force: 10% increase (Compared with the existing model)
  • Power consumption: 14% reduction (Compared with the existing model)
• 360º lead wire insertion and removal is possible
• Can be connected to modular type F.R.L units (JSXM)

Features | 2 Port Solenoid Valve (2 Way Valve) with Built-in Y-strainer VXK

• For air, water, oil, steam
• Space saving with reduced piping labor
• Built-in strainer

Features | Pilot Operated 2 Port Solenoid Valve (2 Way Valve) VXD

• For air, water, oil, heated water, high-temperature oil
• Body materials: Aluminum, Resin, C37, Stainless steel, CAC408
• A type with One-touch fittings (Resin body) is available.
• IP65

Features | Zero Differential Pressure Type/Pilot Operated 2 Port Solenoid Valve (2 Way Valve) VXZ

• For air, water, oil, heated water, high-temperature oil
• Body materials: Aluminum, Resin, C37, Stainless steel
• A type with One-touch fittings (Resin body) is available.
• IP65

Features | Zero Differential Pressure Type/Pilot Operated 2 Port Solenoid Valve (2 Way Valve) VXS

• For steam
• Long service life: 3 million cycles (Based on SMC’s test conditions)
• Improved air filtration
• Reduced apparent power: 18 VA → 12 VA, 20 VA → 15 VA
• Reduced coil temperature rise: 120°C → 100°C
• IP65

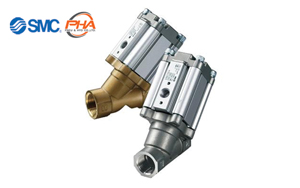

Features | Angle Seat Valve (2 Way Valve)/Air Operated Type VXB

• For steam (Can be used with air and water)
• Low pressure loss due to angle seat structure
• Reduced leakage with rubber seal
• Long service life: 3 million cycles (Steam), 5 million cycles (Air)
• Low leakage: 10 cm³/min or less
• Space saving: Height 100 mm
• Body materials: Stainless steel 316L equivalent, Bronze (CAC

Features | Steam Valve/2 Port Valve (2 Way Valve) for Steam VND

• For steam control
• Adopts PTFE seals
• With indicator light (Option)
• Air operated type

Features | Energy Saving Type 2 Port Solenoid Valve (2 Way Valve) VXE

• Power consumption reduced by 1/3 (SMC comparison)
• For air, water, oil

Features | Pilot Operated 2 Port Solenoid Valve (2 Way Valve) VXP

• For air, gas, steam, water, oil

Features | Water Hammer Relief/Pilot Operated 2 Port Solenoid Valve (2 Way Valve) VXR

For water, oil

Features | Diaphragm Type Pilot Operated 2 Port Solenoid Valve (2 Way Valve) for High Pressure VXH

Maximum operating pressure differential of 2 MPa with orifice diameter ø10.

Features | Pulse Valve (Valve for Dust Collector) JSXFA

• Life: 10 million cycles or more/10 times or more
• High peak pressure and low air consumption
  • Peak pressure: 15% increase
  • Air consumption: 35% reduction
• Fluid temperature: -40 to 60℃
• Easier maintenance
• Immersion type
• No need to weld the tank piping

Features | 2 Port Solenoid Valve (2 Way Valve)/Air Operated Valve for Dust Collector VXF2/VXFA2

• Piping: Flange type, Flange body type, Direct piping type
• Orifice machining on the outlet is not necessary, so the time required for piping can be reduced. (Flange body type)
• Enclosure: IP65*
  * Electrical entry flat terminal type terminal is IP40.
• Applicable for high temperatures: Fluid temperature 100℃
• A flat terminal type has been added.
• The VXFC series is the designated controller.

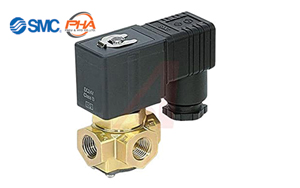

Features | Direct Operated 3 Port Solenoid Valve (3 Way Valve) VX3

• For air, water, oil, steam
• Manifold type no.: VVX31, VVX32, VVX33

Features | Direct Air Operated 2 Port Valve (2 Way Valve) VXA

• For air, water, oil, steam
• Manifold type no.: VVX31, VVX32, VVX33

Features | Direct Air Operated 3-Port Valve VXA3

• For Air, Vacuum, Water, Oil
• Manifold type no.: VVXA31, VVXA32
