SMC - Speed Controllers with Special Functions
Speed Controllers with Special Functions
มีทั้งหมด 5 รุ่น คือ
1) Speed Controller with Residual Pressure Release Valve AS
Features | Speed Controller with Residual Pressure Release Valve AS
- Integrated speed controller and residual pressure release valve
- Residual pressure can be easily released with the push of a button.
- Eye-catching red release button
- Available with a restrictor (Made to order: -X214, -X21)
Specifications | Speed Controller with Residual Pressure Release Valve AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. |
|---|---|---|---|
| With One-touch fittings, Elbow/Universal type | AS□□□1FE | 1/8 to 1/2 | φ4 to φ12 |
| Metal body, In-line type | AS□000E | 1/8 to 1/2 | - |
2) Speed Controller with Pilot Check Valve ASP
Features | Speed Controller with Pilot Check Valve ASP
- Integrated pilot check valve and speed controller
- Realizes momentary intermediate stoppage of a cylinder and is able to adjust its speed
Specifications | Speed Controller with Pilot Check Valve ASP
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Speed controller with pilot check valve |
ASP | 1/8 to 1/2 | φ6 to φ12 | φ1/4" to φ1/2" |
3) Speed Exhaust Controller with One-touch Fitting Compact Type JASV
Features | Speed Exhaust Controller with One-touch Fitting Compact Type JASV
- Quick exhaust valve and metering valve are integrated.
- Compact type Height: 12.7 mm shorter (49% reduction)
- Effective in preventing condensation
- Applicable for high-speed cylinder actuation
- Push-lock type
Specifications | Speed Exhaust Controller with One-touch Fitting Compact Type JASV
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Speed Exhaust Controller | JASV | M3×0.5 M5×0.8 10-32UNF R, NPT, G 1/8 |
φ3.2 to φ6 | φ1/8" to φ1/4" |
4) Speed Exhaust Controller ASV
Features | Speed Exhaust Controller ASV
- Integrated quick exhaust valve and exhaust throttle valve
- Supports the high speed operation of cylinders
Specifications | Speed Exhaust Controller ASV
| Type | Series | Port size |
|---|---|---|
| Speed exhaust controller | ASV120F/220F | M3, M5 |
| Speed exhaust controller | ASV310F/410F/510F | 1/8 to 1/2 |

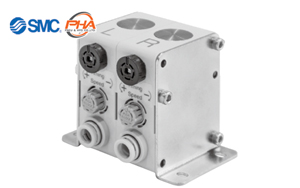

5) Deceleration Controller DAS-X946
Features | Deceleration Controller DAS-X946
- 2-speed control reduces cycle time
- Allows for the impact relaxation of the stroke end Provides impact relaxation in cases where it is difficult to install a shock absorber, etc.
- Can be easily introduced to existing equipment due to installation between the valve and cylinder
- No fluctuation effect on the supply pressure
- Application example: For the relaxation of impact when opening/closing the door
Specifications | Deceleration Controller DAS-X946
| Type | Series | Port size | Target cylinder area |
|---|---|---|---|
| Deceleration Controller | DAS-X946 | φ6 | Bore size: φ10 to φ40 Stroke: From 150 mm |
