Speed Controllers for General Purposes
มีทั้งหมด 17 รุ่น คือ
- Elbow Type / Universal Type / Push-lock Type AS
- Speed Controller with One-touch Fitting Compact Type JAS
- Speed Controller with Indicator AS-FS
- Elbow Type / Universal Type AS
- Plug-in Type AS
- In-line Type AS (lightweight 27%)
- In-line Type AS (lightweight 30%)
- Speed Controller with Indicator / In-line Type AS-FS
- In-line Panel Mount Type AS
1) Elbow Type / Universal Type / Push-lock Type AS
Features | Elbow Type / Universal Type / Push-lock Type AS
- Easy to lock push-lock type
- Larger knob
- Improved tube insertion / removal
- Insertion force: Max. 30% (8 N) reduction
- Removal force: Max. 20% (5 N) reduction*
- * Tube removal strength is ensured to be equivalent to the previous model.
- Electroless nickel plated type is standard.
- 360° swivel piping is possible. (Universal type)
- Available with a restrictor (Made to order: -X214, -X21)
- Large flow type (-X778)
Specifications | Elbow Type / Universal Type / Push-lock Type AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type | AS12□1F to 42□1F | M5 x 0.8 10-32UNF R, NPT, G 1/8 to 1/2 |
φ2 to φ16 | φ1/8" to φ1/2" |
| Universal type | AS13□1F to 43□1F | M5 x 0.8 10-32UNF R, NPT, G 1/8 to 1/2 |
φ3.2 to φ12 | φ1/8" to φ1/2" |
2) Speed Controller with One-touch Fitting Compact Type JAS
Features | Speed Controller with One-touch Fitting Compact Type JAS
- Height 12.7 mm, Height: 9.7 mm shorter (43.3% reduction) Possible to adjust flow rate even in a narrow space Easily mounted using a hexagon wrench
- Minimum operating pressure: 0.05 MPa
- Easy to use push-lock type
- Easier and consistent flow setting
Specifications | Speed Controller with One-touch Fitting Compact Type JAS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type | JAS | M3 x 0.5 M5 x 0.8 10-32UNF |
φ3.2 to φ4 to φ6 | φ1/8" to φ5/32" to φ1/4" |
3) Speed Controller with Indicator AS-FS
Features | Speed Controller with Indicator AS-FS
- The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors. The value can be controlled with the indicator window.
- Larger push-lock type knob
- Improved reproducibility of flow rate
- Easier to insert and remove tubes
- Electroless nickel plated type is standard.
- Available with a restrictor (Made to order: -X214, -X21)
Specifications | Speed Controller with Indicator AS-FS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type | AS12□1FS to 42□1FS | M5 x 0.8 10-32UNF R, NPT, G 1/8 to 1/2 |
φ2 to φ16 | φ1/8" to 1/2" |
| Universal type | AS13□1FS to 43□1FS | M5 x 0.8 10-32UNF R, NPT, G 1/8 to 1/2 |
φ3.2 to φ12 | φ1/8" to 1/2" |
4) Elbow Type / Universal Type AS
Features | Elbow Type / Universal Type AS
Available with a restrictor (Made to order: -X214, -X21)
ดาวน์โหลดไฟล์ PDFSpecifications | Elbow Type / Universal Type AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type | AS12□1F to 42□1F | M3 to 1/2 | φ2 to φ12 | φ1/8" to φ1/2" |
| Universal type | AS13□1F to 43□1F | M3 to 1/2 | φ2 to φ12 | φ1/8" to φ1/2" |
| Fixed orifice type | AS1201F to 22□1F-X250 | M3 to 1/4 | φ4, φ6 | - |
| Metal Knob Type | AS□2□1F-X242-J | M5 to 1/2 | φ4 to φ12 | - |

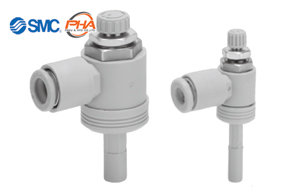

5) Plug-in Type AS
Features | Plug-in Type AS
- Can be mounted directly to One-touch fittings
- Since there is no need for tools, mounting time can be reduced.
Specifications | Plug-in Type AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. |
|---|---|---|---|
| Elbow type | AS10□0P to AS30□0P | φ4 to φ10 | φ4 to φ10 |
6) In-line Type AS
Features | In-line Type AS
- Reduces labor time
- Easy to use push-lock type
- Knob O.D.: Almost doubled
- Improved reproducibility of flow rate
- Lightweight: Weight reduced by approx. 27%
- Electroless nickel plated type is standard.
Specifications | In-line Type AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| In-line type | AS2002F to AS4002F | - | φ3.2 to φ12 | φ1/8" to φ1/2" |

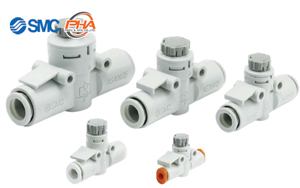

7) In-line Type AS
Features | In-line Type AS
- 4 types of mounting variations: Direct mounting, L-bracket mounting, DIN rail mounting, Holder mounting
- With index plate
- Lightweight: Weight reduced by 30% compared with the existing product (AS2002F-04)
- Available with a restrictor (Made to order: -X214, -X21)
Specifications | In-line Type AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| In-line type | AS1002F to AS4002F | - | φ2 to φ12 | φ1/8" to φ1/2" |
8) Speed Controller with Indicator / In-line Type AS-FS
Features | Speed Controller with Indicator / In-line Type AS-FS
- The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors. Flow rate can be controlled numerically with the indicator window. 4 indicator window directions are available.
- Larger push-lock type knob
- Improved reproducibility of flow rate
- Electroless nickel plated type is standard.
Specifications | Speed Controller with Indicator / In-line Type AS-FS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| In-line type | AS1002FS to AS4002FS | - | φ3.2 to φ12 | φ1/8" to φ1/2" |
9) In-line Panel Mount Type AS
Features | In-line Panel Mount Type AS
- Panel mount thickness: 35 mm at the maximum
- Available with a restrictor (Made to order: -X214, -X21)
Specifications | In-line Panel Mount Type AS
| Type | Series | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|
| Panel mount type | AS□□□1F-3 | φ3.2 to φ12 | φ1/8" to φ1/2" |
| Centralized piping type | AS-DPP00092/00093 | φ4, φ6 | - |
10) Uni Elbow Type / Universal Type / Push-lock Type AS
Features | Uni Elbow Type / Universal Type / Push-lock Type AS
- Easy to lock push-lock type
- Larger knob
- Improved tube insertion/removal Insertion force: Max. 30% (8 N) reduction Removal force: Max. 20% (5 N) reduction*
- Electroless nickel plated type is standard.
- 360° swivel piping is possible. (Universal type)
- * Tube removal strength is ensured to be equivalent to the previous model.
Specifications | Uni Elbow Type / Universal Type / Push-lock Type AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type Uni thread |
AS22□1F to 42□1F | Uni 1/8 to 1/2 | φ3.2 to φ16 | φ1/8" to φ1/2" |
| Universal type Uni thread |
AS23□1F to 43□1F | Uni 1/8 to 1/2 | φ3.2 to φ12 | φ1/8" to φ1/2" |

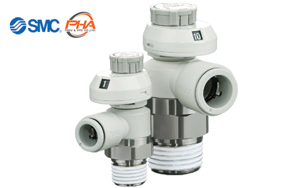

11) Speed Controller with Indicator / Uni Thread Type AS-FS
Features | Speed Controller with Indicator / Uni Thread Type AS-FS
- The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors. The value can be controlled with the indicator window.
- Larger push-lock type knob
- Improved reproducibility of flow rate
- Easier to insert and remove tubes
- Electroless nickel plated type is standard.
Specifications | Speed Controller with Indicator / Uni Thread Type AS-FS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Elbow type Uni threed |
AS22□1FS to 42□1FS | Uni 1/8 to 1/2 | φ3.2 to φ16 | φ1/8" to φ1/2" |
12) Speed Controller with Uni One-touch Fittings AS
Features | Speed Controller with Uni One-touch Fittings AS
- New thread for piping that reduces screw-in time by 1/3 with a gasket seal
- Compatible with Rc, G, NPT, and NPTF
Specifications | Speed Controller with Uni One-touch Fittings AS
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| With Uni One-touch fitting | AS□□□1F-U□ | 1/8 to 1/2 | φ3.2 to φ12 | φ1/8" to φ1/2" |
13) Dual Speed Controller ASD
Features | Dual Speed Controller ASD
- Enables bi-directional flow control with a speed controller (Meter-in and meter-out)
- Prevents cylinders from lurching
- Speed control of single acting cylinders
Specifications | Dual Speed Controller ASD
| Type | Series | Port size on the cylinder side | Applicable tubing O.D. Metric size | Applicable tubing O.D. Inch size |
|---|---|---|---|---|
| Dual speed controller |
ASD | M5 to 1/2 | φ4 to φ12 | φ1/8" to φ3/8" |

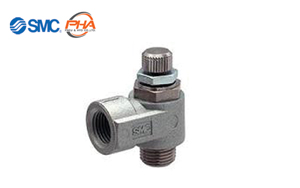

14) Elbow Type (Metal Body) AS
Features | Elbow Type (Metal Body) AS
Available with a restrictor (Made to order: -X214, -X21)
ดาวน์โหลดไฟล์ PDFSpecifications | Elbow Type (Metal Body) AS
| Type | Series | Port size on the cylinder side |
|---|---|---|
| Elbow type (Metal body) | AS12□0 to AS42□0 | M3 to 1/2 |
15) In-line Type AS
Features | In-line Type AS
Compact size saves space. Speed may be accurately controlled even at low speeds. Constant speed easily set. Retainer prevents an accidental loss of needle.
ดาวน์โหลดไฟล์ PDFSpecifications | In-line Type AS
| Type | Series | Port size on the cylinder side |
|---|---|---|
| In-line type | AS1000 to 5000 | M3 to 1/2 |
16) Large Flow In-line Type AS
Features | Large Flow In-line Type AS
Able to control and set a constant speed easily. Speed may be accurately controlled even at low speed. Retainer prevents accidental loss of needle.
ดาวน์โหลดไฟล์ PDFSpecifications | Large Flow In-line Type AS
| Type | Series | Port size on the cylinder side |
|---|---|---|
| Large flow in-line type | AS420 to 900 | 1/4 to 2 |
17) In-line Push Locking Type AS
Specifications | In-line Push Locking Type AS
| Type | Series | Port size on the cylinder side |
|---|---|---|
| In-line push locking type | AS3500 | 1/4, 3/8 |
