SMC - Speed Controllers Special Environments

Features | Stainless Steel Elbow Type / Universal Type / Push-lock Type AS-FG

• Stainless steel type
• Easy to lock push-lock type
• Larger knob
• Improved tube insertion / removal
  • Insertion force: Max. 30% (8 N) reduction
  • Removal force: Max. 20% (5 N) reduction*
  • * Tube removal strength is ensured to be equivalent to the previous model.
• 360° swivel piping is possible. (Universal type)
• Available with a restrictor (Made to order: -X214, -X21)

Features | Stainless Steel Type Speed Controller with Indicator AS-FSG

• Stainless steel type
• The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors. The value can be controlled with the indicator window.
• Larger push-lock type knob
• Improved reproducibility of flow rate
• Easier to insert and remove tubes
• Available with a restrictor (Made to order: -X214, -X21)

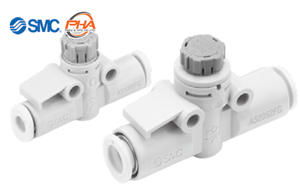

Features | Stainless Steel Type / In-line Type AS-FG

• Stainless steel type
• Reduces flow setting time Easy to use push-lock type Knob O.D.: Almost doubled
• Improved reproducibility of flow rate
• Lightweight: Weight reduced by approx. 27%

Features | Stainless Steel Type Speed Controller with Indicator / In-line Type AS-FSG

• Stainless steel type
• The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors.
• Flow rate can be controlled numerically with the indicator window.
• 4 indicator window directions are available.
• Larger push-lock type knob
• Improved reproducibility of flow rate

Features | Speed Controller Stainless Steel Series AS-FG

• Stainless specifications for use in corrosive environments
• Stainless steel 303 is used for metal parts.
• Available with a restrictor (Made to order: -X214, -X21)

Features | Flame Resistant Elbow Type AS

Flame resistant (Equivalent to UL94 Standard V-0)

Features | Flame Resistant (Equivalent to UL-94 Standard V-0) Speed Controller with One-touch Fittings / In-line Type AS-X900

Uses flame-resistant resin (Equivalent to UL-94 Standard V-0) Applicable tubing O.D.: ø6, ø8, ø10

Features | Metal Speed Controller with One-touch Fitting ASB

• Improved environmental resistance with the all metal exterior
• For use in environments with welding spatter, dust, ultraviolet, etc.
• Improved installability More space beneath the tube. Easier installation/removal of the tube
• Lightweight: Approx. 28% reduction (* 54 g → 39 g)

Features | Elbow Type (Metal Body) AS

• Uses flame resistant resin as standard. (Equivalent to UL-94 Standard V-0)
• Available with a restrictor (Made to order: -X214, -X21)

Features | Flame Resistant Flat Head Screwdriver Adjustable Speed Controller (Elbow Type) AS□2□1F-W2D

• Flame resistant resin (Equivalent to UL-94 Standard V-0)
• Flat head screwdriver adjustable Prevent accidental manual operation by making adjustments with a flat head screwdriver.
• Thread type: G thread

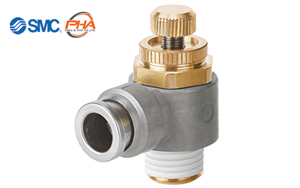

Features | All Metal Exterior Speed Controller with One-touch Fitting AS-X737

• Improved environmental resistance with an all metal exterior *
  • * Excluding the sealant
• Comes with a spatter cover Also available for the KQB2/KQG2 series

Features | Clean Speed Controller with One-touch Fitting AS-FPQ/FPG

• Low particle generation type speed controller suitable for use in clean rooms
  • AS-FPQ: Electroless nickel-plated brass
  • AS-FPG: Stainless steel 304
• AS-FPQ, AS-FPG: Polypropylene resin (Resin parts)
