Hiwin Single Axis Standard - LMSA

Hiwin Single Axis Standard - LMSA : Linear motor SA stages are equipped with ironcore motor(s) ...

Stage Single Axis Standard - LMSA

Hiwin Single Axis Standard - LMSA : well suited for applications that require point to point presicion positioning and larger pay load.

It offers larger continuous force, especially for larger force and fast applications
Stroke range up to 4m
Superior speed control characteristic
Low cost, small size, high perfomance
Suitable for clean rooms

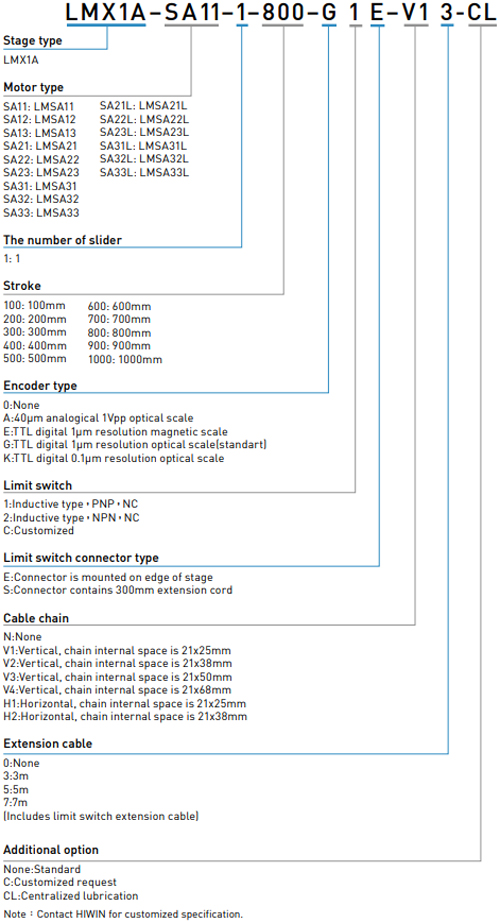

Code - Single Axis Standard - LMSA

Model	SA11	SA12	SA13
Continuous force, F_c (N)	103	205	308
Peak force, F_P (N)	289	579	868
Stroke (mm)	100-1000(mm)
Resolution	0.1µm/1.0µm/Analog 1Vpp
Repeatability (µm)^*2	Digital µm encoder / Analog encoder: ±1
Repeatability (µm)^*2	Digital 0.1µm encoder : ±0.5
Accuracy (µm)^{*2, 3}	Digital µm encoder / Analog encoder: ±2
Accuracy (µm)^{*2, 3}	Digital 0.1µm encoder : ±1
Horizontal straightness (µm)	10/500 mm
Vertical straightness (µm)	20/500 mm
Moving mass (kg)	5	6	8
Loading capacity (kg)	10	20	30
