Hiwin Single Axis Standard - LMC : high-precision, high-speed stability Linear motor LMC stages equipped ...

Stage Single Axis Standard - LMC

Hiwin Single Axis Standard - LMC : with coreless motor(s) and well suited for applications that require precision positioning and constant velocity scanning motion.

ดาวน์โหลดไฟล์ PDF

Feature | Stage Single Axis Standard - LMC

• Max. acceleration 100 m/s² (no load).
• Length up to 4,000 mm.
• Max. peak force 724 N.
• Low cost,small size,high performance.
• Suitable for clean room.

---

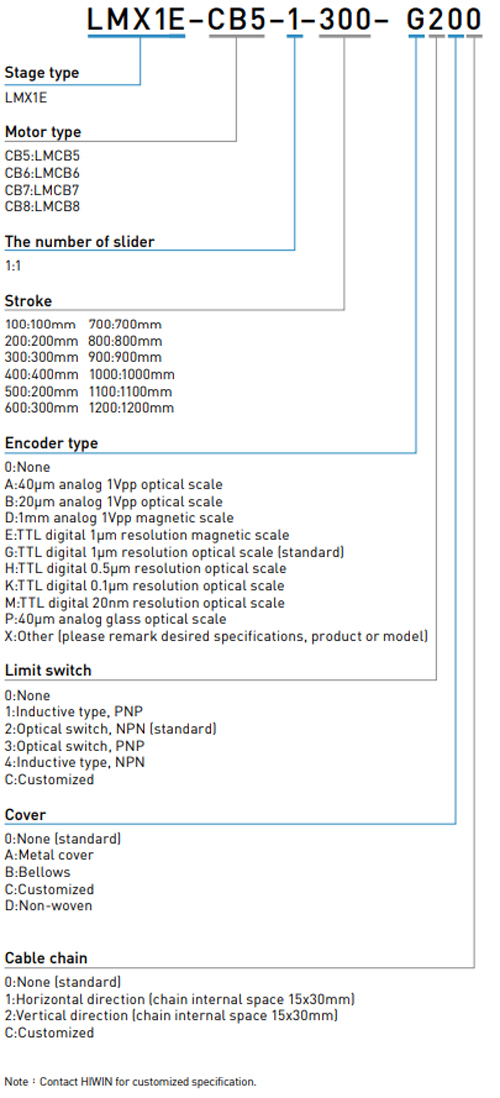

Code | Stage Single Axis Standard - LMC

---

Specifications | Stage Single Axis Standard - LMC

Model	CB5	CB6	CB7	CB8
Continuous force, Fc (N)	91	109	128	145
Peak force, FP (N)	364	436	512	580
Stroke (mm)	100-1200
Resolution	1.0µm
Repeatability (µm)*2	Stroke 100-1000 mm: ±1
	Stroke 1100/1200 mm: ±2
Accuracy (µm)*2, 3	Stroke 100-1000 mm: ±3
	Stroke 1100/1200 mm: ±8
Horizontal straightness (µm)	10/500 mm
Vertical straightness (µm)	20/500 mm
Moving mass (kg)	No cover: 2.1	No cover: 3.1	3.8	4.7
	With cover: 2.3	With cover: 3.3
