Stage Single Axis Customization - SLE

ดาวน์โหลดไฟล์ PDF

Feature | Stage Single Axis Customization - SLE

• Integration of high-precision torque motor.
• Precision compensation and angular positioning.
• Simple structure, wide range of applications.
• High stiffness extruded aluminum structure
• High-speed, point-to-point motion
• Can be quipment with ironless or ironcore motor.

---

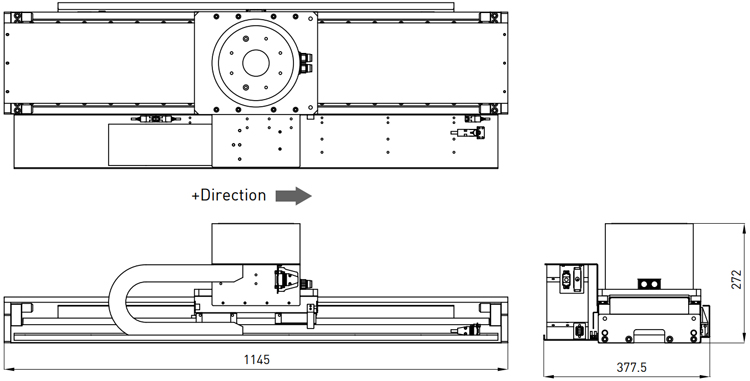

Dimensions | Stage Single Axis Customization - SLE

---

Specifications | Stage Single Axis Customization - SLE

Stage type	LMX1C-S47-1-700+TMS34
Motor Type	Ironcore(/Ironless) motor
Stroke (mm)	700
Peak Force(N)/Continuous Force(N)	1953/733
Repeatability(µm)	±1 (with HIWIN solution)
Accuracy(µm)	±3 (after error mapping)
Max. Acceleration (m/s2)	10(with payload)
Max. Velocity (m/s)	1 (with payload)
Payload (kg)	15
Stage orientation	Horizontal
Torque Motor Type	TMS34
Peak Torque(Nm)/Continuous Torque(Nm)	60/20
Max. Velocity(rpm)	500(220V)
Repeatability(arc-sec)	±2.5
Accuracy(arc-sec)	±25
Inertia of rotation parts(kgm2)	0.02

Note: All specifications can be designed according to customer demand.
