Feature | Stage Single Axis Customization - SBF

• Vertical applications.
• High load capacity of up to 200 kg.
• Linear feedback system can be applied, high positioning accuracy, zero backlash.

---

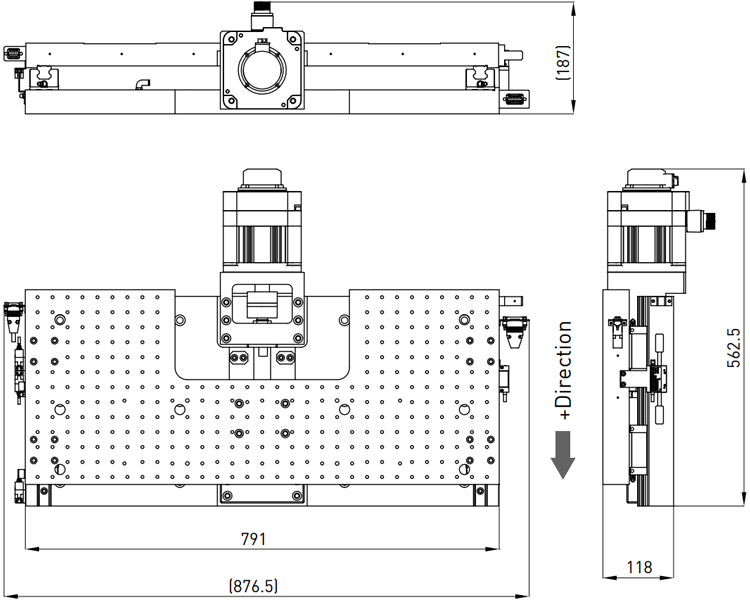

Dimensions | Stage Single Axis Customization - SBF

---

Specifications | Stage Single Axis Customization - SBF

Stage type	BS-2-50
Motor Type	HIWIN AC Servo motor
Stroke (mm)	50
Ball screw lead (mm)	2
Repeatability (µm)	±1 (with HIWIN solution)
Accuracy (µm)	±3 (after error mapping)
Max. Acceleration (m/s2)	2 (with payload)
Max. Velocity (m/s)	0.05 (with payload)
Horizontal Straightness (µm)	±2
Vertical Straightness (µm)	±10
Payload (kg)	200
Stage orientation	Vertical

*Note: all specifications can be designed according to customer demand.
