Stage Single Axis Customization - SBH

ดาวน์โหลดไฟล์ PDF

Feature | Stage Single Axis Customization - SBH

• High stiffness oblique wedge structure.
• Vertically precision positioning.
• High kiad capacity.
• Large installtion area, can be equipped with large-size vacuum chuck.

---

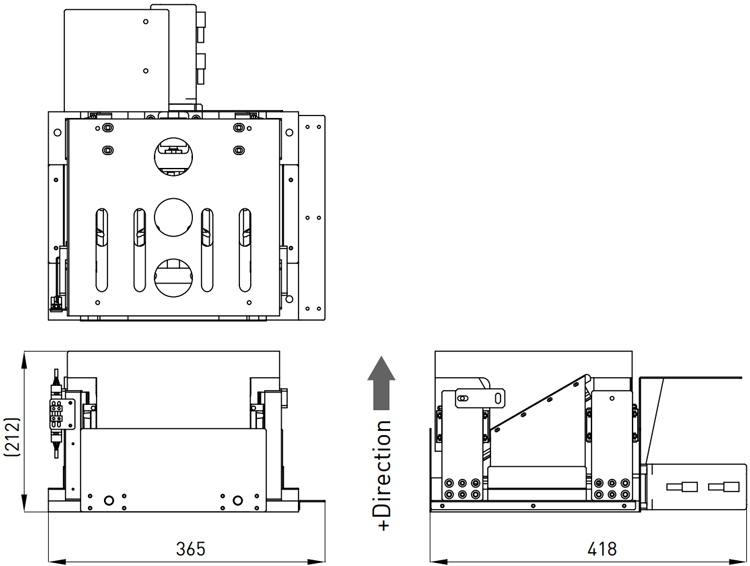

Dimensions | Stage Single Axis Customization - SBH

---

Specifications | Stage Single Axis Customization - SBH

Stage type	BS-2-12
Motor Type	HIWIN AC Servo Motor
Stroke (mm)	12
Ball screw lead (mm)	2
Repeatability (µm)	±2.5 (uni-directionm, with HIWIN solution)
Accuracy (µm)	±10 (uni-direction, after error mapping)
Max. Acceleration (m/s2)	Vertical : 0.5, Horizontal : 0.87 (with payload)
Max. Velocity (m/s)	Vertical : 0.02, Horizontal : 0.035 (with payload)
Payload (kg)	35
Stage orientation	Horizontal

Note: All specifications can be designed according to customer demand.
