SMC - Pressure Gauges
Pressure Gauges
มีทั้งหมด 8 รุ่น คือ
1) Pressure Gauge for General Purposes G□
Features | Pressure Gauge for General Purposes G□
Available with a limit indicator and color zones
ดาวน์โหลดไฟล์ PDFSpecifications | Pressure Gauge for General Purposes G□
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| G15 | φ15 | R1/8, M5 (Female thread) |
| G27 | φ27 | R1/8, 1/16 |
| G36 | φ37.5 | R1/8, M5 (Female thread) |
| GA36 | φ37.5 | R1/8 |
| G46 | φ42.5 | R1/8, 1/4, M5 (Female thread) |
| GA46 | φ42.5 | R1/8, 1/4 |
| G33 | φ30 | R1/8 |
| GA33 | φ30 | R1/8 |
| G43 | φ43 | R1/8, 1/4 |
| G36-L | φ37.5 | R1/8 |
| G46-L | φ42.5 | R1/8,1/4 |
| G53-L | φ51.4 | R1/8,1/4 |
| G63-L | φ63.4 | R1/8,1/4 |
2) Oil-free / External Parts Copper-free Pressure Gauge G46E
Features | Oil-free / External Parts Copper-free Pressure Gauge G46E
- Oil-free, external parts copper-free
- With limit indicator
Specifications | Oil-free / External Parts Copper-free Pressure Gauge G46E
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| G46E | φ42.5 | R1/8, 1/4 |
3) Pressure Gauge for Clean Series (10- Series) G49
Features | Pressure Gauge for Clean Series (10- Series) G49
For clean series (10- series)
ดาวน์โหลดไฟล์ PDFSpecifications | Pressure Gauge for Clean Series (10- Series) G49
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| G49 | φ44 | R1/4 |
4) Pressure Gauge for Clean Regulator G46-□-□-SRA/B
Features | Pressure Gauge for Clean Regulator G46-□-□-SRA/B
- For clean regulators
- With limit indicator
Specifications | Pressure Gauge for Clean Regulator G46-□-□-SRA/B
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| G46-□-□-SRA/B | φ42.5 | R1/8, 1/4 |
5) Pressure Gauge with Switch GP46
Features | Pressure Gauge with Switch GP46
A pressure switch function has been added to the gauge.
ดาวน์โหลดไฟล์ PDFSpecifications | Pressure Gauge with Switch GP46
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| GP46 | φ42.5 | R1/8, 1/4 |
6) Pressure Gauge for Vacuum GZ46
Features | Pressure Gauge for Vacuum GZ46
A pressure switch function has been added to the gauge.
ดาวน์โหลดไฟล์ PDFSpecifications | Pressure Gauge for Vacuum GZ46
| Series | Size (O.D.) | Connection thread |
|---|---|---|
| GZ46 | φ42.5 | R1/8, 1/4 |
7) Digital Pressure Sensor GS40
Features | Digital Pressure Sensor GS40
A pressure switch function has been added to the gauge with a digital display.
ดาวน์โหลดไฟล์ PDFSpecifications | Digital Pressure Sensor GS40
| Series | Set pressure (MPa) |
|---|---|
| GS40 | 0 to 0.98 |

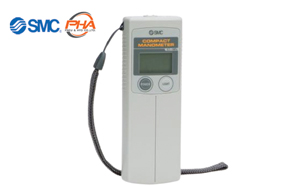

8) Compact Manometer PPA
Features | Compact Manometer PPA
Pressure measurements can easily be taken anytime, anywhere.
ดาวน์โหลดไฟล์ PDFSpecifications | Compact Manometer PPA
| Series | Set pressure | Applicable tubing size | Type |
|---|---|---|---|
| PPA100 | -0.1 to 1 MPa | φ4, φ6 | For high pressure |
| PPA101 | -101 to 10 kPa | φ4, φ6 | For vacuum |
| PPA102 | -10 to 100 kPa | φ4, φ6 | For low pressure |
