SMC - Blow Guns
Blow Guns
มีทั้งหมด 5 รุ่น คือ

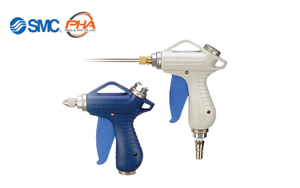

1) Blow Gun VMG
Features | Blow Gun VMG
- A 20% reduction in power consumption can be achieved with the SMC "Blow gun" + "S coupler" + "Coil tube."
- Pressure loss: 1% or less (Nozzle size: ø2.5)
- Available nozzles: Male thread nozzle, High efficiency nozzle with male thread, Low noise nozzle with male thread, Copper extension nozzle
- With flow rate adjustment function (-X54)
Specifications | Blow Gun VMG
| Series | Port size | Operating pressure range (MPa) | Effective area (mm2) | Nozzle port size |
|---|---|---|---|---|
| VMG | Rc, NPT, G 1/4, 3/8 |
0 to 10 | 30 | Rc1/4 |

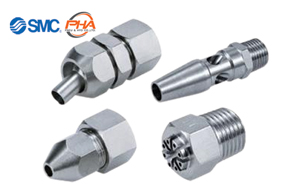

2) Nozzles for Blowing KN
Features | Nozzles for Blowing KN
- Applicable tubing material: Nylon, Soft nylon, Flexible copper pipe (C1220T-O), OST pipe
- Applicable tubing O.D.: ø4, ø6, ø8, ø10, ø12, ø16, ø20
- Fluid: Air, Coolant
Specifications | Nozzles for Blowing KN
| Series | Type | Nozzle size |
|---|---|---|
| KN | Nozzle with male thread | φ1 to φ8 |
| KN | High efficiency nozzle | φ1 to φ2 |
| KN | Low noise nozzle with male thread | φ0.75 x 4 to φ1.1 x 8 |
| KN | Copper extension nozzle | φ1.5 to φ3 |
| KN | Pivoting nozzle | φ4, φ6 |
| KN | Nozzle with self-align fitting | φ1 to φ6 |
| KN | Nozzle for One-touch fitting | φ1 to φ3 |

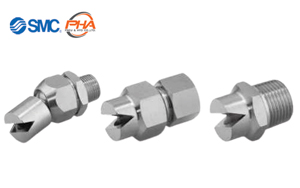

3) Wide Angle Blow Nozzle IN-225
Features | Wide Angle Blow Nozzle IN-225
Capable of spraying a wide area with fluid Spray angle: Approx. 100°
ดาวน์โหลดไฟล์ PDFSpecifications | Wide Angle Blow Nozzle IN-225
| Series | Type | Nozzle size |
|---|---|---|
| IN-225-1054 | Nozzle with male thread | φ6 equivalent |
| IN-225-1056 IN-225-1057 IN-225-1059 |
Nozzle with self-align fitting | φ6 equivalent |
| IN-225-1104 | Pivot nozzle with male thread | φ6 equivalent |

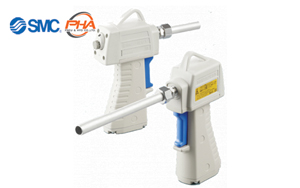

4) Air Saving Impact Blow Gun IBG
Features | Air Saving Impact Blow Gun IBG
- Increased impact force due to higher peak pressure Drastic reduction in air consumption and labor time
- Application: It is capable of eliminating, in a short period of time, the dust, etc., that is difficult to remove with the existing blow gun.
- Long nozzle, Long nozzle with a silencer, Chip guard
- Compliant with OSHA Standards (U.S. Standards)
Specifications | Air Saving Impact Blow Gun IBG
| Series | Fluid | Max. operating pressure | Operational force |
|---|---|---|---|
| IBG | Air | 0.7 MPa | 10 N or less |

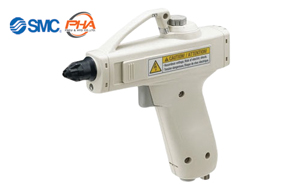

5) Gun Type Ionizer IZG10
Features | Gun Type Ionizer IZG10
- Lightweight: Only 200 g (Body weight)
- Reduced operating force, Easy to hold grip
- Lighting LED
- Blow setting function Select from continuous blow or pulse blow.
- Rapid static neutralization: 0.3 s (Distance: 150 mm, Operating pressure: 0.2 MPa)
Specifications | Gun Type Ionizer IZG10
| Series | Ion generation method | Offset voltage (Ion balance) |
|---|---|---|
| IZG10 | Corona discharge type | Within ±10 V |
